Features

  • 300W
  • Dimensions(mm): 190 x 100 x 40
  • Application: For IPC
  • ATX 12V / EPS 12V
  • PFC: Active
  • Voltage: 90 to 264 VAC
  • Frequency: 47Hz to 63Hz

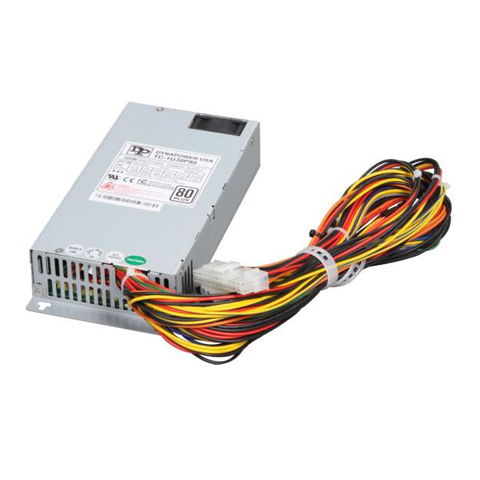

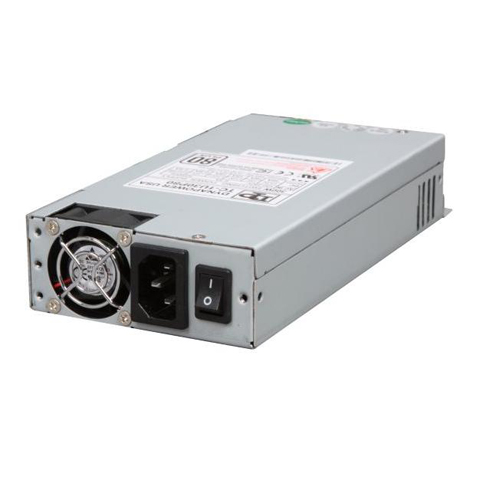

1U Power Supply 80Plus 300W TC-1U30P80 Product Description

The 1U Power Supply 80Plus 300W TC-1U30P80 is the perfect upgrade or replacement for powering an AMD or Intel based server. Ideal for 2U or 3U server cases, this 2U power supply provides your system with a 80 Plus certified power solution, as well as protection against over load, over voltage and over current situations – the perfect solution for delivering stable power to the most demanding devices. The 300W power supply also comes with a built-in, ball-bearing fan that helps provide superior air flow, ensuring optimum operating temperatures for long-lasting performance.

INPUT SPECIFICATIONS
Input voltage: 90 ~ 264 VAC
Input frequency: 47 ~ 63 Hz

PROTECTIONS
Over voltage protection
Short circuit protection

GENERAL SPECIFICATIONS
Hold-up time: 16 msec (minimum) at 80% of full load at 115Vac input.
Efficiency: 80% (min.) at 20%,50%,100% loading line input
MTBF: 100,000 hours

ENVIRONMENTAL SPECIFICATIONS
Operating temperature
: 0˚C to +50˚C
Storage temperature: -20˚C to +80˚C
Relative humidity: 95% non-condensing

DC OUTPUTS

OUTPUT VOLTAGE OUTPUT CURRENT REGULATION OUTPUT
MIN
MAX
LOAD LINE RIPPLE & NOISE
MAX. [P-P]
+5VSB 0 2.5A ±5% ±1% 50mv
-12V 0 0.8A ±10% ±1% 120mV
+12V1 1A 18A ±4% ±1% 120mV
+12V2 0.5A 18A ±4% ±1% 120mV
+5V 0.5A 16A ±4% ±1% 50mV
+3.3V 1A 16A ±4% ±1% 50mV

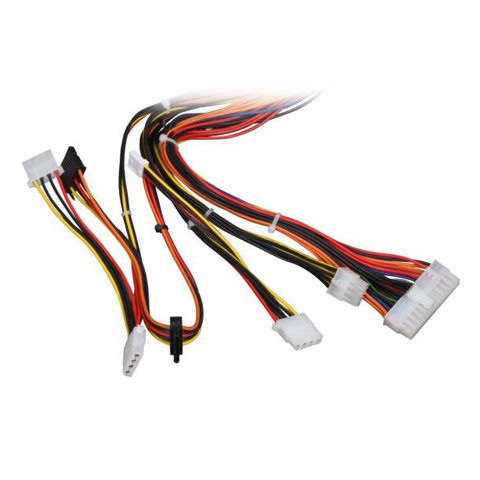

Connectors:

20-4
SATA
FDD
peripheralx3
8-Pin
20+4 Pin SATA
FDD Peripheral 4+4 Pin
X 1 X 2 X 1 >X 3 X 1
