• Chassis Height: 1U
  • Dimensions: 19″ x 1.75″ x 25.6″
  • Dimensions(mm): 483 x 44 x 650
  • Drive Bays: 1x Slim CD-ROM & 1x Slim FDD & 4x 3.5″Swappable Trays
  • Power Supply: 1U Redundant up to 400W ATX P/S

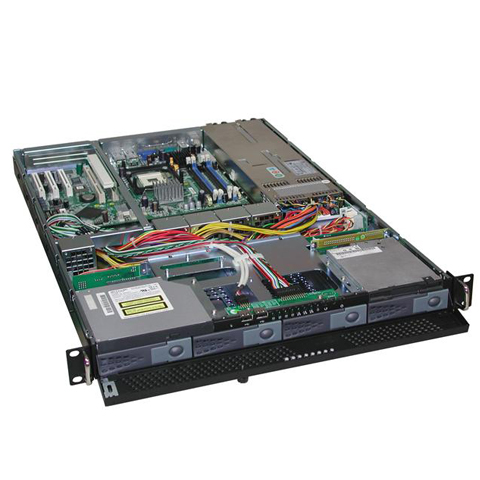

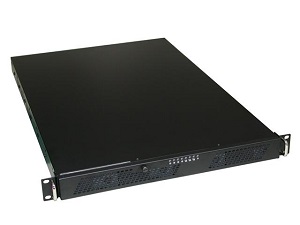

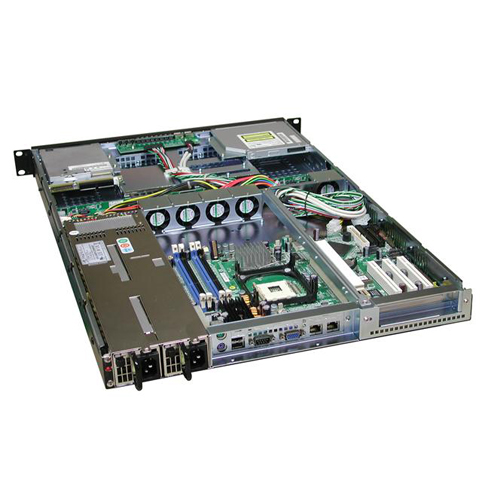

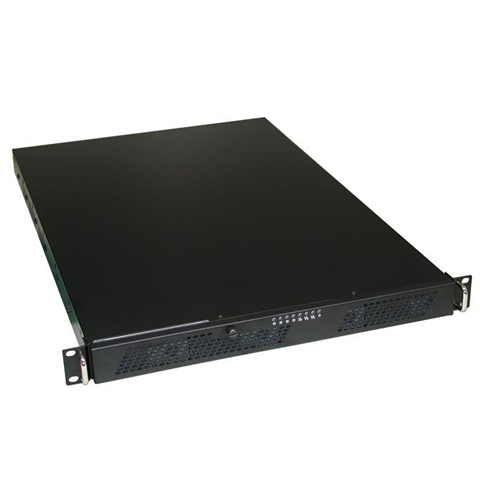

1U Rackmount Chassis EJ-1U6506 Product Description

The 1U Rackmount Chassis EJ-1U6506 feature the standard EIA RS-310C 19″ chassis’ which will meet all of your computing needs while optimizing the space on your rack. This sleek and rigid 1U chassis has a unique thermal cooling design that includes a front cold air intake tunnel and six cooling fans so the system stays cool while running at optimal levels. The EJ-1U6506 suppoerts Core i, Core2Duo, Core2Quad, Pentium, Dual Xeon, AMD 64, Dual Opteron, and Athlon system boards.

Standard:EIA RS-310C 19″ Rackmount Standard
Construction:Heavy Duty Cold Rolled Electroplated Steel
Color:Black (Standard), Beige or Custom
Max. Board Size:EATX (12″ x 13″)
System Board Type:Core i, Core2Duo, Core2Quad, Pentium, Dual Xeon, AMD 64, Dual Opteron, Athlon
Drive Bays:1 x Slim CD-ROM & 1 x Slim FDD & 4 x 3.5″ Swappable Trays
Power Supply:1U Redundant up to 400W ATX P/S (Rear Installation)
Cooling Units:5 x (40 x 28mm = 15.3CFM ea.) Fans
Expansion Slot:1 x Horizontal PCI Slot
Connector Port (front):2 x USB Ports
Buttons:Power ON/OFF Momentary (Pushbutton), System Reset
Thermal Card:NA
Front Door(s):Single Door With 1 Thumbscrew
Air Filter:None
Dimensions(W x H x D):483 x 44 x 650 mm (19″ x 1.7″ x 25.6″)
Weight:12.8 kgs / 28.2 lbs
Carton Size:59.4 x 18.2 x 81.8 (23.4″ x 7.2″ x 32.2″)
Humidity:5% – 95% Non-condensing
