Features

  • Chassis Height: 1U
  • Dimensions: 19″ x 1.75″ x 25.6″
  • Dimensions(mm): 483 x 44 x 650
  • Drive Bays: 1 x 5.25″ CD-ROM, 2 x 3.5″ Swappable HDD Trays
  • Power Supply: 1U Single ATX Power Supply (Optional)

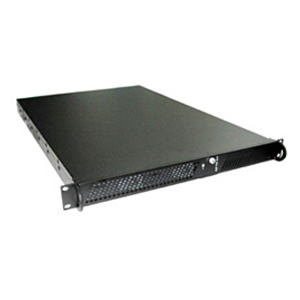

1U Rackmount Chassis EJ-1U653-C Product Description

The 1U Rackmount Chassis EJ-1U653-C feature the standard EIA RS-310C 19″ chassis’ which will meet all of your computing needs while optimizing the space on your rack. This sleek and rigid 1U chassis has a unique thermal cooling design that includes a front cold air intake tunnel and six cooling fans so the system stays cool while running at optimal levels. The EJ-1U653-C can be used to host a web server, as a print server, and function as a high-end workstation.

Drive Bays 1 x 5.25″ & 2 x 3.5″ Swappable HDD Trays (IDE/PATA, SATA, or SCSI 320)
Dimensions 483(W) x 44(H) x 650(D) mm (19″ x 1.7″ x 25.6″)
Power Supply (Mid Chassis Installation) 1U 250~400W ATX Power (Optional)
Cooling Units 6 x 40 mm Ball Bearing Fans, 15CFM/Each
Construction Heavy Duty Cold Rolled Electroplated Steel
Color Black, Beige
System Boards Dual Xeon, Pentium 4, Dual Pentium III based boards
Motherboard Support ATX M/B (Max. 12″ x 13″ EEB)
Extension Port (Front) 2 x USB
Expansion Slot 1 Horizontal PCI Slot
Indicators LED for Power & HDD Activity
Buttons Power On/Off & System Reset
Weight 15 kgs / 33.08 lbs
Cu. ft. 3.1
Carton Size 23.4″ x 7.2″ x 32.2″ (59.4 x 18.2 x 81.8cm)
Product Application Web Server, File Server, High-End Workstation, Print Server
