Features

  • Chassis Height: 3U
  • Dimensions: 19″ x 5.2″ x 20.7″
  • Dimensions(mm): 483 x 133 x 526
  • Drive Bays: 2 x 5.25″, 1 x 3.5″ FDD, 5 x 3.5″ Hidden
  • Power Supply: PS2 Single or Redundant Power with 200mm Depth

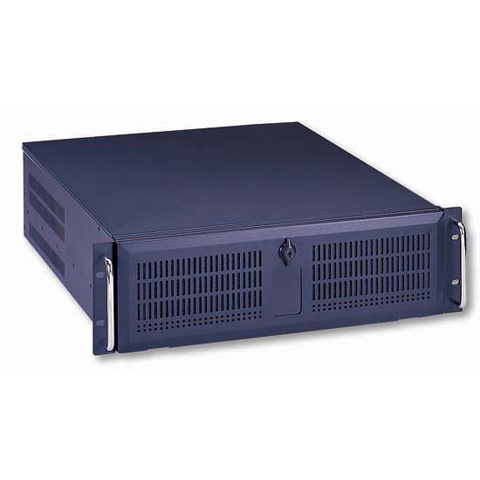

3U Rackmount Case EJ-3U528-C Product Description

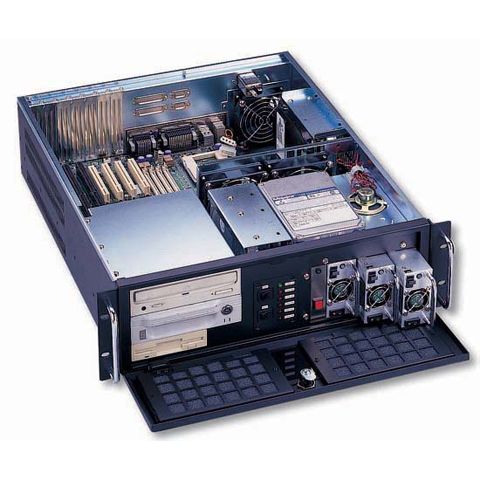

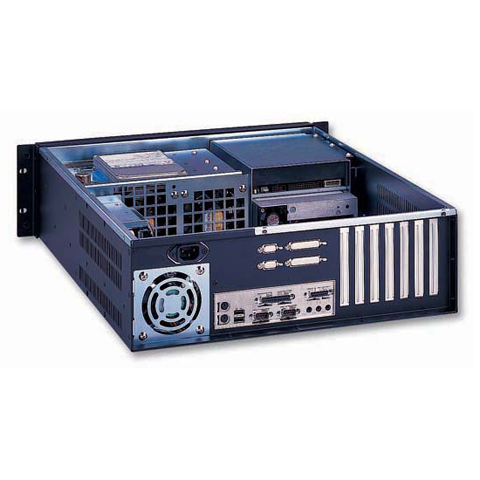

The 3U Rackmount Case EJ-3U528-C feature the standard EIA RS-310C 19″ chassis’ which will meet all of your computing needs while optimizing the space on your rack. This sleek and rigid 3U chassis has a unique thermal cooling design that includes a front cold air intake tunnel and three cooling fans so the system stays cool while running at optimal levels. The EJ-3U528-C can be used as a web server, email server, file server, print server, or as a high-end workstation. The chassis also supports Dual Xeon and Dual Opteron based system boards.

Drive Bays 2 x 5.25″, 1 x 3.5″ FDD, 5 x 3.5″ Hidden
Dimensions 483(W) x 133(H) x 526(D) mm (19″ x 5.2″ x 20.7″)
Power Supply (Front Chassis Installation) PS2 Single or Redundant Power with 200mm Depth (Optional)
Cooling Units 2 x (90mm = 51CFM ea.) 1 x (80mm = 42.5) Heavy Duty Ball Bearing Fans
Construction Heavy Duty Cold Rolled Electroplated Steel
Color Black, Beige
System Boards Dual Xeon, Dual Opteron, Pentium 4 Dual Pentium III based boards
Motherboard Support ATX M/B (Max. to 12″ x 9.6″ ATX/Micro ATX)
Filter 2 x Removeable Door Filters for Cleaning
Expansion Slot 7 x Vertical PCI Slots
Indicators LEDs for Power & 5 x HDD Activity
Buttons Power On/Off & System Reset
Door(s) 1 x Front Door with Thumb Lock
Weight 15.5 kgs / 34.1 lbs
Cu. ft. 4.7
Carton Size 700 x 625 x 305 mm (27.6″ x 24.6″ x 12″)
Product Application Web Server, Email Server, RAID Server Proxy Server, High-End Workstation Print Server, File Server
