Features

  • Chassis Height: 3U
  • Dimensions: 19″ x 5.2″ x 25.6″)
  • Dimensions(mm): 483 x 133 x 650
  • Drive Bays: 2 x 5.25″ + 1 x 3.5″ open + 7 x 3.5″ hidden
  • Power Supply: 2U Single or Redundant Power

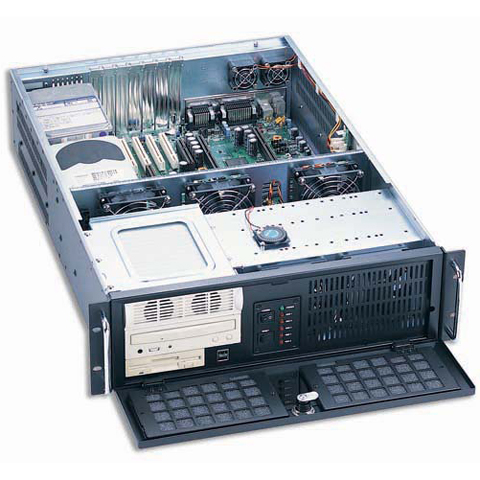

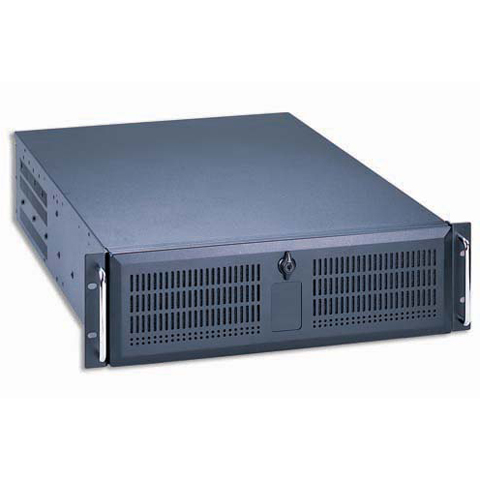

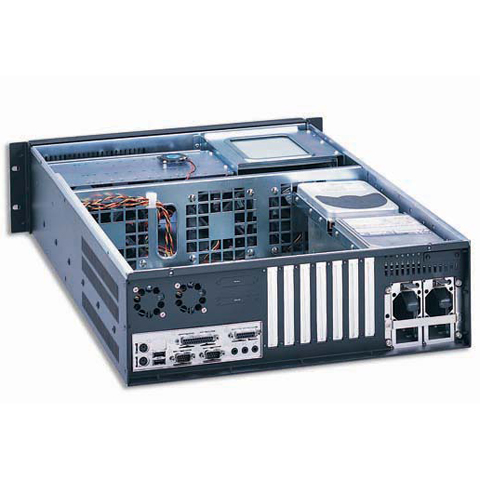

3U Rackmount Case EJ-3U6510-C Product Description

The 3U Rackmount Case EJ-3U6510-C feature the standard EIA RS-310C 19″ chassis’ which will meet all of your computing needs while optimizing the space on your rack. This sleek and rigid 3U chassis has a unique thermal cooling design that includes a front cold air intake tunnel and three cooling fans so the system stays cool while running at optimal levels. The EJ-3U6510-C can be used as web server, email server, RAID server, proxy server, print server, or as a high-end workstation. In addition, the chassis supports Dual Xeon, Dual Opteron, Pentium 4, and Dual Pentium III based system boards.

Drive Bays 2 x 5.25″ + 1 x 3.5″ open + 7 x 3.5″ hidden
Dimensions 483(W) x 133(H) x 650(D) mm (19″ x 5.2″ x 25.6″)
Power Supply (Rear Chassis Installation) 2U Single or Redundant Power with 200mm-300mm Depth (Optional)
Cooling Units 3 x 9 cm + optional 2 x 4 cm Heavy Duty Ball Bearing Fans
Construction Heavy Duty Cold Rolled Electroplated Steel
Color Black, Beige
System Boards Dual Xeon, Dual Opteron, Pentium 4 Dual Pentium III based boards
Motherboard Support ATX M/B (Max. to 12″ x 13″ EEB)
Filter 2 x Removeable Filters
Expansion Slot 7 x Full Length PCI Slots
Indicators LEDs for Power & 5 x HDD Activity
Buttons Power On/Off & System Reset
Door(s) 1 x Front Door with Thumbscrew Lock
Weight 13 kgs / 28.7 lbs
Cu. ft. 5.3
Carton Size 59.4(W) x 30.9(H) x 81.8(D)(Cm) (23.4″ x 12.2″ x 32.2″)
Product Application Web Server, Email Server, RAID Server Proxy Server, High-End Workstation Print Server, File Server
