• Chassis Height: 3U
  • Dimensions: 26.7″ x 16.9″ x 5.2″
  • Dimensions(mm): 680 x 430 x 132
  • Drive Bays: 1 x Slim CD-ROM, 16 x 3.5”/2.5” HDD
  • Power Supply: PS2 / Redundant2+1 / Mini Redundant 1+1

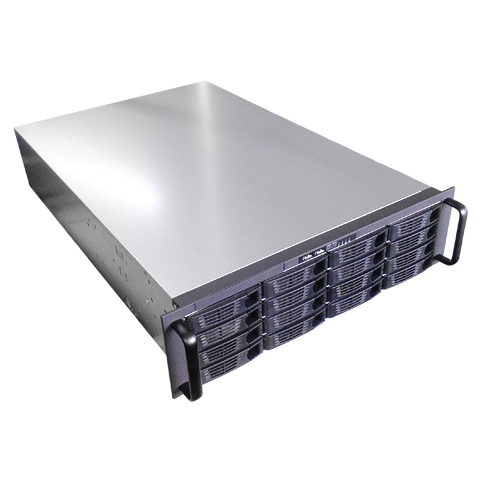

3U Rackmount Case EJ-R3316-01A Product Description

The 3U Rackmount Case EJ-R3316-01A which will meet all of your computing needs while optimizing the space on your rack. This sleek and rigid 3U chassis has a unique thermal cooling design that includes a front cold air intake tunnel and five cooling fans so the system stays cool while running at optimal levels. The EJ-R3316-01A can be used for security servers, VOD servers, web servers, as an online game server or a high server group. The front panel includes a power control button, a power indicator, an HDD and LAN activity indicator, and two 2.0 USB ports.

GeneralityMetal materialSGCC
Metal thickness1.2mm
Panel materialABS
M/B supportEEB (12″ * 13″) / CEB (12″ * 10.5″) / ATX
CPUDP Xeon(Intel) / DP Opteron(AMD) / Core(Intel)
SizeD*W*H(mm)680 * 430 * 132
D*W*H(inch)26.7″ * 16.9″ * 5.2″
Drive Bay3.5”/2.5”HDD16 (hot swap)
Slim CD-ROM1
Slim FDD0
Power supportPS2 / Redundant2+1 / Mini Redundant 1+1
Front panelControl buttonPower On/Off/Reset
IndicatorPower status / HDD Activity / Lan Activity
I/O portsUSB(2.0 * 2)

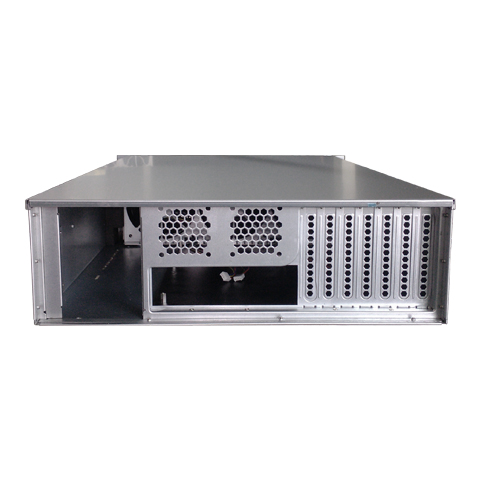

ExpansionSwitchable rear door
7 slots
Riser card (optional)
Backplane4 (Mini-SAS)

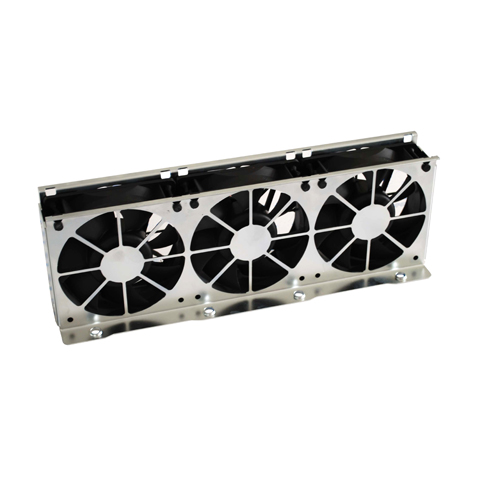

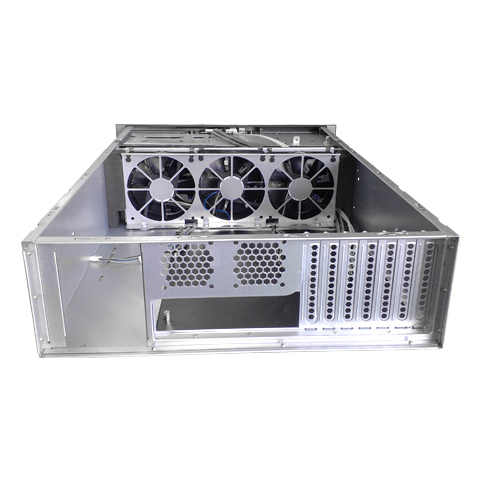

System coolingMiddle3 * 12038 (5000r/m)
Rear2 * 6025 (5000r/m) (Optional)
Applications1.Security servers, VOD servers
2.Web servers(website/email/fire wall/VPN/storage)
3.Online game server(DB/Game/Gate/Log-in/web/SQL)
4.High server group
5.NAS and SAN
