Features

  • Chassis Height: 3U
  • Dimensions: 483 x 133 x 524 mm (19.0″ x 5.25″ x 20.6″)
  • Drive Bays: 2 x 5.25″ CD-ROM, 1 x 3.5” FDD & 3 x 3.5″ HDD
  • Power Supply: 2U Single up to 600W or 2U Redundant up to 500W ATX P/S

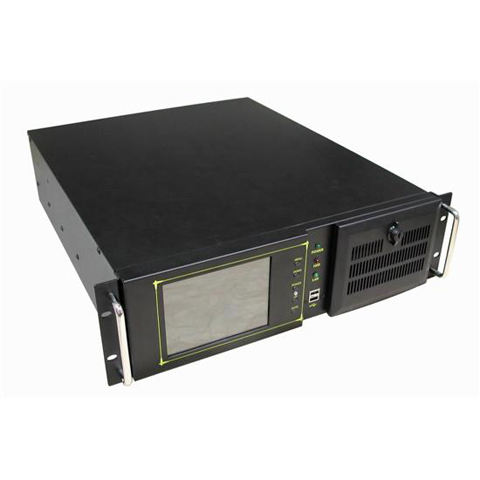

3U Rackmount Chassis EJ-3U526LCD6 Product Description

The 3U Rackmount Chassis EJ-3U526LCD6 feature the standard EIA RS-310C 19″ chassis’ which will meet all of your computing needs while optimizing the space on your rack. This sleek and rigid 3U chassis has a unique thermal cooling design that includes a front cold air intake tunnel and 4 cooling fans so the system stays cool while running at optimal levels. The EJ-3U526LCD6 can be used for broadcasting or for post production work. In addition, the chassis features a 6.4″ LCD Digital Panel with touch screen. It supports Pentium 4, Dual Xeon, Athlon 64, and Dual Opteron system boards.

Construction:Heavy Duty Cold Rolled Electroplated Steel
Color:Black (Standard)
System Boards:Pentium 4, Dual Xeon, Athlon 64, Dual Opteron
Motherboard Size:Support ATX M/B (Max. to 12″ x 9.6″ ATX/Micro ATX)
Drive Bays:2 x 5.25″ CD-ROM, 1 x 3.5” FDD & 3 x 3.5″ HDD
Power Supply(Rear Chassis Installation) 2U Single up to 600W or 2U Redundant up to 500W ATX P/S (Optional) Max Depth 300mm
Cooling Units:2 x (60mm = 23.5CFM ea.) and 2 x (40mm = 7CFM ea.) Heavy Duty Ball Bearing Fans
Expansion Slot:7 x Vertical Full Length Slots
Connector Port (front):2 x USB Ports
Screen:6.4″ LCD (640 x 480 pixels) Digital TFT Panel with Touch Screen
Display Colors:262, 144 Colors
Indicators:LEDs for Power ON/OFF, HDD Activity, LAN
Switch:Power On/Off Momentary System Reset
Dimensions
(W x H x D):
483 x 133 x 524mm (19.0″ x 5.25″ x 20.6″)
Humidity:5% – 95% Non-condensing
Product Applications:Broadcasting; Post Production
