Features

  • Chassis Height: 3U
  • Dimensions: 19″ x 5.2″ x 25.6″
  • Drive Bays: 1x slim CDROM, 16x hot swap drive carrier
  • Power Supply: 2U Single up to 600W or 2U Redundant up to 500W ATX P/S

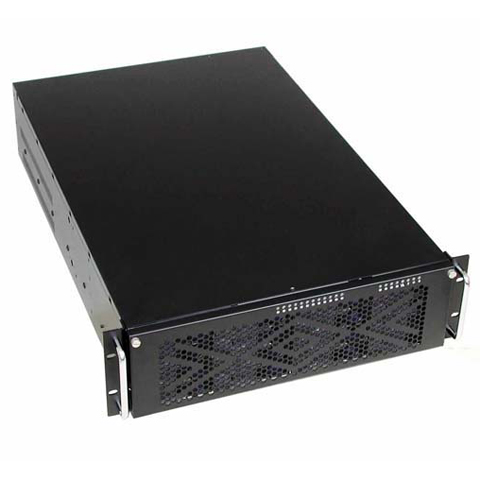

3U Rackmount Chassis EJ-3U6517-C Product Description

The 3U Rackmount Chassis EJ-3U6517-C feature the standard EIA RS-310C 19″ chassis’ which will meet all of your computing needs while optimizing the space on your rack. This sleek and rigid 3U chassis has a unique thermal cooling design that includes a front cold air intake tunnel and five cooling fans so the system stays cool while running at optimal levels. The EJ-3U6517-C can be used as a NAS, SAN, or file server. It also supports Pentium 4 and Dual Pentium III based system boards.

Drive Bays 1x slim CDROM, 16x hot swap drive carrier
Dimensions 19″ x 5.2″ x 25.6″
Power Supply (Rear Chassis Installation) 2U Single 600Watts or 2U Redundant Power 500Watts (Optional) Max Depth 300mm
Cooling Units 4x (92mm = 51CFM ea.), 1x (60mm = 23.5CFM ea.)
Heavy Duty Ball Bearing Fans
Construction Heavy Duty Cold Rolled Electroplated Steel
Motherboard Size Support ATX M/B (Max. 12″ x 13″ EEB)
System Board Pentium 4, Dual Pentium III based boards
Color Black (Standard), Beige or Custom
Expansion Slots 7 x Vertical Full Length PCI Slots
Weight 22.0kgs / 48.5lbs
Product Applications NAS, SAN, File Server
Indicators LED for Power & HDD Activity
Buttons Power On/Off, System Reset, & Buzzer Reset
Humidity: 5% – 95% Non-condensing
Thermal Management Card: Installed
