Features

  • Chassis Height: 3U
  • Dimensions: 19″ x 5.2″ x 22.1″
  • Dimensions(mm): 483 x 133 x 560
  • Drive Bays: 6x 5.25″CD-ROM & 1x 3.5″HDD
  • Power Supply: 2U Single or 3U Redundant up to 700W Max

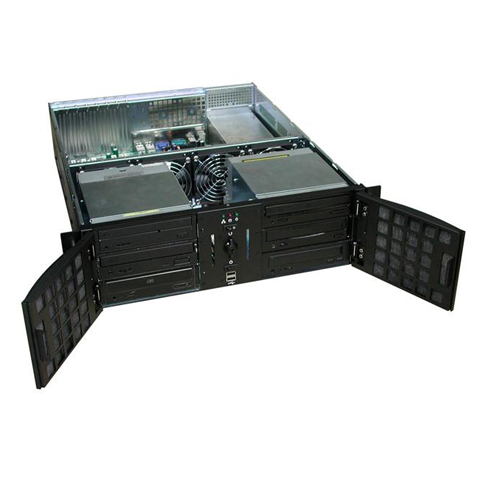

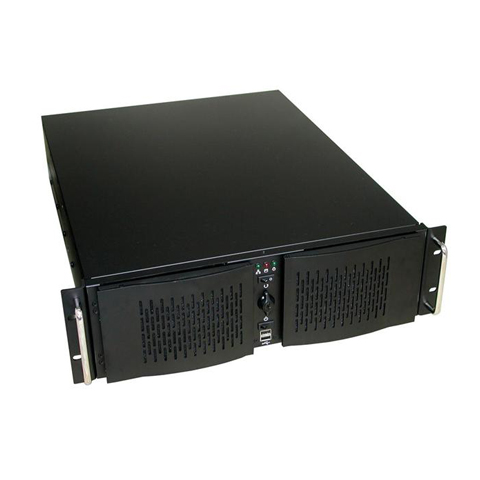

3U Rackmount Storage Chassis EJ-3U5607 Product Description

The 3U Rackmount Storage Chassis EJ-3U5607 feature the standard EIA RS-310C 19″ chassis’ which will meet all of your computing needs while optimizing the space on your rack. This sleek and rigid 3U chassis has a unique thermal cooling design that includes a front cold air intake tunnel and four cooling fans so the system stays cool while running at optimal levels. The EJ-3U5607 is available in black, beige, or custom colors. In addition, the chassis supports Core i, Core2Dup, Pentium, Dual Xeon, AMD 64, and other types of system boards.

Max. Board Size CEB (12″ x 10.5″)
System Board Type Core i, Core2Duo, Core2Quad, Pentium, Dual Xeon, AMD 64, Dual Opteron, Athlon
Standard EIA RS-310C 19″ Rackmount Standard
Construction Heavy Duty Cold Rolled Electroplated Steel
Color Black (Standard), Beige or Custom
Drive Bays 6x 5.25″CD-ROM & 1x 3.5″HDD
Power Supply 2U Single or 3U Redundant up to 700W Max. Depth 300mm

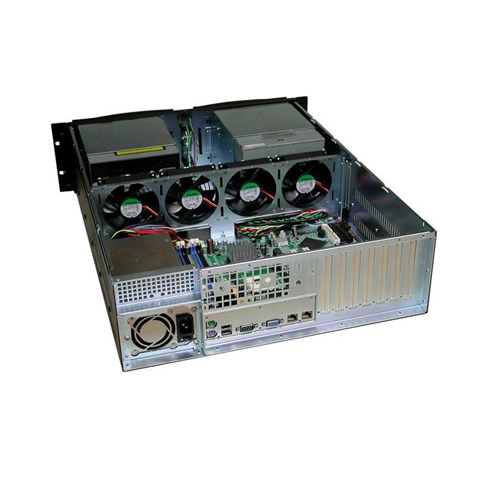

Cooling Units 4x (92mm = 51CFM ea.) & 2x (60mm = 23.5CFM ea.) (Optional) Fans
Expansion Slot 7 Slots
Connector Port (front) 2 x USB Ports
Buttons Power ON/OFF, System Reset
Front Door(s) Two Doors With 1 Keylock
Air Filter Inside Front Door (Washable)
Dimensions(W x H x D) 483 x 133 x 560mm (19″ x 5.2″ x 22.1″)
Weight 14.4 kgs / 31.8 lbs
Cu. ft. 3.4
Carton Size 70 x 24.2 x 56 (27.6″ x 9.5″ x 22.1″)
Humidity 5% – 95% Non-condensing
