Features

  • Chassis Height: 4U
  • Dimensions: 19″ x 7″ x 20.5″
  • Dimensions(mm): 483 x 178 x 490
  • EIA RS-310C 19″ Rackmount Standard
  • 20.5″ deep 4U chassis
  • Support 12″ x 10.5″ ATX motherboard
  • 1x 5.25″ Open Bay + 3 x 3.5″ HDD hot-swap trays

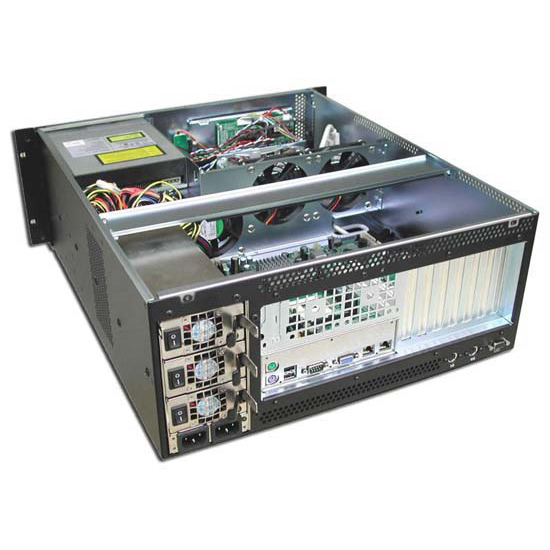

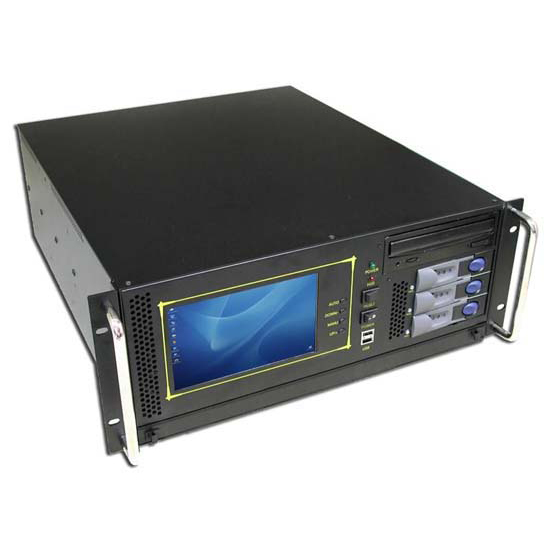

4U Rackmount Case EJ-4U513LCD7 Product Description

The 4U Rackmount Case EJ-4U513LCD7 offers great expand-ability and cooling capacity for your server computer. It supports a 12″ x 10.5″ ATX and smaller form factor motherboard. The EJ-4U513LCD7 also features a quality fan filter as well as 2x 92mm and 1x60mm cooling fan for optimum ventilation of the system.



Construction: Heavy Duty Cold Rolled Electroplated Steel
Color: Black (Standard)
System Boards: Pentium 4, Dual Xeon, AMD 64, Dual Opteron
Motherboard Size: Support ATX M/B (Max. to 12″ x 10.5″ CEB)
Drive Bays: 1 x 5.25″ Open Bay, 3 x hot-swappable 3.5″ HDD tray/carrier
Drive Interface: SATA2. (U320 SCSI/SCA, SAS Optional)
Power Supply: (Rear Chassis Installation) Single or Redundant PS2 size (Optional) Max Depth 300mm
Cooling Units: 2x 92mm = 51CFM ea & 1x60mm=23.5CFM and 2x (60mm = 23.5CFM ea. Optional) Heavy Duty Ball Bearing Fans
Expansion Slot: 7 x Vertical Full Length/Height PCI Slots
Connector Port (front): 2x USB Ports
Screen: 7.0″ LCD (800 x 480) with 5 button control and rear input
Indicators: LEDs for Power, HDD Activity
Buttons: Power On/Off Momentary Rocker Switch
Crossbar: PCI Spanner Bar

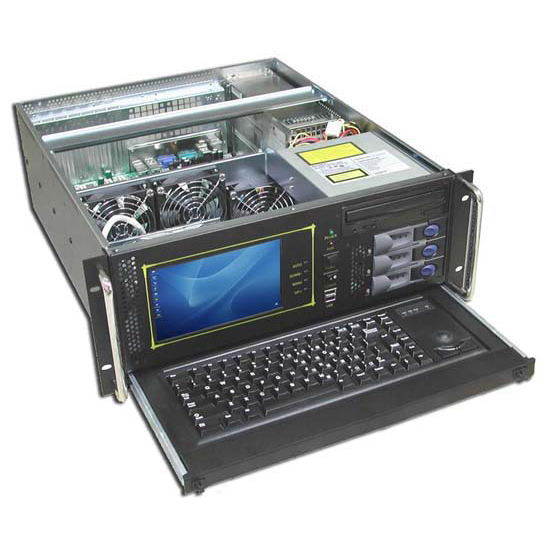

Keyboard: 84 key “Cherry” Keyboard that slides from the bottom of the chassis (rear connector)
Mouse: Logitech Trackball (rear connector)
Air Filter: Inside Front Door (Washable)
Dimensions
(W x H x D):
483 x 178 x 490mm (19″ x 7″ x 20.5″)
Weight: 21 Kgs//46.4lbs
Cu. ft.: 5.0
Carton Size: 24″ x 13.4″ x 26″
Humidity: 5% – 95% Non-condensing
Product Applications: Broadcasting; Post Production
Chassis Height: 4U
Dimensions: 19(w) x 7(h) x 20.5(d) – inches
482.6(w) x 177.8(h) x 520.7(d) – mm
Drive bays: 1x 5.25″ Open Bay + 3x Swappable 3.5″ HDD Tray/Carrier
Power supply: PS2 size Single or Redundant ATX Power Supply
