Features

  • Chassis Height: 4U
  • Dimensions: 19” x 7” x 26.4”
  • Dimensions(mm): 480(W) x 177H) x 671(D)
  • EIA RS-310C 19″ Rackmount Standard
  • 26.4″ deep 4U chassis
  • Support 12″ x 13″ ATX motherboard
  • 6x 5.25″ + 1x 3.5″ FDD open + 1x 3.35″ HDD (hidden)

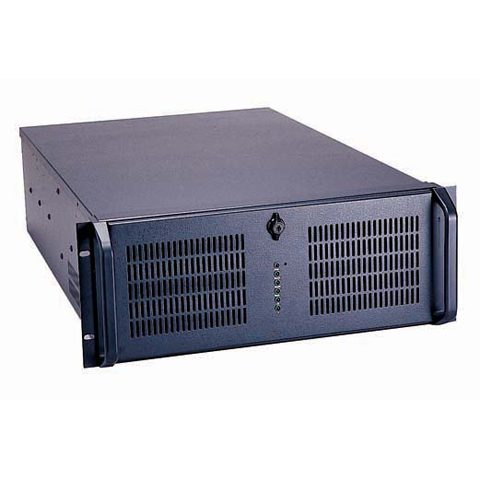

4U Rackmount Case EJ-4U6710-C Product Description

The 4U Rackmount Case EJ-4U6710-C offers great expand-ability and cooling capacity for your server computer. It supports a 12″ x 13″ ATX and smaller form factor motherboard. The EJ-4U6710-C also features a quality fan filter and 4x 9cm cooling fan for optimum ventilation of the system.

Standard:EIA RS-310C 19″ Rackmount Standard
Construction:Heavy Duty Cold Rolled Electroplated Steel
Color:Black, Beige, or Custom Design
System Boards:Dual Xeon, Pentium 4, Dual Pentium III based boards
Board Size :Support ATX M/B (Max. 12” x 13”); or support 14/15-slot Passive Backplane board.

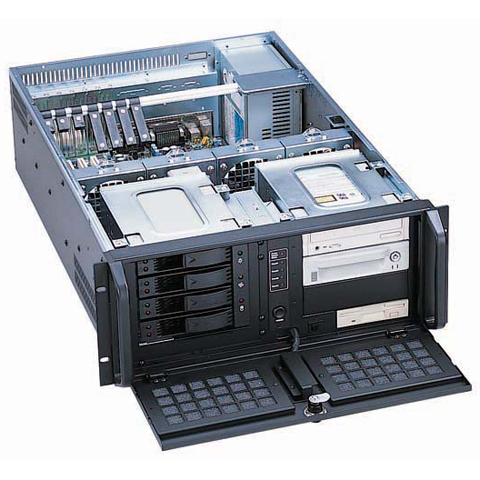

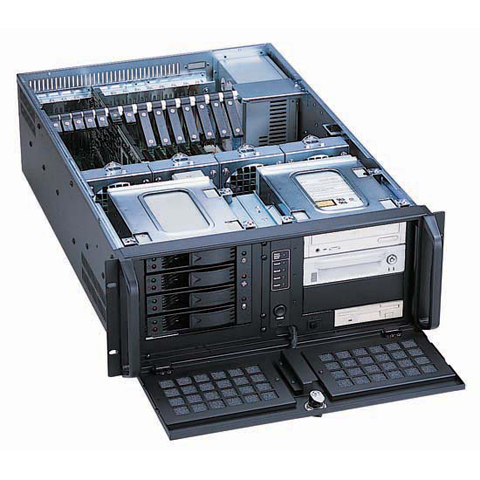

Drive Bays:6 x 5.25″ + 1 x 3.5″ FDD open, 1 x 3.35″ HDD (hidden). Optional extra bracket for 2 x 3.5″ HDD (hidden).

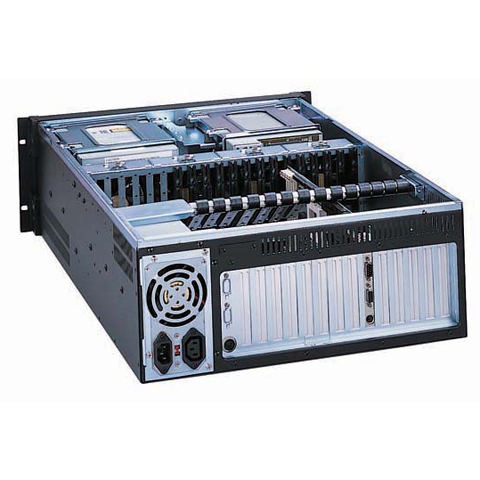

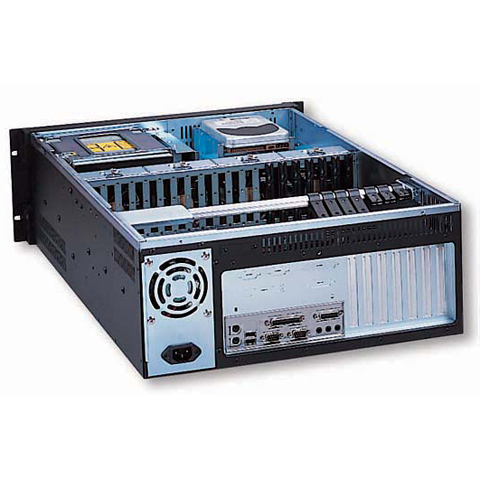

Power Supply:Single P/S2 or Mini-Redundant Power Supply.
Cooling Units:Hot-Swap 4 x 9 cm Ball Bearing Fans with 51 CFM/Each.
Expansion Slot:7-Slot or 14-Slot
Indicators:LED for Power & HDD Activity
Buttons:Power On/Off, Alarm & System Reset
Dimensions:480(W) x 177H) x 671(D) mm (19” x 7” x 26.4”)
Weight:24.5 kg /53.9 lbs
Cu. ft.:6.5
Carton Size:85x 62x 34.5 (Cm) (33.5″ x 24.4″ x 13.6″)
Product Applications:Web Server, Firewall Server, Proxy Server, VPN Gateway, High-End Workstation
