Features

  • Chassis Height: 4U
  • Dimensions: 19″(w) x 7″(h) x 11.9″(d)
  • Dimensions(mm): 482.6(w) x 177.8(h) x 302.26(d)
  • EIA RS-310C 19″ Rackmount Standard
  • 11.9″ deep 4U chassis
  • Drive bays: 2 x 5.25″ Open + 4 x 2.5″ HDD (Internal)
  • Power supply: PS/2 or Mini Redundant ATX PSU (Rear Installation)

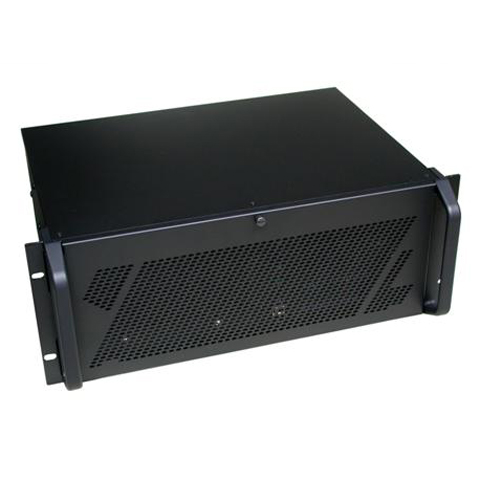

4U Rackmount Chassis EJ-4U306 Product Description

The 4U Rackmount Chassis EJ-4U306 offers great expand-ability and cooling capacity for your server computer. It supports a 9.6″ x 9.6″ ATX and smaller form factor motherboard. The EJ-4U306 also features a quality fan filter as well as 2 x 92 mm cooling fan for optimum ventilation of the system.

Construction: Heavy Duty Cold Rolled Electroplated Steel
Color: Black (Standard) or Custom
System Boards: C2D, Dual Xeon, Pentium 4, Athlon 64, Dual Opteron
Support Micro ATX (Max. to 9.6″ x 9.6″)
Support 14 Slot Half-Size Passive Backplane
Drive Capacity: 2 x 5.25″ & 4 x 2.5″ (Hidden)
Power Supply (Optional): PS/2 or Mini Redundant ATX PSU
Cooling: 2 x (92 mm = 51 CFM ea.) & 2 x (60 mm = 23.5 CFM ea.) Fans (Optional)
Connector Port (Front): 2 x USB Ports
Front Door: Single Door with 1 Thumbscrew
Air Filter: Inside Front Panel (Washable)
Indicators: LEDs for Power ON/OFF, HDD Activity
Switch: Power ON/OFF, System Reset
Dimensions (W x H x D): 483 x 177 x 302 mm (19″ x 7″ x 11.9″)
Cuft: 4.0
GW: 12.1 kgs / 26.7 lbs
Carton Size(cm): 60.5 x 34 x 54.5 (23.8″ x 13.4″ x 21.4″)
Humidity: 5% – 95% Non-condensing
