Features

  • Chassis Height: 4U
  • Dimensions: 19″ x 7″ x 26.4″
  • Dimensions(mm): 480(W) x 177(H) x 671(D)
  • EIA RS-310C 19″ Rackmount Standard
  • 26.4″ deep 4U chassis
  • Support 12″ x 13″ ATX motherboard
  • 3x 5.25″ + 1x 3.5″ FDD open + 2x 3.35″ HDD hidden

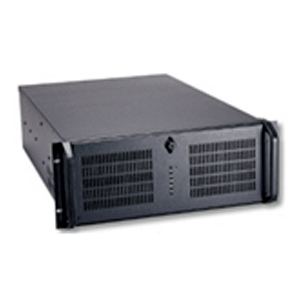

4U Rackmount Chassis EJ-4U676-C Product Description

The 4U Rackmount Chassis EJ-4U676-C offers great expand-ability and cooling capacity for your server computer. It supports a 12″ x 13″ ATX and smaller form factor motherboard. The EJ-4U676-C also features a quality fan filter and 4x 9cm cooling fan for optimum ventilation of the system.

Drive Bays 3 x 5.25″ + 1 x 3.5″ FDD open, 2 x 3.35″ HDD hidden. Optional extra 2 x 3.5″ HDD hidden
Dimensions 480(W) x 177(H) x 671(D) mm 19″ x 7″ x 26.4″
Power Supply Front or Rear Panel available for P/S2 or Mini redundant Power Supply. EJ-4U676SR (19 slot back panel)  can only fit front installed Power Supply.
Cooling Units Hot-Swap 4 x 9 cm Ball Bearing Fans with 51 CFM/Each, or optional 3 x 12 cm Ball Bearing fans with 90 CFM/Each.
Construction Heavy Duty Cold Rolled Electroplated Steel
Color Black, Beige
System Boards Dual Xeon, Pentium 4, Dual Pentium III based boards
Board Size Support ATX M/B (Max. 12″ x 13″ EEB) – EJ-4U676-C; or
Support 19-slot Passive Backplane board – EJ-4U676SR
Expansion Slot 7-Slot for EJ-4U676-C, or 19-Slot for EJ-4U676SR
Indicators LED for Power & HDD Activity
Buttons Power On/Off, Alarm & System Reset
Weight 24.5 kg / 53.9 lbs
Cu. ft. 6.5
Carton Size 85 x 62 x 34.5 (cm) (33.5″ x 24.4″ x 13.6″)
Product Application Web Server, Firewall Server, Proxy Server, VPN Gateway, High-End Workstation
