Features
  • Chassis Height: 2U
  • Dimensions: 19″ x 3.5″ x 22.4″
  • Dimensions (mm): 483 (W) x 88 (H) x 570 (D)
  • EIA RS-310C 19″ Rackmount Standard
  • 22.4″ deep 2U chassis
  • Support 12″ x 10.5″ ATX/ micro ATX motherboard
  • 4 x 5.25″ + 1 x 3.5″ open + 2 x 3.5″ hidden

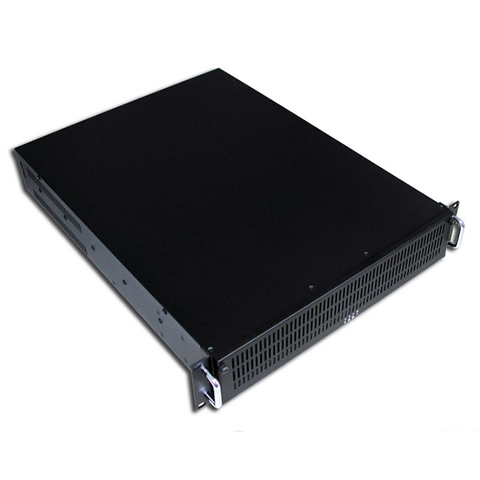

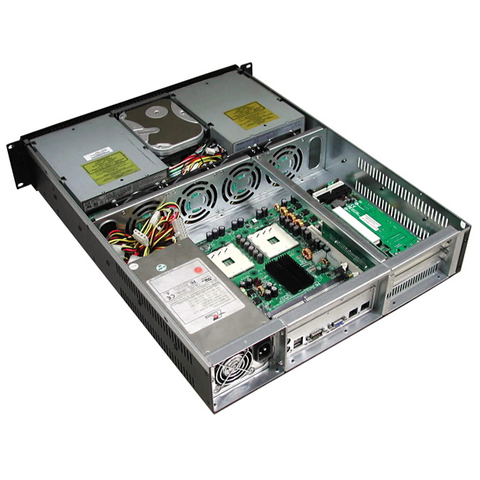

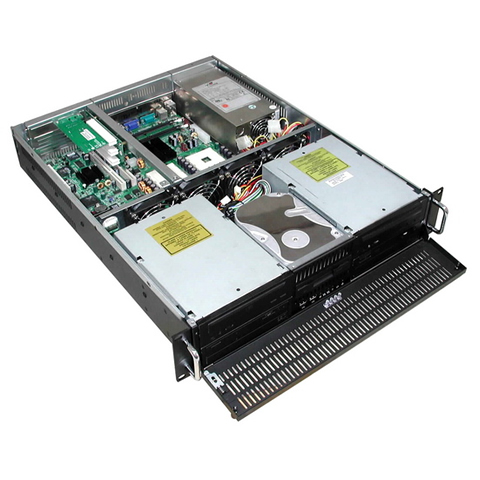

EJ-2U576-C 2U Rackmount Case Product Descriptions

The EJ-2U576-C 2U Rackmount Case offers great expand-ability and cooling capacity for your server computer. It supports a 12″ x 10.5″ ATX and smaller form factor motherboard. The EJ-2U576-C also features a quality fan filter and 4 x 80 cm cooling fan for optimum ventilation of the system.

StandardEIA RS-310C 19″ Rackmount Industrial Standard
ConstructionHeavy Duty Cold Rolled Electroplated Steel
ColorBlack Color
System BoardsDual Xeon, Pentium D, AMD 64 x 2, Dual Opteron
Motherboard SizeSupport ATX M/B (Max. 12” x 10.5”)
Drive Bays4 x 5.25″ + 1 x 3.5″ open + 2 x 3.5″ hidden
Power Supply(Rear Chassis Installation) 2U Single or 2U Redundant power supply (optional). PS Max. Depth 265mm
Cooling Units4 x 8 cm Ball Bearing Fans, 42.5 CFM/Each
Expansion Slot3 x Horizontal Slots via riser card (riser card not included)
Connection Port 2 x USB Ports in Front
IndicatorsLEDs for Power ON/OFF, HDD Activity & 2 x LAN Activity
Thermal Management CardNot Available
ButtonsPower On/Off, System Reset (Dimple Button)
Dimensions483 (W) x 88 (H) x 570 (D) mm (19″ x 3.5″ x 22.4″)
Cu. ft.2.9
Carton Size58.2 x 20.3 x 71.3 cm (22.1″ x 8.0″ x 28.1″)
Humidity5% – 95% Non-condensing
Product ApplicationsMultipurpose Server
