Features
  • Chassis Height: 2U
  • Dimensions: 19″ x 3.5″ x 25.6″
  • Dimensions (mm): 483 x 88 x 650
  • EIA RS-310C 19″ Rackmount Standard
  • 25.6″ deep 2U chassis
  • Support 12″ x 13″ EATX and ATX/ micro ATX motherboard
  • 2 x 5.25″ + 2 x 3.5″ open + 3 x 3.5″ hidden

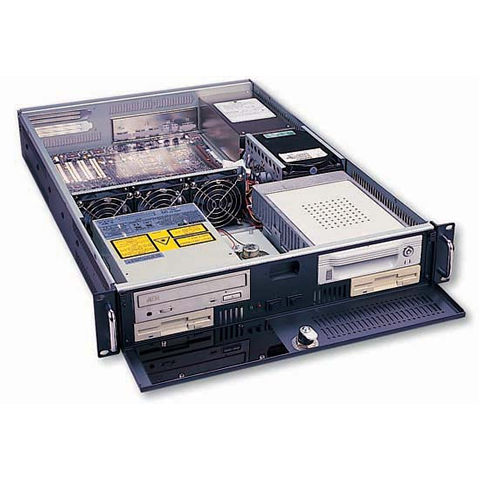

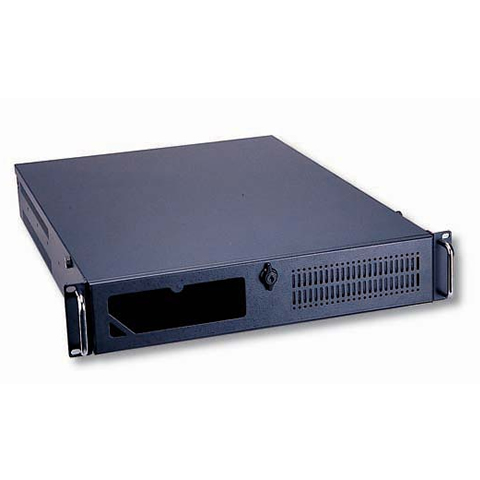

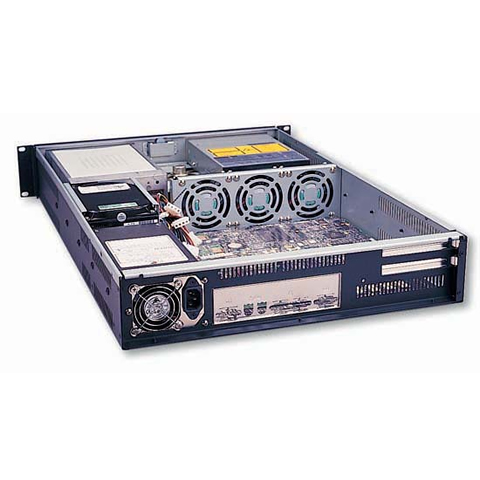

EJ-2U647-C 2U Rackmount Case Product Description

The EJ-2U647-C 2U Rackmount Case offers great expand-ability and cooling capacity for your server computer. It supports a 12″ x 13″ EATX and smaller form factor motherboard. The EJ-2U647-C also features a quality fan filter and 3 x 80cm cooling fan for optimum ventilation of the system.

Standard EIA RS-310C 19″ Rackmount Standard
Construction Heavy Duty Cold Rolled Electroplated Steel
Color Black (Standard), Beige or Custom
Drive Bays 2 x 5.25″ + 2 x 3.5″ open + 3 x 3.5″ hidden
Power Supply 2U single or redundant ATX power supply (rear installation), Max depth 300mm
Cooling Units 1 x (60 mm = 23.5 CFM ea.) & 3 x (80 mm = 42.5 CFM ea.) Fans
Expansion Slot 2 or 3 x Horizontal ISA/PCI/AGP Option Slots or 7 x Low Profile PCI Slots
Connector Port (front) 2 x USB Ports (Optional)
Buttons Power ON/OFF Momentary(Rocker), System Reset
Thermal Card N/A
Front Door(s) Single Door with 1 Thumb Twist Keylock
Dimensions (W x H x D) 483 x 88 x 650 mm (19″ x 3.5″ x 25.6″)
Weight 15 kgs / 33.1 lbs
Carton Size 58.8 x 25.5 x 82.5 (23.1″ x 10″ x 32.5″)
Humidity 5% – 95% Non-condensing
