Features
  • Chassis Height: 2U
  • Dimensions: 19″ x 3.5″ x 25.6″
  • Dimensions(mm): 483 (W) x 88 (H) x 650 (D)
  • EIA RS-310C 19″ Rackmount Standard
  • 25.6″ deep 2U chassis
  • Support 12″ x 13″ EATA and ATX/ micro ATX motherboard
  • 1 x 5.25″, 1 x 3.5″ FDD & 6 x 3.5″ HDD Hotswap Tray

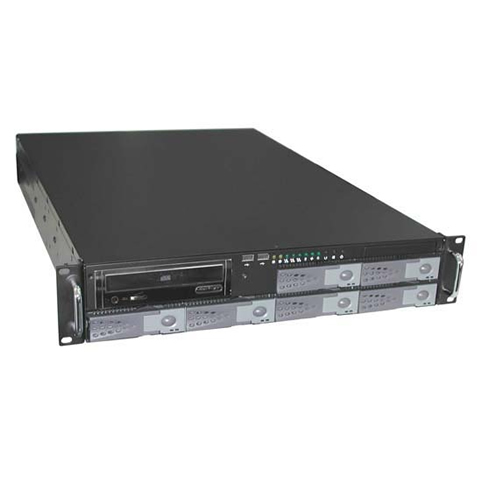

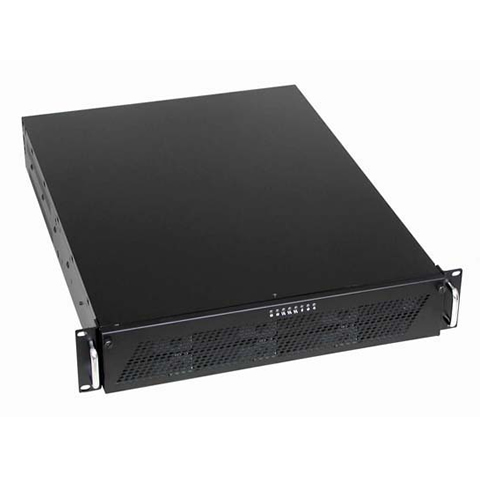

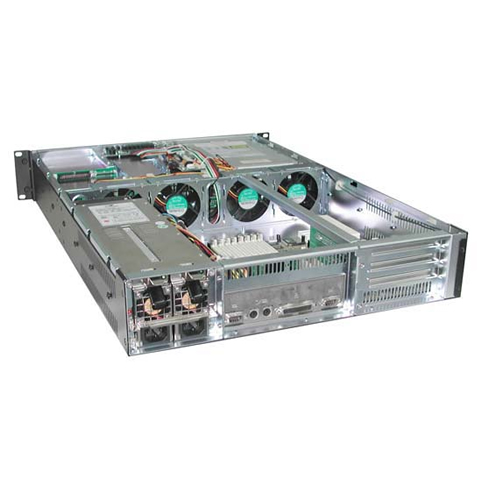

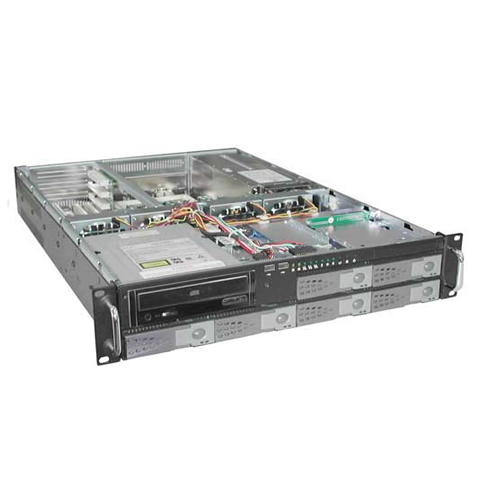

EJ-2U65065-C 2U Rackmount Chassis Product Description

The EJ-2U65065-C 2U Rackmount Chassis offers great expand-ability and cooling capacity for your server computer. It supports a 12″ x 13″ EATX and smaller form factor motherboard. The EJ-2U65065-C also features a quality fan filter and 4 x 80 cm cooling fan for optimum ventilation of the system.

StandardEIA RS-310C 19″ Rackmount Standard
ConstructionHeavy Duty Cold Rolled Electroplated Steel
ColorBlack, Beige, or Custom Design
System BoardsDual Xeon, Pentium 4, Dual Pentium III based boards
Motherboard SizeSupport ATX M/B (Max. 12″ x 13″ EEB)
Drive Bays1 x 5.25″, 1 x Slim Floppy, 6 x 3.5″ Hotswap Drive Tray (IDE/PATA/SATA/SCSI)
Power Supply(Rear Chassis Installation) 2U Power or 2U Redundant ATX power supply (Optional)
Cooling Units4 x 8 cm Ball Bearing Fans, 42.5 CFM/Each
Extension Ports (Front)2 x USB
Expansion Slot3 x Horizontal Slots or 7 x Vertical Low-Profile Slots
IndicatorsLEDs for Power ON/OFF, 2 x HDD, Fan, Temperature, & 3 x LAN Activity
Thermal Management CardInstalled
SwitchesPower On/Off, Fan Alarm & System Reset
Dimensions483 (W) x 88 (H) x 650 (D) mm (19″ x 3.5″ x 25.6″)
Weight18.5 kgs / 40.8 lbs
Cu. ft.4.4
Carton Size58.8 x 25.5 x 82.5 cm (23.1″ x 10″ x 32.5″)
Product ApplicationsWeb Server, Firewall Server, Proxy Server, VPN Gateway, File Server
