Features
  • Chassis Height: 2U
  • Dimensions: 19″ x 3.5″ x 25.6″
  • Dimensions(mm): 483 x 88 x 650
  • EIA RS-310C 19″ Rackmount Standard
  • 25.6″ deep 2U rackmount chassis
  • Support 12″ x 13″ EATX and ATX/ micro ATX motherboard
  • Support 12 x 3.5″ HDD hot-swap trays

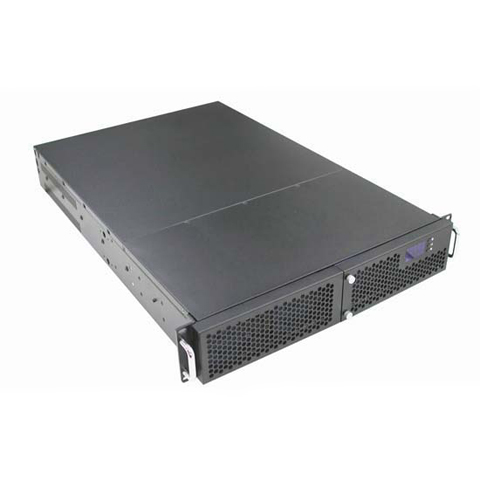

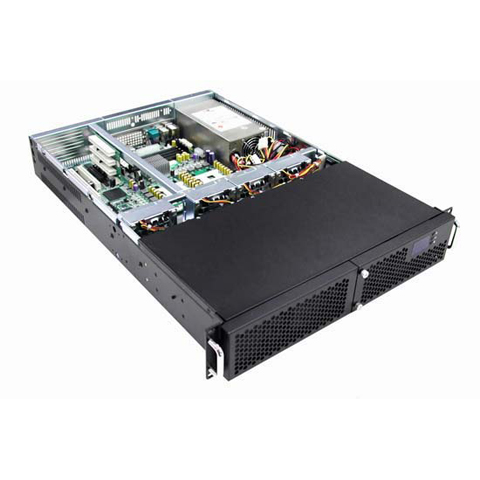

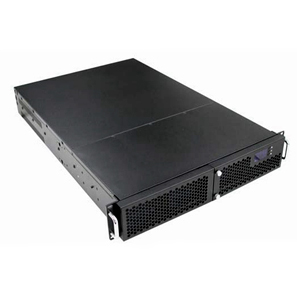

EJ-2U6512 2U Rackmount Chassis Product Description

The EJ-2U6512 2U rackmount chassis offers great expand-ability and cooling capacity for your server computer. It supports a 12″ x 13″ EATX and smaller form factor motherboard. The EJ-2U6512 also supports 2U single or redundant ATX power supplies. It features a quality fan filter and 4 x 80 cm cooling fan for optimum ventilation of the system.

ConstructionHeavy Duty Cold Rolled Electroplated Steel
ColorBlack (Standard) or Custom
System BoardsPentium 4, Pentium D, Dual Xeon, AMD 64, AMD 64 X2, Dual Opteron, Quad Opteron
Motherboard SizeSupport EATX M/B (Max. to 12″ x 13″ EEB)
Drive Bays12 x Hotswap HDD (SATAII, SAS, U320 SCSI, & SATA-Multilane)
Drive InterfaceSATAII, SAS, U320 SCSI, Multilane/SATA
Power Supply(Rear Chassis Installation) 2U Single or Redundant ATX Power Supply (Optional) Max Depth 300 mm

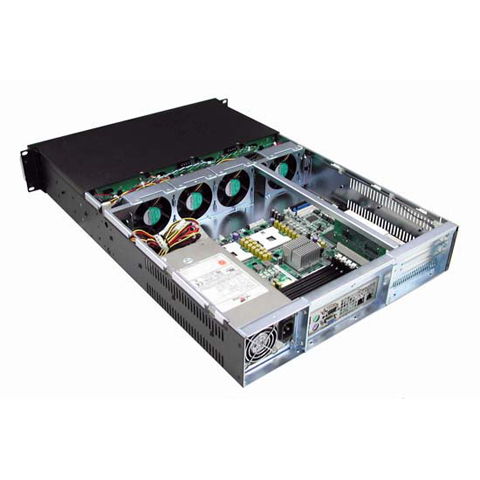

Cooling Units4 x (80 mm = 42.5 CFM ea.) Heavy Duty Ball Bearing Fans
Thermal Managment CardInstalled
Expansion Slot3 x Horizontal Slots or 7 x Vertical Low-Profile Slots
IndicatorsLEDs for Power, 12 x HDD Power or Activity, 3 x LAN, Fan Failure, Temperature Warning
ButtonsPower On/Off, System Reset, & Buzzer Reset Momentary (Pushbutton)
Crossbar2U PCI Spanner Bar (only on 3 slot version)

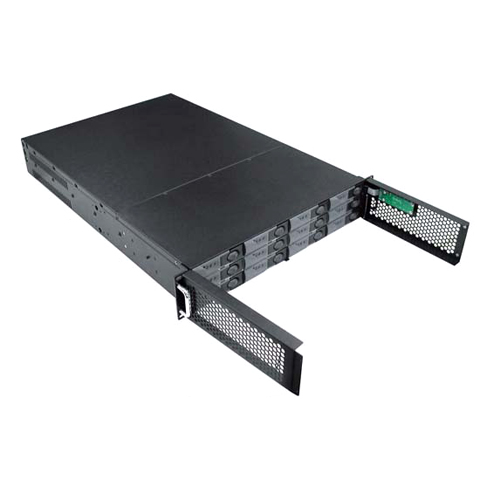

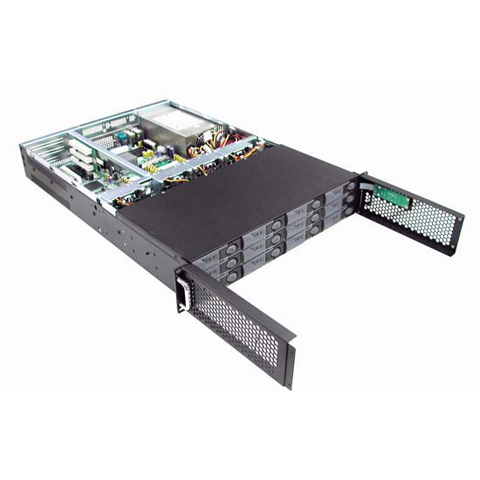

Front Door(s)Fixed Double Doors (swinging) with 2 x Thumbscrew
Dimensions
(W x H x D)
483 x 88 x 650 mm (19″ x 3.5″ x 25.6″)
Weight18.5 kgs / 40.8 lbs
Cu. ft.4.4
Carton Size58.8 x 25.5 x 82.5 mm (23.1″ x 10.0″ x 32.5″)
Humidity5% – 95% Non-condensing
Product ApplicationsNAS, SAN, File Server
Chassis Height2U
