• Chassis Height: 2U
  • Dimensions: 19″ x 3.5″ x 25.6″
  • Dimensions(mm): 483 (W) x 88 (H) x 650 (D)
  • EIA RS-310C 19″ Rackmount Standard
  • 25.6″ deep 2U chassis
  • Support 12″ x 13″ EATX and ATX/ micro ATX motherboard
  • 1 x 5.25″, 1 x Slim Floppy, 6 x 3.5″ HDD Hotswap Drive Tray

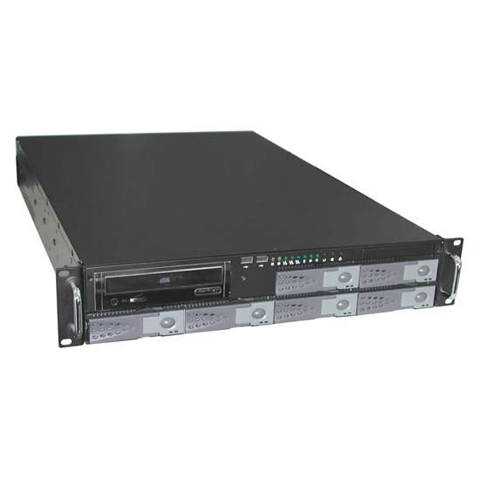

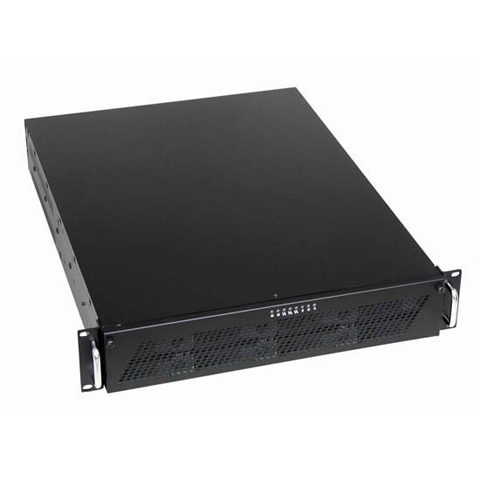

EJ-2U656 2U Rackmount Case Product Description

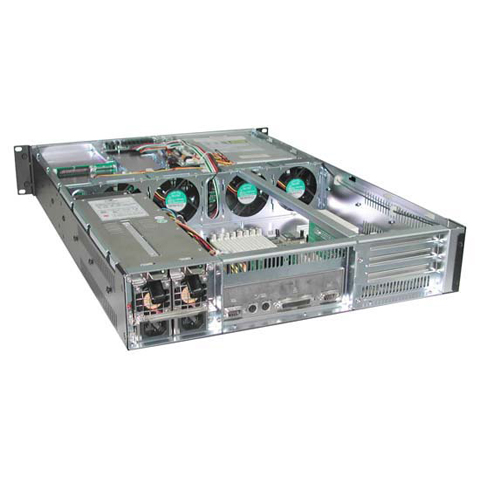

The EJ-2U656 2U rackmount case offers great expand-ability and cooling capacity for your server computer. It supports a 12″ x 13″ EATX and smaller form factor motherboard. The EJ-2U656 also features a quality fan filter and 4 x 80 cm cooling fan for optimum ventilation of the system.

ConstructionHeavy Duty Cold Rolled Electroplated Steel
ColorBlack or Custom Design
System BoardsDual Xeon, Pentium 4, Dual Pentium III based boards
Motherboard SizeSupport ATX M/B (Max. 12″ x 13″ EEB)
Drive Bays1 x 5.25″, 1 x Slim Floppy, 6 x 3.5″ Hotswap Drive Tray (IDE/PATA/SATA/SCSI)
Power Supply(Rear Chassis Installation) 2U Single or Redundant ATX Power Supply (Optional)
Cooling Units:4 x 8 cm Ball Bearing Fans, 42.5CFM/Each
Extension Ports (Front)2 x USB
Expansion Slot3 x Horizontal Slots or 7 x Vertical Low-Profile Slots
IndicatorsLEDs for Power ON/OFF, 2 x HDD, Fan, Temperature & 3 x LAN Activity
Thermal Management CardInstalled
SwitchesPower On/Off, Fan Alarm & System Reset
Dimensions483 (W) x 88 (H) x 650 (D) mm (19″ x 3.5″ x 25.6″)
Weight18.5 kgs / 40.8 lbs
Cu. ft.4.4
Carton Size58.8 x 25.5 x 82.5 cm (23.1″ x 10″ x 32.5″)
Product ApplicationsWeb Server, Firewall Server, Proxy Server, VPN Gateway, File Server
Chassis Height2U
