Features
  • Chassis Height: 5U
  • Dimensions: 19″ x 8.7″ x 25.6″
  • EIA RS-310C 19″ Rackmount Standard
  • 25.6″ deep 5U chassis
  • Support 12″ x 13″ EATX and ATX/ micro ATX motherboard
  • 1 x slim CD-ROM, 1 x slim FDD, 24 x 3.5″ HDD hotswap trays, 2 x 2.5″ internal

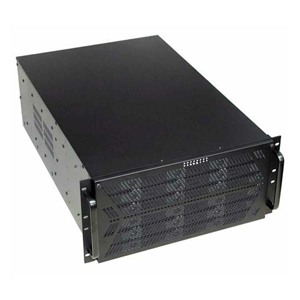

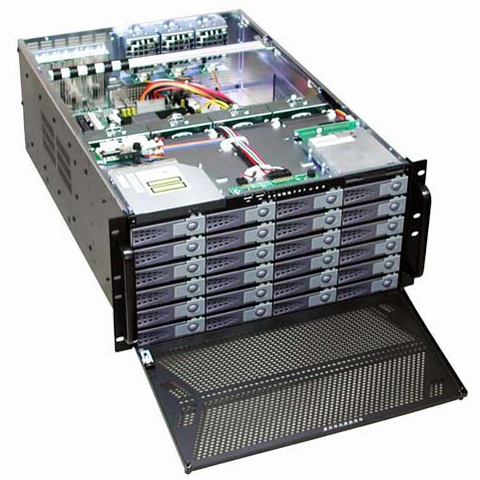

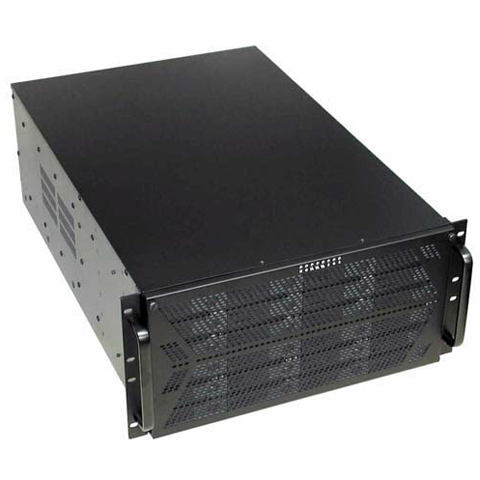

EJ-5U6528 5U Rackmount Chassis Product Descriptions

The EJ-5U6528 5U Rackmount Chassis offers great expand-ability and cooling capacity for your server computer. It supports a 12″ x 13″ EATX and smaller form factor motherboard. The EJ-5U6528 also features a quality fan filter and 3 x 120mm, 1 x 80mm & 2 x 60mm heavy duty ball bearing cooling fan for optimum ventilation of the system.

Drive Bays 1x slim CDROM, 1x slim FDD, 24x hotswap drive carrier, 2x 2.5″ internal
Dimensions 19″ x 8.7″ x 25.6″
Power Supply (Rear Chassis Installation) 1U Redundant Power Supply Max Depth 300mm
Cooling Units 3 x 120mm, 1 x 80mm & 2 x 60mm Ball Bearing Cooling Fans
Construction Heavy Duty Cold Rolled Electroplated Steel
Motherboard Size Support ATX M/B (Max. 12″ x 9.6″ ATX/Micro ATX)
System Board Pentium 4, Dual Pentium III based boards
Color Black (Standard), Beige or Custom
Weight 33.5kgs / 73.9lbs
Product Applications NAS, SAN, File Server
Indicators LEDs for Power, 24x HDD Activity, 24x HDD Power, 3x LAN, Fan Failure, Temperature Warning
Buttons Power On/Off, System Reset, Fan Failure Reset, Alarm Reset Dimple Buttons
