Features
  • Chassis Height: 2U
  • Dimensions: 26.7″ x 16.9″ x 3.5″
  • Dimensions(mm): 680 x 430 x 88
  • EIA RS-310C 19″ Rackmount Standard
  • 26.7″ deep 2U chassis
  • Support 12″ x 13″ EATX and ATX/ micro ATX motherboard

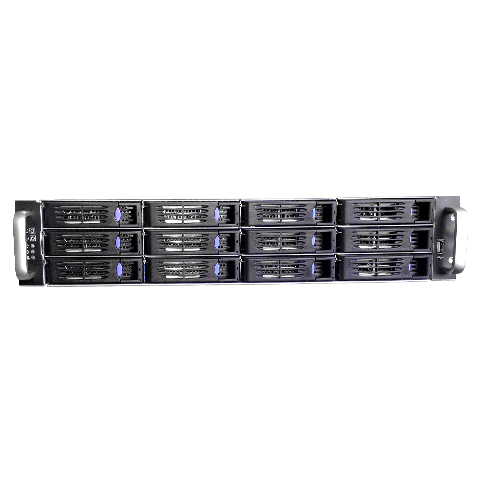

  • 12 x 3.5″ HDD Hot-swap Trays

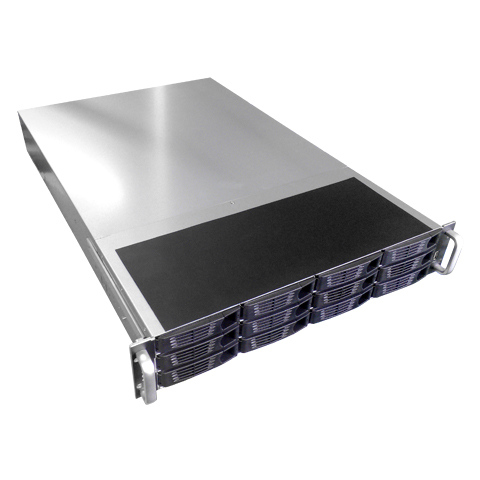

EJ-R2312-01A 2U Rackmount Case Product Description

The EJ-R2312-01A 2U Rackmount Case offers great expand-ability and cooling capacity for your server computer. It supports a 12″ x 13″ EATX and smaller form factor motherboard. The EJ-R2312-01A also features a quality fan filter and 4 x 80 cm cooling fan for optimum ventilation of the system.

StructureMetal materialSGCC
Metal thickness1.2 mm
Panel materialABS
M/B supportEEB (12″ x 13″) / CEB (12″ x 10.5″) / ATX
CPUDP Xeon(Intel) / DP Opteron(AMD) / Core(Intel)
SizeD*W*H(mm)680 x 430 x 88
D*W*H(inch)26.7″ x 16.9″ x 3.5″
Drive Bay3.5”/2.5” HDD12 x 3.5″ (hot swap)
Slim CD-ROM0
Slim FDD0
Power support2U standard power supply/Redundant 1+1
Front panelControl buttonPower On/Off/Reset
IndicatorPower status / HDD Activity / Lan Activity
I/O ports0

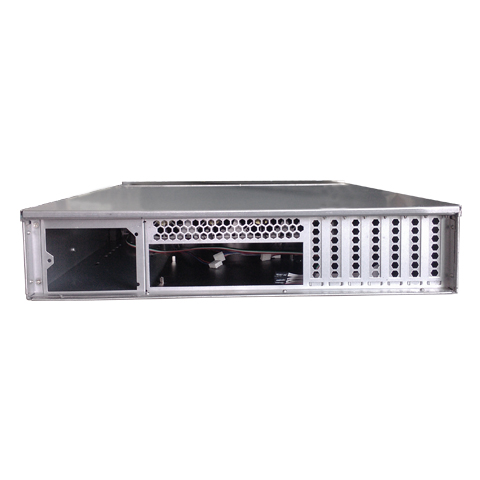

ExpansionSwitchable rear door
7 x half-length slots
Riser card (optional)
Backplane3 (Mini-SAS)

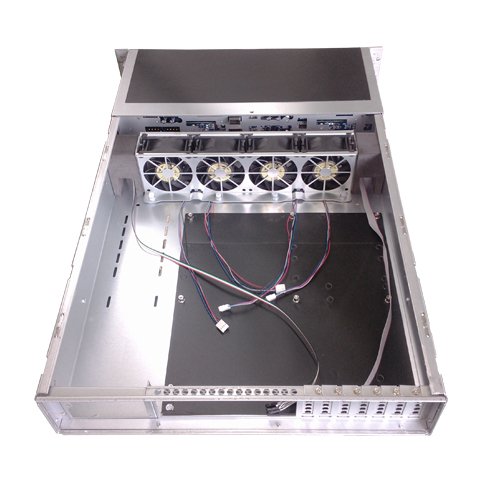

System coolingMiddle4 x 8025 (4000r/m, hot swapable) fans
Applications1. Security servers, VOD servers
2. Web servers(website/email/fire wall/VPN/storage)
3. Online game server(DB/Game/Gate/Log-in/web/SQL)
4. High server group
5. NAS and SAN
