Features

  • Supports SAS/SATA (3/6 Gbps)
  • Aluminum housing, anodized surface, benefits for cooling and durability
  • High performance SAS/SATA Backplane design for 8 removable SAS/SATA drive trays
  • Built-in fans for self-contained ventilation
  • Individual key lock of each HDD tray for physical security
  • LED indicators for power and activity on each HDD tray
  • Environmental Monitoring with Power/FAN/TEMP LEDs and mutable buzzer alarm.

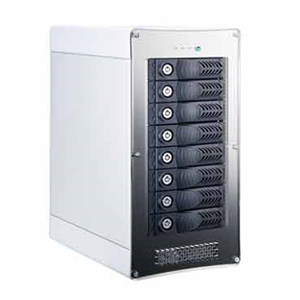

JBOD Chassis 8-Bay Multilane SAS/SATA NS760S Product Description

Host Interface SAS/SATA 3Gb/s or 6 Gb/s
HDD Interface SAS or SATA 3.0 Gbps / 6.0 Gbps
Data Transfer Rate SAS or SATA 3/6 Gbps
Hot-Swap Both on Host and Device
LED Display White – Power on indicator
Blue – Busy (HDD Accessing) indicator
LED Display for Environmental Monitoring POWER on LED – white
FAN normal – green; fail – red (too slow rpm or stop)
TEMP normal – green; over 55°C – red
Dimension (D):23.15cm (W):15.68cm (H):31.0cm
Material Anodized Aluminum with Mirror Acrylic plastic front panel & Plastic tray face
Power Supply 300W (High reliability of IPC form-factor)
Input: 90 – 230 VAC 50- 60 Hz
Output: +5V and +12V DC

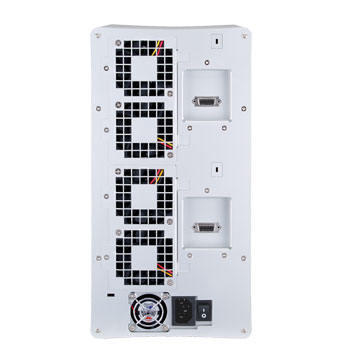

Cooling Four 60 x 60 x 15 mm Cooling Fans
(Without any HDD installed, fan don’t spin up.)
O.S. support OS Independent

NS760S

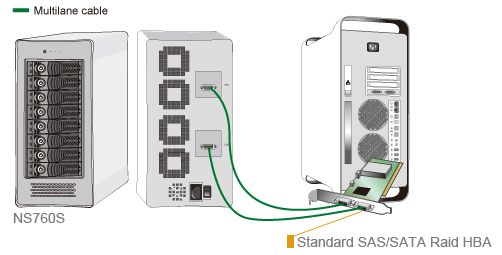

NS760S is a 8 Bay External Hot-Swap SAS/SATA Enclosure. It provides users a flexible SAS/SATA backplane soltion for compatible SAS or SATA 3.0/ 6.0 Gbps HDD and can be connected with Host SAS/SATA HBA to configure NS760S with Raid level protection for high performance external data storage solution for HD of 1080i Vedio Editing or any high resolution video platform. This 8 Bay external SAS/SATA JBOD is designed with two convenience of Multilane interface brings users an easy installation and a fast data transmission experience.



Cable
AAMSM1 MultiLane Screw (SFF8470) to miniSAS (SFF8088), Length: 1mNS760S

For Host Connector miniSAS (SFF8088)

AAMSS1 MultiLane Screw (SFF8470) to MultiLane Screw (SFF8470), Length: 1mNS760S

For Host Connector MultiLane Screw (SFF8470)

Tray
ANNA411B0370 Spare Black Color Tray with Retail Package

NS760S

Enclosure x 1
HDD Tray x 8
Multilane Cable x 2 (Optional)
Power Cord x 1
Manual CD-ROM x1
Hard Disk Drive mounting screw x 32
Key for HDD tray x 2
