Features

  • 500W
  • Mini Redundant Power Supply
  • Dimensions(mm): 199 x 150 x 86
  • ATX 12V / EPS 12V
  • Cooling by forced air 2 x 40mm Fan (Each module)
  • Temperature Range: Operation 0˚C~50˚C
  • Hold Up Time: 16ms at maximum load & normal input voltage
  • Efficiency: 67% TYPICAL(Normal Line)

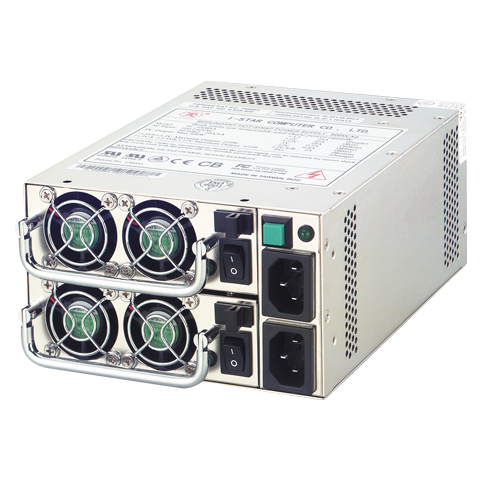

Mini Redundant Power Supply 500W TC-500R8A-FM Product Description

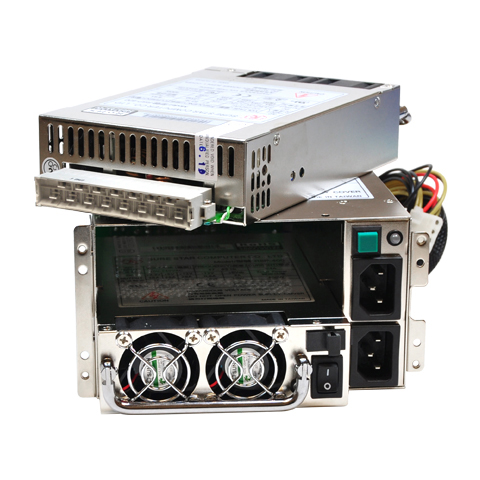

The Mini Redundant Power Supply 500W TC-500R8A-FM includes hot-swap and power sharing functions. The mini redundant power supply is ideal for telecommunications and industrial systems. TC-500R8A-FM power signal should be asserted high to indicate that +5VDC and +3.3VDC output are above the low voltage thresholds. Compatible signal out with 100ms to 500ms. The power supply offers over power protections and shall shut down if the output power exceeds 130% to 160%. In addition, a short circuit placed between the DC return and the output shall cause no damage and the power supply shall shutdown.

AC Input
Voltage: 100~240V, (115/230 auto)
Frequency: 50/60Hz
Input Current: 8A/4A For 115/230VAC
Inrush Current: 60A/80A MAX FOR 115/230

Function
Power Good Signal: 100ms~500ms, TTL compatible signal
Power Fail Delay: >1msec. ,TTL compatible signal
PS-ON: Power off:PS-ON = 2V min. ;Power on:PS-ON = 0.8V max.

Environmental
Operating Temperature: 0˚C to 45˚C
Storage Temperature: -20˚C to +70˚C
Operating Humidity: 20% to 90%,non-condensing
Storage Humidity: 5% to 95%, non-condensing

Safety & EMI/RFI
Safety Standards: UL,cUL,TUV,CB
EMI/RFI Standards: CISPR22(EN55022) Class A, FCC Part15 Class A

Others
MTBF: 100,000 hours
Coolings: 38x38x28mmx6 DC FANS
Dimension(DxWxH): 300x101x125mm

DC Output

OUTPUT
VOLTAGE
OUTPUT CURRENT
REGULATION
OUTPUT
MIN(A)
MAX(A)
LOAD
LINE
RIPPLE & NOISE
MAX.[P-P]
+5V342±5%±1%50mV
+12V228±5%±1%120mV
-5V0.10.5±10%±1%150mV
-12V0.10.8±10%±1%150mV
+3.3V124±5%±1%50mV
+5VSB0.12±5%±1%50mV



The combined output power +5V&+3.3V shall not exceed 210W.
The total power shall not exceed 500W.

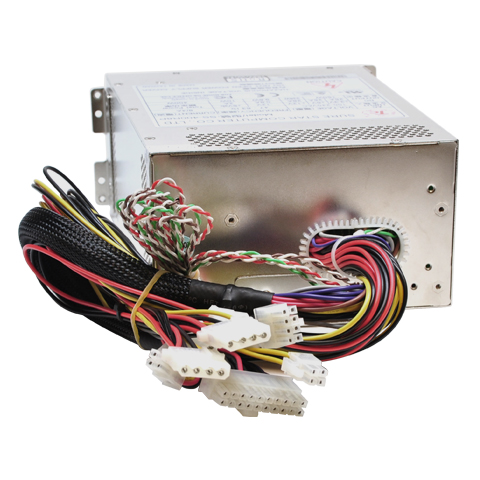

20 + 4 pin

P4 MB
peripheral
FDD
8-Pin
20+4 Pin P4 MB PeripheralFDD8-Pin
X 1X 1X 7X 1X 1
