Features

  • Supports SAS/SATA (3/6 Gbps)
  • 3* miniSAS interface for easy connection(Direct connection w/o buit-in SAS expander)
  • Backplane design for up to 12 removable SAS/SATA drive trays
  • Fan cooler for self-contained ventilation
  • Individual key lock of each HDD tray for physical security
  • LED indicators for power and activity on each HDD tray
  • Environmental Monitoring with FAN/TEMP LEDs and mutable buzzer alarm

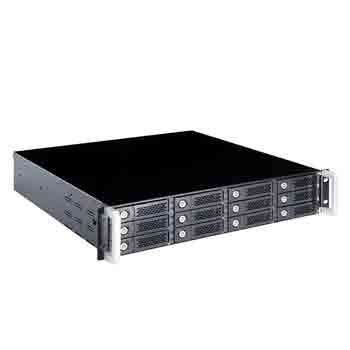

NA321A 2U Rackmount JBOD Chassis 12 bay SAS to SAS/SATA Product Description

Host InterfaceSAS/SATA 3.0Gbps/ 6.0Gbps(Three miniSAS connector)
HDD InterfaceSAS/SATA 3/6 Gpbs
Data Transfer RateSAS/ SATA 3/6 Gbps
LED DisplayWhite – Power on indicator
Blue – Busy (HDD Accessing) indicator
LED Display for Environmental MonitoringFAN normal – green; fail – red (too slow rpm or stop)
TEMP normal – green; over 55°C – red
Dimension(L):45.6 cm (W):48.2 cm (H):8.85 cm
MaterialHeavy-duty cold-rolled steel
Power Supply400W Single PSU ( Can be changed to mini Redundant)
Input: 90 – 230 VAC 50- 60 Hz
Output: +5V and +12V DC
CoolingTwo set of 6 x 6 x 2.5 cm Hot-Swappable Fans
O.S. supportOS Independent

NA321A

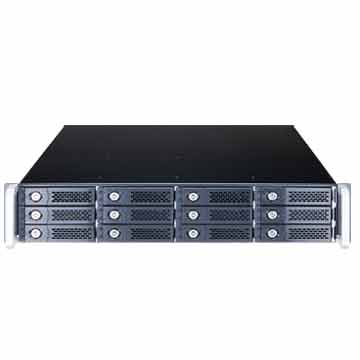

NA321A is an external 2U-12 Bay Hot-Swap SAS/SATA 3/6 Gbps Rackmount Enclosure. It provides users a flexible solution for up to 12 SAS or SATA HDD and high performance external data storage solution for HD of 1080i Video Editing or any high resolution video platform. This 2U 12 Bay external SAS/SATA JBOD is designed with 3 high quality of External miniSAS(SFF8088) interface brings users an easy installation and enjoy fast data transmission experience.

Enclosure x 1
HDD Tray x 12
mini SAS Cable x 3 (Optional)
Power Cord x 1
Manual CD-ROM x1
Hard Disk Drive mounting screw x 48
Key for HDD tray x 2

NS970SNA321A Access 1Quad internal miniSAS(SFF8087) to Quad external(SFF8088) AdapterSolution for

  • HighPoint Technologies –  RocketRAID3220
  • 3Ware – 9650SE-12ML / 9650SE-16ML / 9650SE 24ML
  • Adaptec – RAID 31205, RAID 31605
NS970S SGPIONA321A Access 2Quad internal miniSAS (SFF8087) to Quad external(SFF8088) Adapter with RS-232(SGPIO) cableSolution for

  • Areca –  ARC-1231ML / ARC-1261ML / ARC-1280ML
AAMMM1 External miniSAS (SFF8088) to miniSAS (SFF8088), Length: 1mNA321ASolution for Host Connector External miniSAS (SFF8088)
