Features

  • External 2U-12 bay Rackmount Chassis
  • External PCI-e (PCI Express) x8 Host Interface
  • Supports SAS/SATA (3 Gbps/ 6 Gbps)
  • Up to 12 Removable SAS/SATA Drive Trays
  • Optional Dual Hot-Swappable Power Supplies
  • LED Indicators for Power and Activity on each HDD Tray
  • Environmental Monitoring with FAN/TEMP LEDs and mutable buzzer alarm

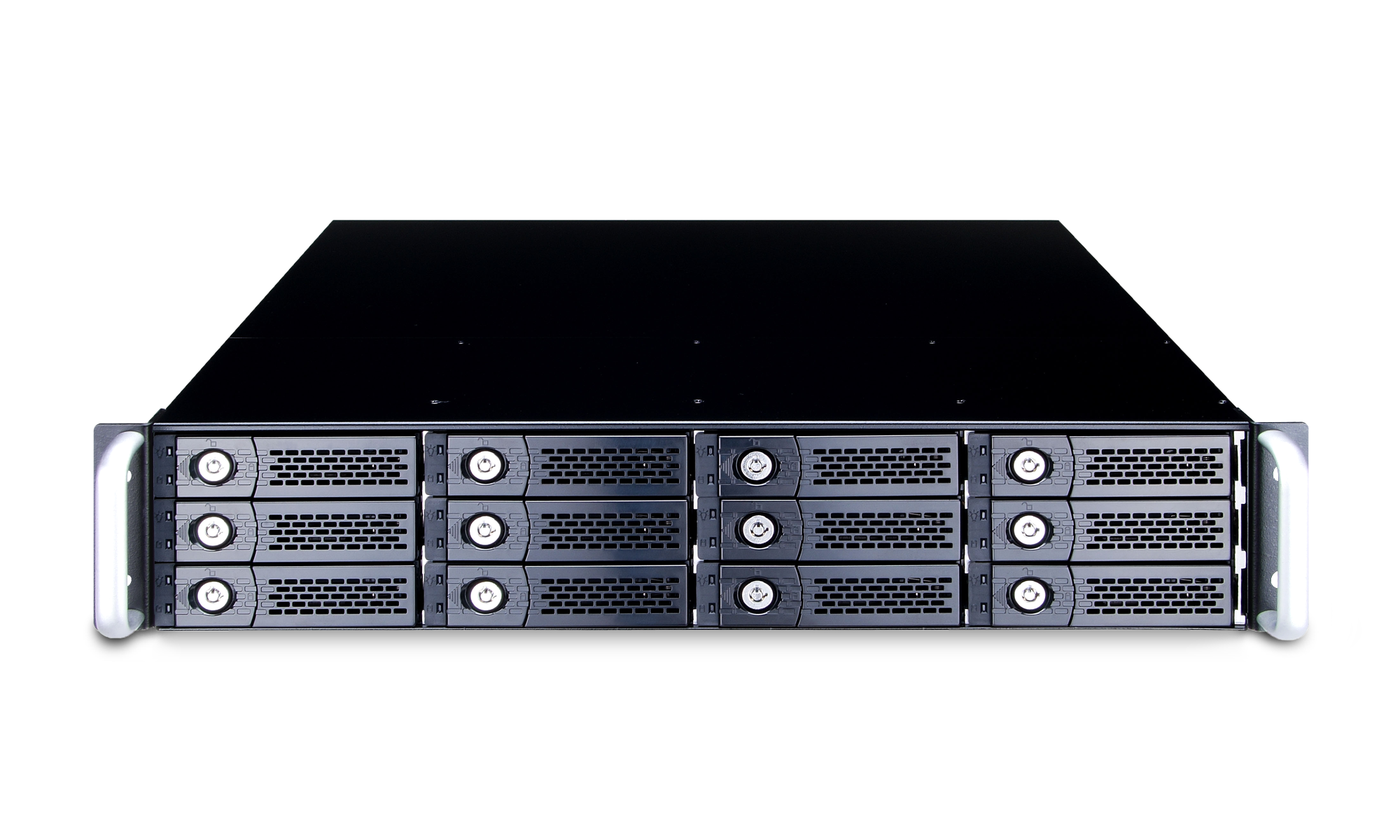

NA322A-G3 2U 12-bay External PCI-Express 8x (Host) to SAS/SATA (Disk) JBOD Product Description

The Fastest Storage with Maximum Performance Ever

Following the long-term popular product line of Netstor external PCI-E to SAS/SATA storage solution, now the whole new third generation has freshly been released to the industry. As compared with the modern SFF-8644 port that presents the four 12Gb/s channels, the latest external PCI-E 3.0 x8 interface of the storage is 33% more bandwidth than the present-day 12Gb/s mini-SAS HD port.

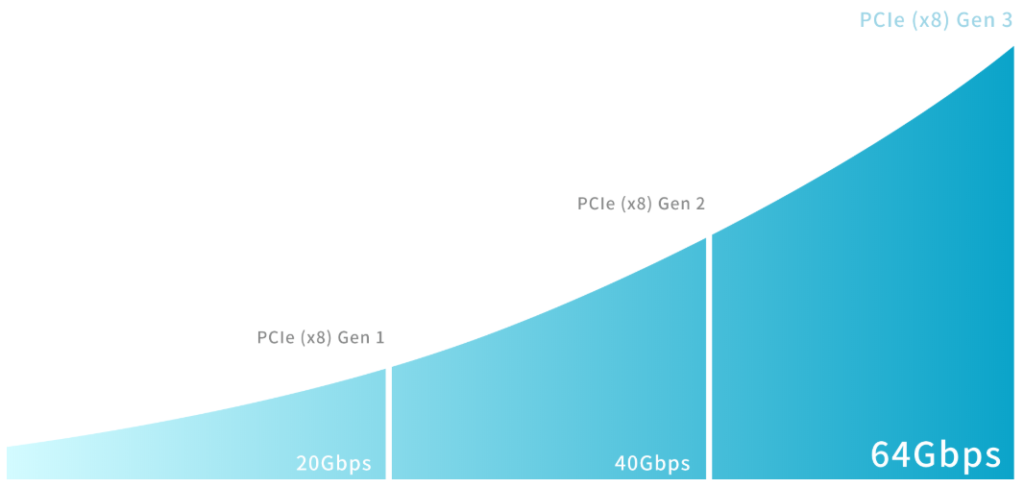

64Gbps Ultra High Bandwidth – PCIe Gen3 x8

An ultra fast, external PCIe 3.0 x8 interface 64Gbps has been thoughtfully designed for the Netstor storage enclosure to allow the unit to be kept at the highest, full performance and achievements of up to 6400 MB per second.

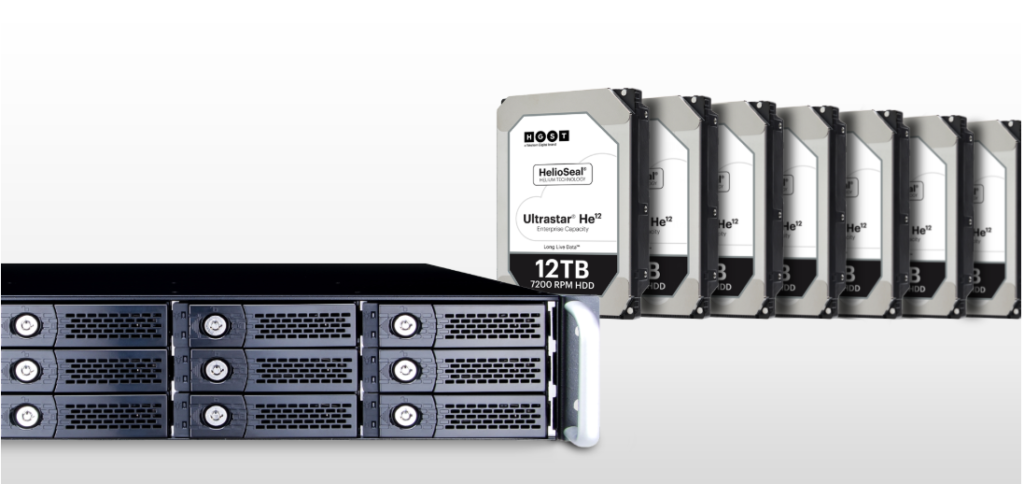

Up to 12 Bays Large Storage Capacity

Created 2U 12-bay storage chassis with support of twelve hot-swappable drive trays, the NA322A-G3 supports the most space utilization efficiency characteristic, featuring the utmost high-density trait that makes the storage be excellently fitted in any site for work. As each tray attached with 12 TB HDD, total usable storage is up to 144 TB capacity in favor of any production and application.

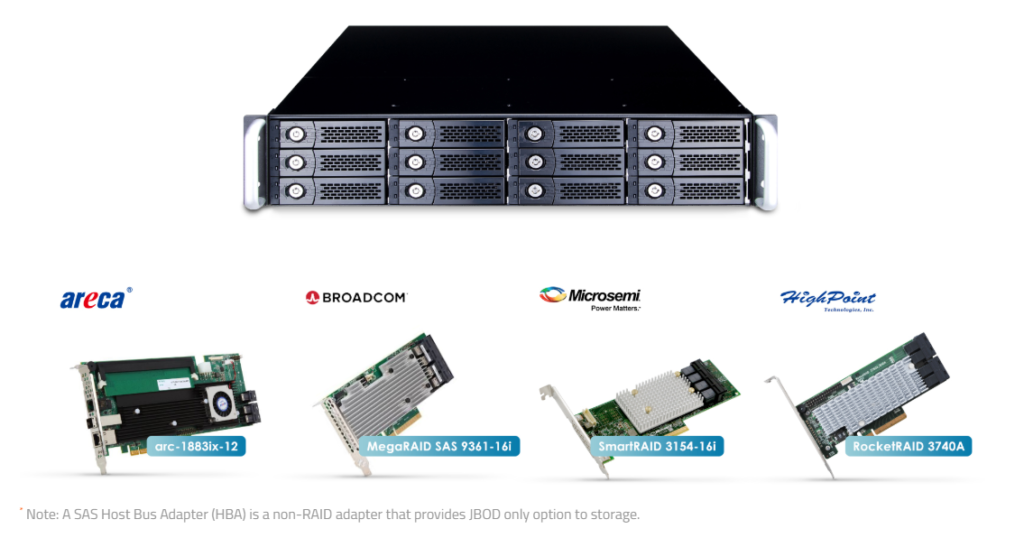

Broad Range of RAID Card Support

Based on the application and demands, users can choose their own desired brand/model of RAID card or SAS Host Bus Adapter (HBA) in the rackmount storage for work. By utilizing a twelve port RAID card, the Netstor JBOD immediately turns into an enterprise RAID storage with RAID level protection including 0, 1, 10, 3, 5, 6, 30, 50, and 60.

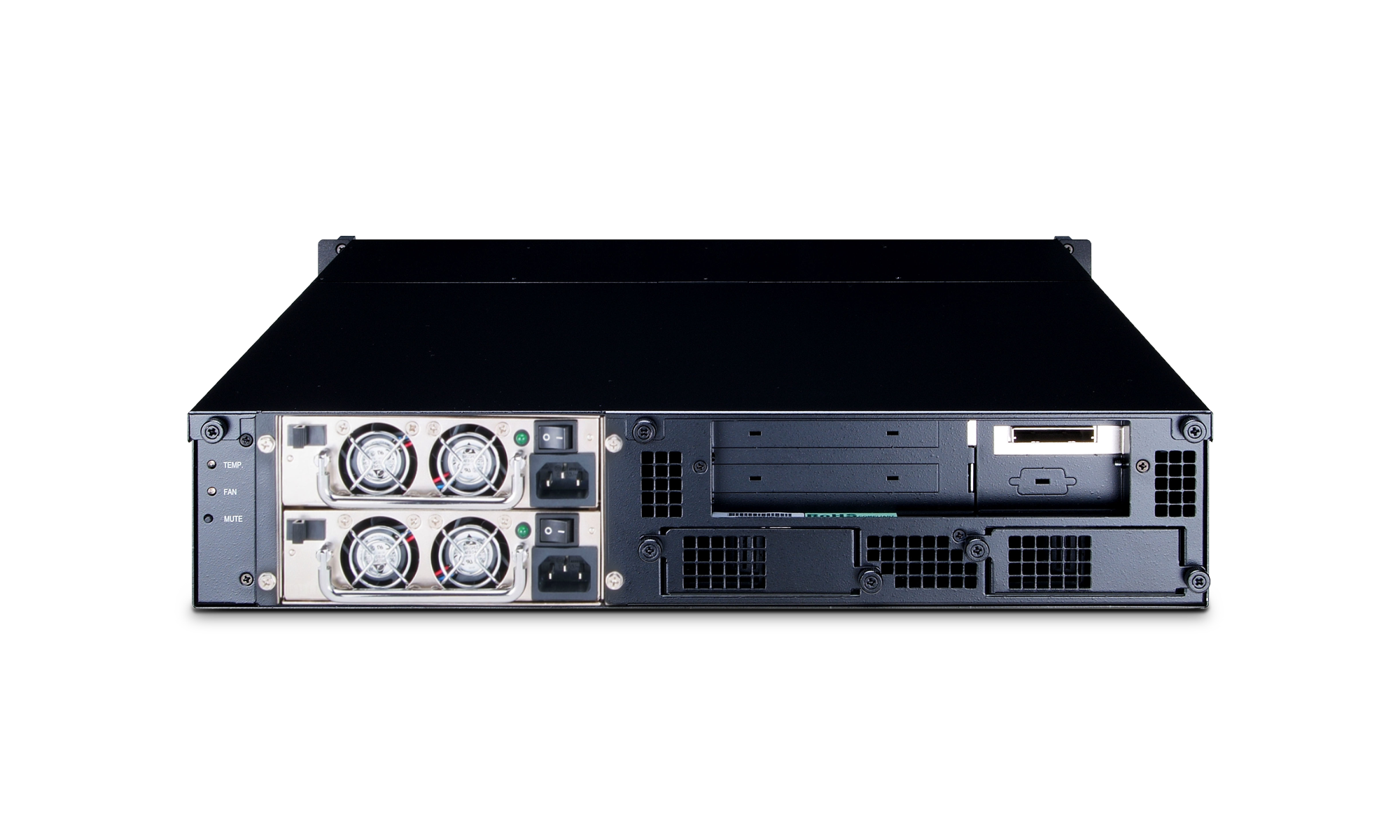

Redundant Server-Grade High-Efficiency PSU

The Netstor 2U storage is built with an industrial, server-grade redundant 400W PSU that is guaranteed to have the highest reliability to the users and the IT system integrators in support of 24/7 operation application with no system downtime to continuously working with the computer server/workstation.

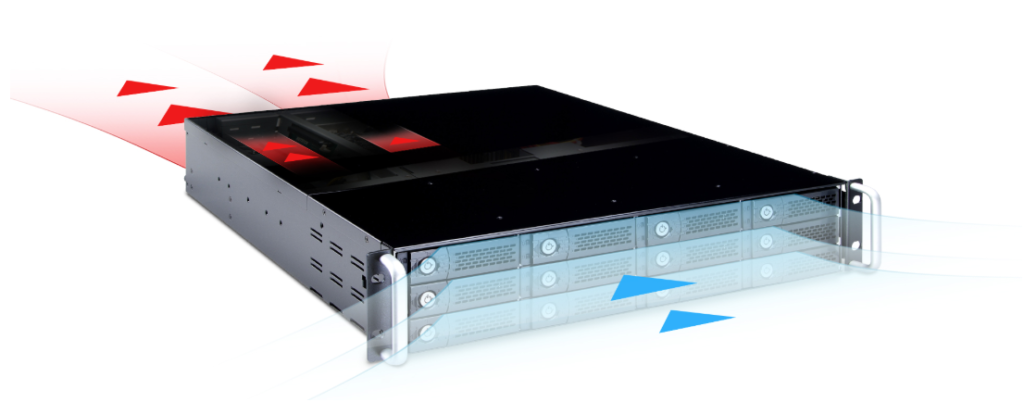

Superior Airflow Ventilation Framework

Built with two rear hot-swappable, variable-speed blower fans, the well-devised airflow ventilation architecture does genuinely allow the mild air to be smoothly ventilated out of the storage enclosure in the company of ultra low dBA sound level to suit all sorts of applications and environment.

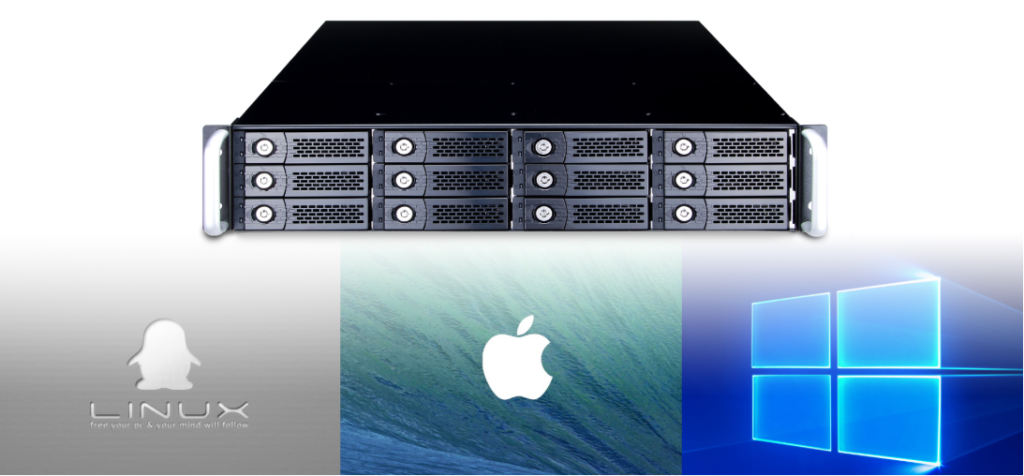

Multi Platform Support

The NA322A-G3 is created to support all kinds of computer operating system platforms, and the storage itself simply doesn’t require a driver for operation and application. Thus the Netstor 12-bay storage does work with all computers/servers running Windows/Linux and tower Mac Pro running macOS.

Product Description

NA322A-G3
Host InterfaceExternal PCIe 3.0 x8
Data Transfer RateUp to 64Gbps
HDD InterfaceSAS/SATA (6G/3Gbps)
No. of Disk(s)Up to 12 (For 3.5″ HDD & sold separately)
RAID LevelsRequires a RAID card with internal 12 port (RAID card sold separately)
PCIe Slot ExpansionNone
LED Display for EnclosureFan normal – Green; Fan failure – Red Temp. normal – Green; Temp. over 50°C – Red
LED Display for each TrayWhite – Power On Indicator Flash Blue – HDD Accessing Indicator Red – HDD Failure Indicator
AlarmMutable buzzer beeping for fan failure or over temperature occurs
MaterialHeavy-duty cold-rolled steel Housing
Power Supply400W Redundant PSU Input: 90-230 VAC/50-60 HZ Output: +5V and +12V
Dimension559(D) x 482(W) x 88.5(H) mm 22 (D) x 19 (W) x 3.49 (H) inch
CoolingTwo 60x 60x 25mm (inner) Two 75x 75x 28mm Blower (rear)
System SupportWindows, Linux, Mac OS
O.S. SupportOS Independent
PCIe card Driver RequestThird-party PCIe card should support OS driver
PCIe card Size AvailableCard length within 305mm and full height PCIe card
Operating Temperature5 to 40°C (41 to 104°F)
Storage Temperature-10 to 50°C (14 to 122°F)
Relative Humidity20 to 80% (non-condensing)
Package ContentEnclosure x 1 HDD Tray x 12 (Installed) PCIe 3.0 x8 Host Adapter x 1 PCIe Gen3 x8 cable x 1 (1.5 meter) Internal miniSAS cable x 3 Hard Disk Drive mounting screw x 48 Key for HDD tray x 2 Power Cord x 2
