Features

  • Rugged 3U 16-Bay Rackmount Chassis
  • Host interface up to 40Gbps bandwidth
  • Supports Sixteen(16) SAS/SATA(3Gb/s or 6Gb/s) drives
  • Supports up to 3 PCI-Express slots for Raid Card and any standard add-on cards
  • Individual Key lock of each HDD tray for physical security
  • Environmental monitoring for FAN failure and over temperature
  • Server-grade redundant power supply for zero-down-time

NA333A-G3 3U 16-Bay External PCIe ×8 JBOD Storage with PCIe Slot Expansion Product Description

Remarkable Storage plus PCIe Expansion Architecture

Following the long-term popular product line of Netstor storage plus PCIe expansion solution, now the all new third generation has been freshly released to the industry. World’s most excellent design to have both storage and PCIe expansion integrated in the same unit architecture. In addition to the large storage it renders to computers, Netstor NA333A-G3 provides PCIe slots within storage chassis allowing users to make the easiest ever expansion of varied specialty PCIe cards to the computer servers.

64Gbps Ultra High Bandwidth – PCIe Gen3 x8

An ultra fast, external PCIe 3.0 x8 interface 64Gbps has been thoughtfully designed for the Netstor storage enclosure to allow the unit to be kept at the highest, full performance and achievements of up to 6400 MB per second.

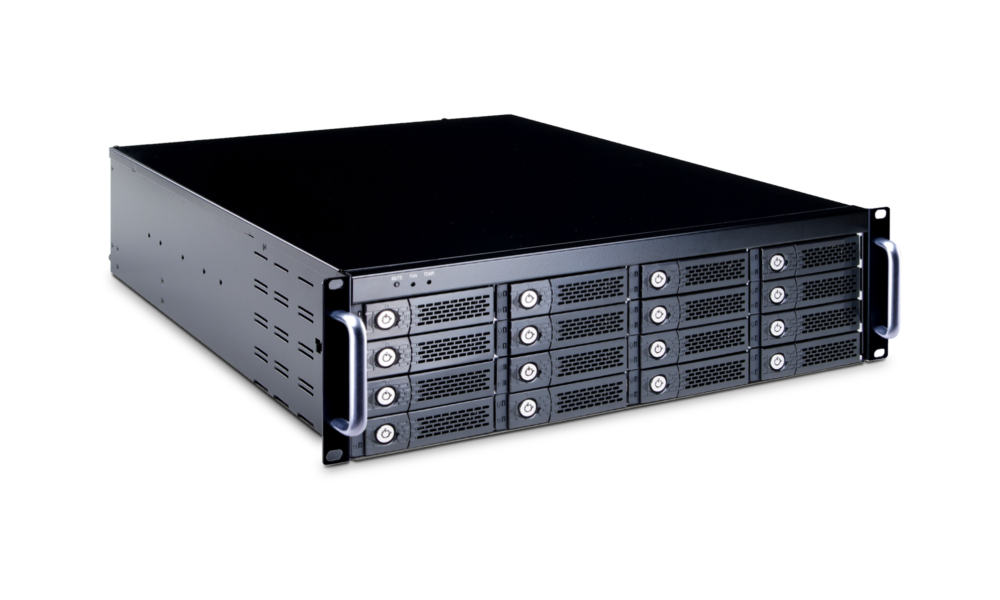

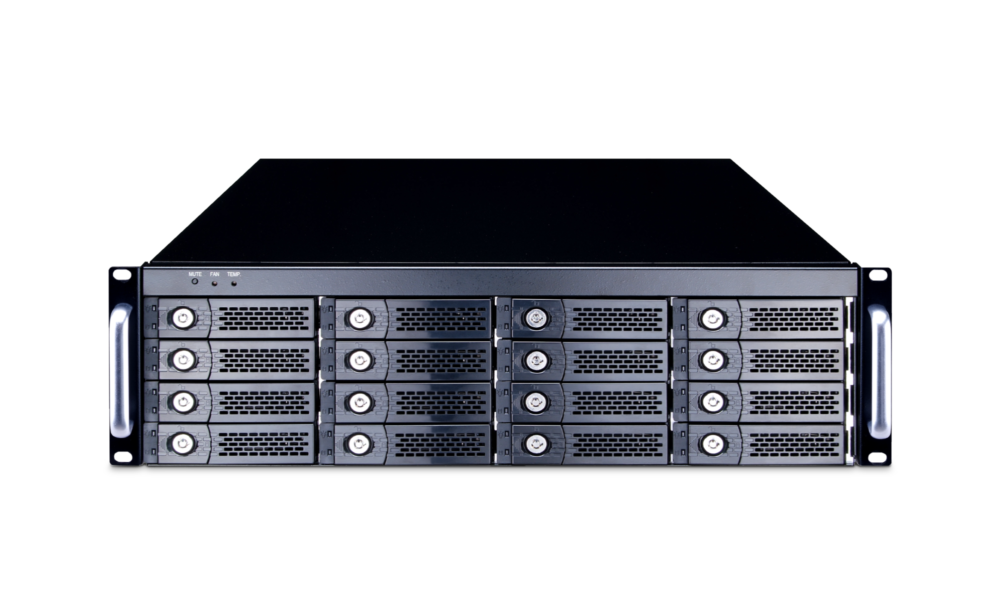

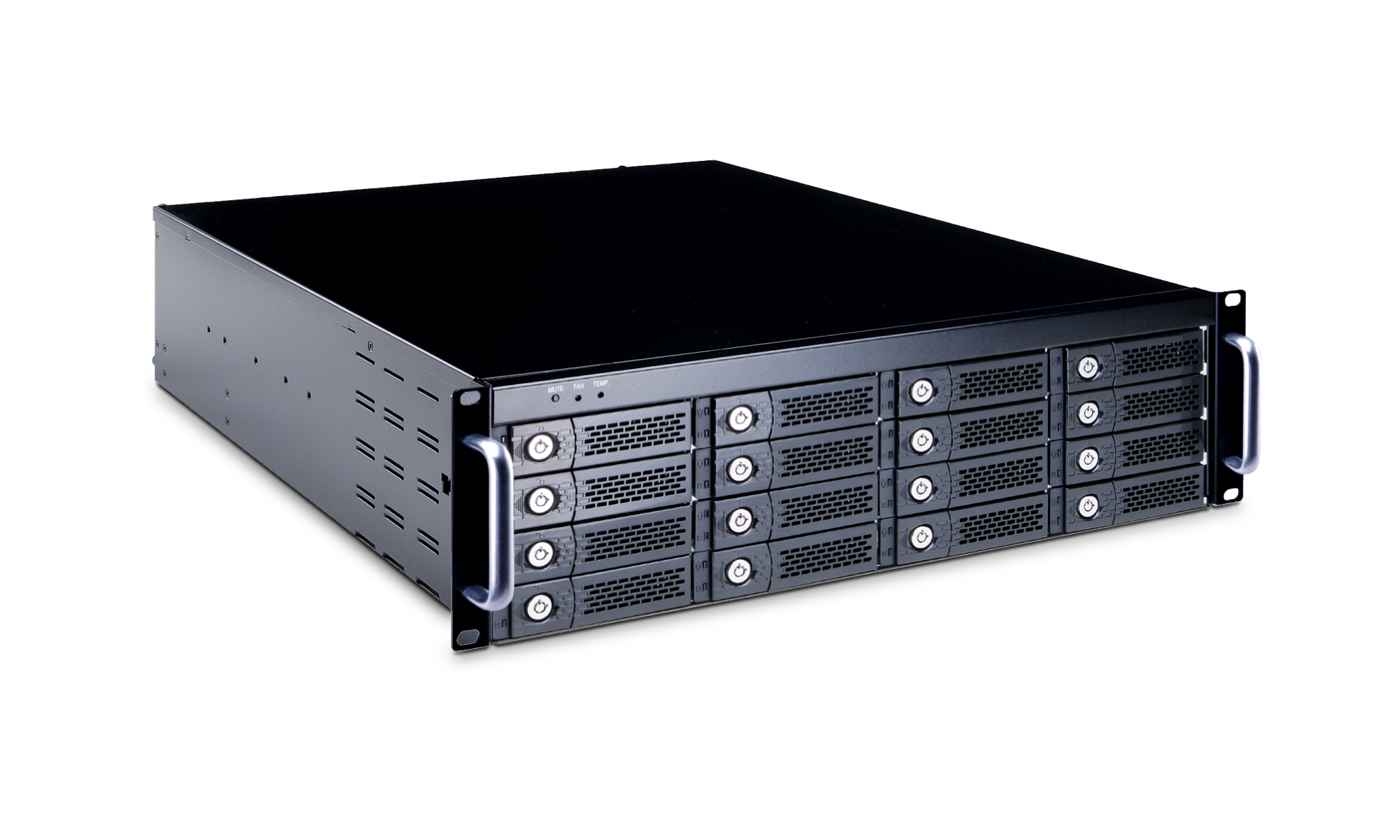

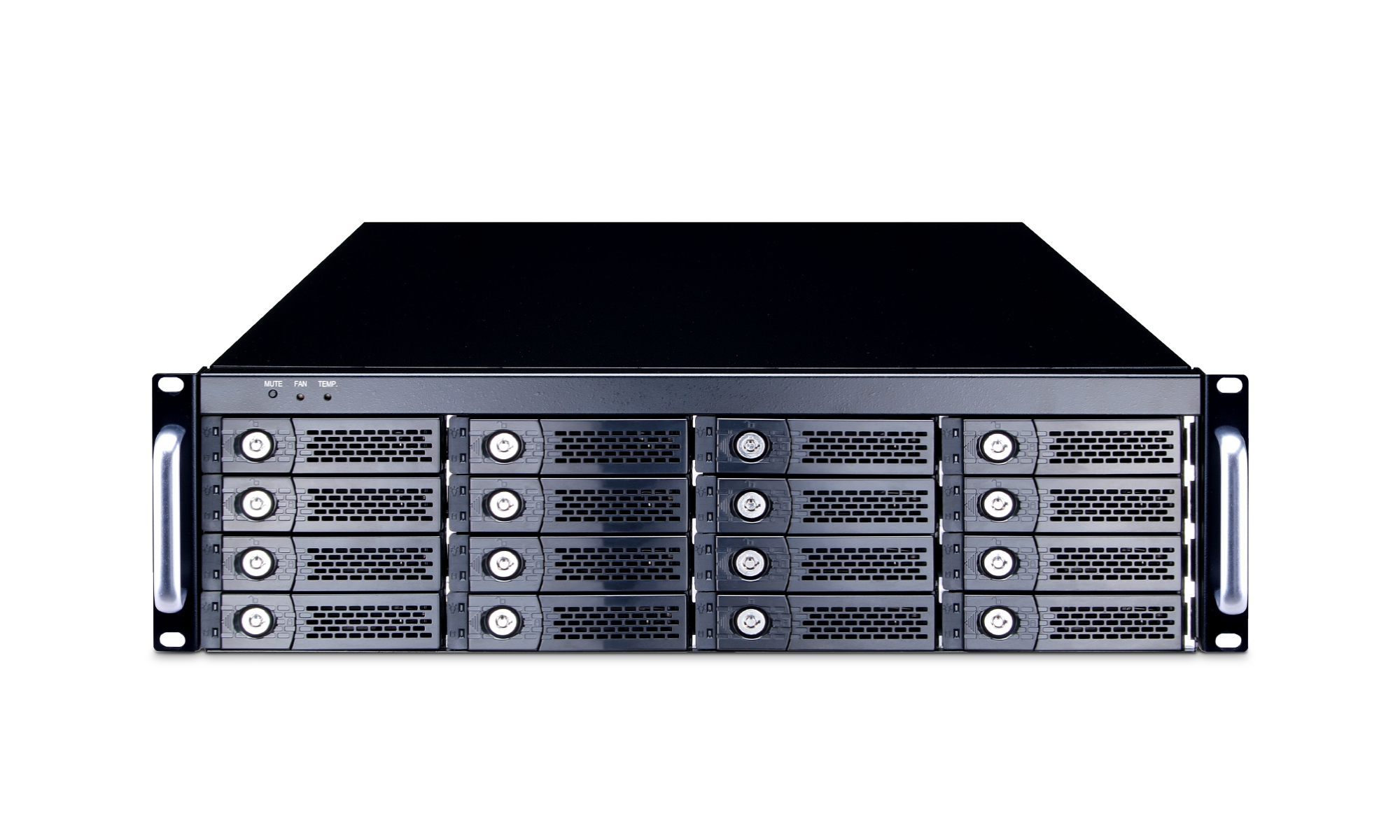

Most Space Utilization Efficiency Storage Enclosure

Designed 3U 16-bay storage chassis, the NA333A-G3 supports the most space utilization efficiency characteristic, featuring the utmost high-density trait that makes the storage be excellently fitted in any site for work. With the support of sixteen hot-swappable drive trays, as each tray attached with 12 TB HDD, total usable storage is up to 192 TB capacity in favor of any production and application.

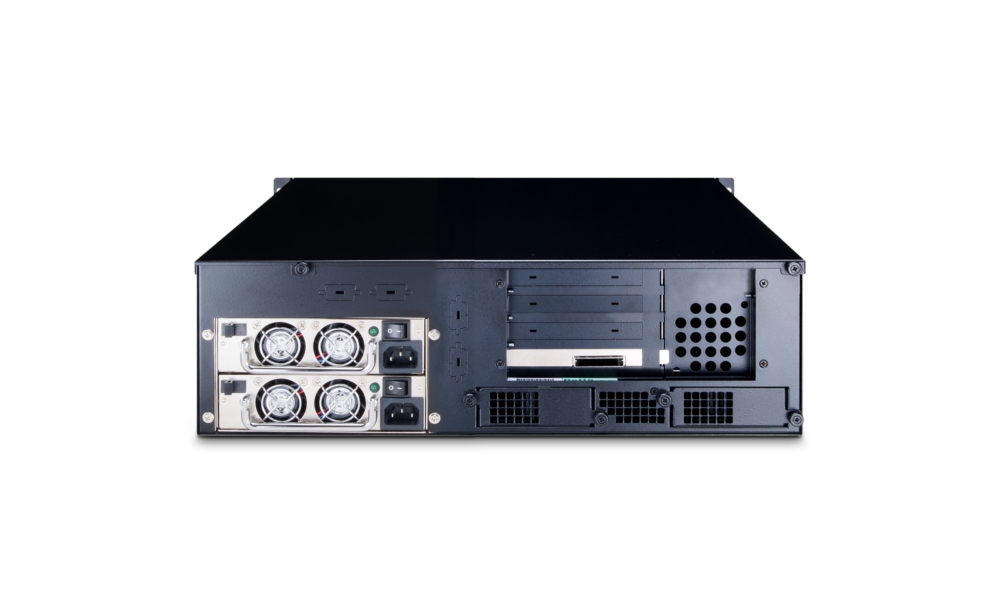

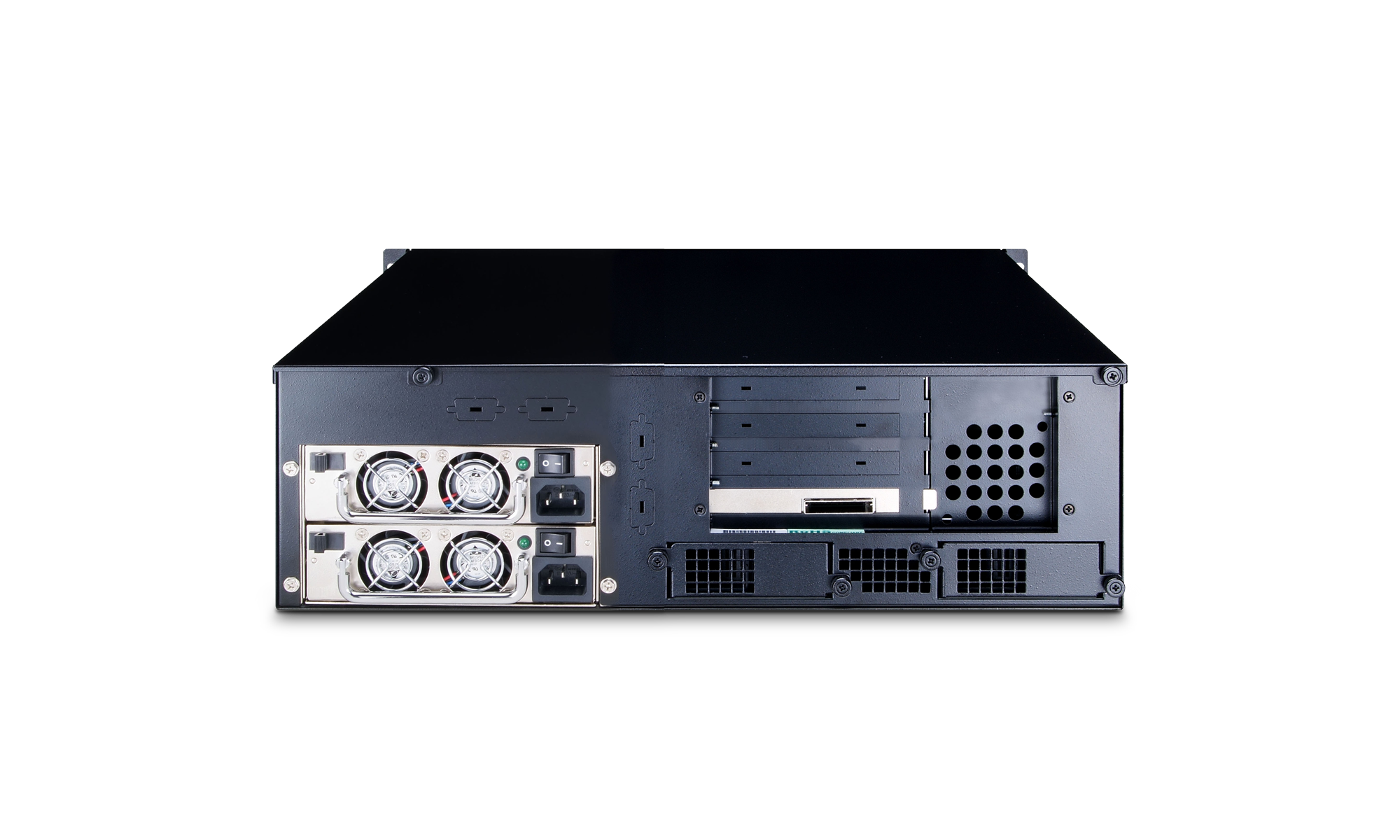

PCIe Expansion Single Slot to Three Slots

The first-rate and powerful design function for NA333A-G3 is to transform any single PCI Express slot on computer motherboard into three available PCI Express slots for users in favor of high performance and production. Except the necessary RAID card to be added, the IT administrators can still choose to attach two more third-party PCIe cards in Netstor unit to add extra accomplishments to computer servers.

Wide Range of RAID Card Support

Based on the application and demands, users can choose their own desired brand/model of RAID card or SAS Host Bus Adapter (HBA) in the rackmount storage for work. By utilizing a sixteen port RAID card, the Netstor JBOD immediately turns into an enterprise RAID storage with RAID level protection including 0, 1, 10, 3, 5, 6, 30, 50, and 60.

Redundant High-Efficiency PSU

The Netstor 3U storage is built with an industrial, server-grade 400W redundant PSU that is guaranteed to have the highest reliability to the users and the IT system integrators in support of 24/7 operation application with no system downtime to continuously working with the computer server/workstation. In addition, the PSU has considerately reserved one Molex 4-pin power cable for PCIe add-on card in the Netstor unit for extra power.

Multi Platform Support

The NA322A-G3 is created to support all kinds of computer operating system platforms, and the storage itself simply doesn’t require a driver for operation and application. Thus the Netstor 12-bay storage does work with all computers/servers running Windows/Linux and tower Mac Pro running macOS.

Product Description

NA333A-G3
Host InterfaceExternal PCIe 3.0 x8
Data Transfer RateUp to 64Gbps
HDD InterfaceSAS/SATA (6G/3Gbps)
No. of Disk(s)Up to 16 (For 3.5″ HDD & sold separately)
RAID LevelsRequires a RAID card with internal 16 port (RAID card sold separately)
PCIe Slot ExpansionThree PCIe3.0 x8 slots (Two slots are available for PCIe x16 cards)
Storage ExpansionNA333A-G3 can be daisy chain together as many as the RAID control card can be recognized by Host PC or Server
LED Display for each TrayWhite – Power On Indicator Flash Blue – HDD Accessing Indicator Red – HDD Failure Indicator
AlarmMutable buzzer beeping for fan failure or over temperature occurs
MaterialHeavy-duty cold-rolled steel Housing
Power Supply400W Redundant PSU Input: 90-230 VAC/50-60 HZ Output: +5V and +12V
Dimension559(D) x 482(W) x 131(H) mm 22 (D) x 19 (W) x 5.16 (H) inch
CoolingTwo 80x 80x 25mm (inner) Two 75x 75x 28mm Blower (rear)
System SupportWindows, Linux, Mac OS
O.S. SupportOS Independent
PCIe card Driver RequestThird-party PCIe card should support OS driver
PCIe card Size AvailableCard length within 305mm and full height PCIe card
Operating Temperature5 to 40°C (41 to 104°F)
Storage Temperature-10 to 50°C (14 to 122°F)
Relative Humidity20 to 80% (non-condensing)
Package ContentEnclosure x 1 HDD Tray x 16 (Installed) PCIe 3.0 x8 Host Adapter x 1 PCIe Gen3 x8 cable x 1 (1.5 meter) Internal miniSAS cable x 4 Hard Disk Drive mounting screw x 64 Key for HDD tray x 2 Power Cord x 2
