Features

  • EOL (End-of-life)

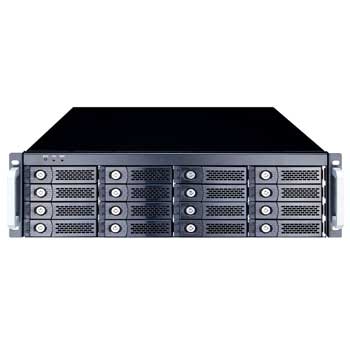

  • Rugged 3U 16-Bay Rackmount Chassis
  • Host interface up to 40Gbps bandwidth
  • Supports Sixteen(16) SAS/SATA(3Gb/s or 6Gb/s) drives
  • Supports up to 3 PCI-Express slots for Raid Card and any standard add-on cards
  • Individual Key lock of each HDD tray for physical security
  • Environmental monitoring for FAN failure and over temperature
  • Server-grade redundant power supply for zero-down-time

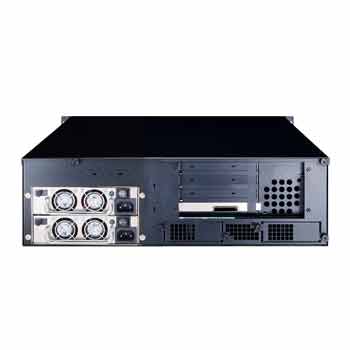

NA333A-R 3U-16 bay SAS/SATA JBOD with PCIe Slot Expander Product Description

Host Interface External PCI-Express 2.0 x8
HDD Interface SAS/SATA 3.0/6.0 Gbps
Data Transfer Rate Up to 40Gbps
PCI-e Slot Expansion 1*PCI-e 8x(8 Lane) slot or 2*PCI-e 4x(4 Lane) slots
Storage Expansion NA333A can be daisy chain together as many as the Raid Control Card can be recognised by Host PC or Server.
LED Display(Tray) White – Power on indicator
Blue – Busy (HDD Accessing) indicator
LED Display for Environmental Monitoring FAN normal – Green; fail – Red (too slow rpm or stop)
TEMP normal – Green; over 50°C – Red
Dimension 55.9(D) x 48.2(W) x 13.1(H) cm
Material Heavy-duty cold-rolled steel
Power Supply 400W mini-Redundant
Input: 90 – 230 VAC 50- 60 Hz
Output: +5V and +12V DC
Cooling Two 75 x 75 x 28 mm Hot-Swappable Blowers
O.S. support OS Independent (OS will be provided from the PCI-e Raid Control card manufacturer)

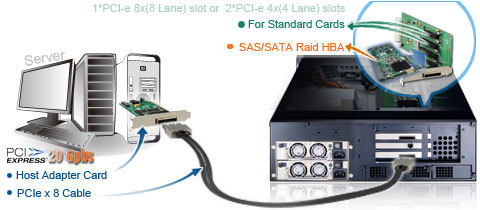

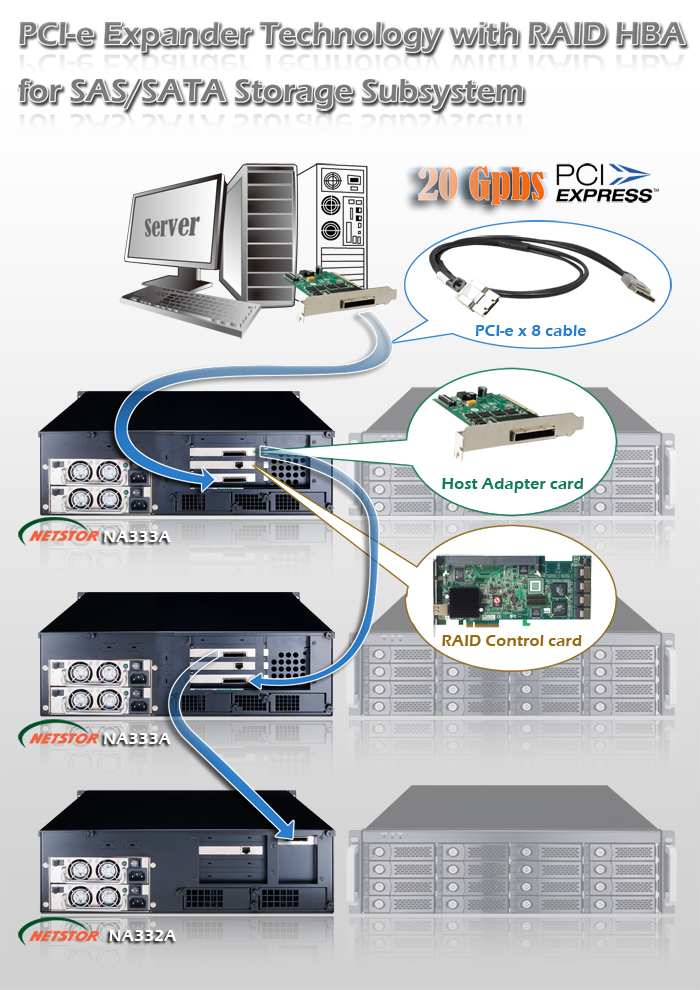

Daisy Chain Diagram Explanation

NA333A(Daisy_Chain_Explanation)NA333A_application
NA333A-R is the second generation of PCI-e(Host) to SAS/SATA 3/6 Gbps(Disk) 3U-16 bay storage product line from Netstor. It’s not only an external storage capacity expansion but also features PCI-Express slot expander to solve the PCI-e slot shortage problem in 1U or 2U server while you want to expand the big sotrage capacity as well as the PCI-e slot(s).

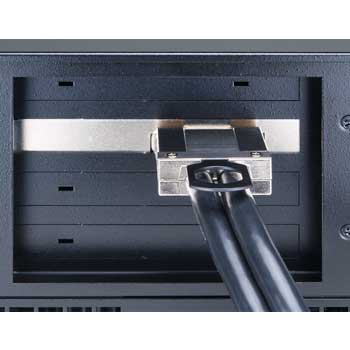

The chassis pacakge is including a PCI-Express host adaptor and an external PCI-e 8x cable for you to convert and connect the host system internal PCI-E slot becoming external port into NA333A-R and it’s designed to provide up to three(3) PCI-e slots for plugging any standard SAS/SATA PCI-e Raid card to configue the NA333A-R to be Raid Subsystem and any PCI-e add-on card while PCI-e slot is shortage in the existing server or workstation. It means NA333A-R only requests a PCI-e slot from host server but provides a mass stoage capacity and 3 more PCI-e slots to customer.

Host Requirement and Cable length available

  • Apple Mac Pro or PC workstation with one available PCI-e x8 slot
  • External PCI-e cable available length – up to 7 Meter

Validated SAS/SATA HBA

NA333A  Adaptec RAID 51645 NA333A 3ware SAS 9750-16i4e
NA333A Adaptec RAID 31605 NA333A MegaRAID SAS9280-16i4e
MegaRAID SAS 9260-16i
NA333A ARC-1880ix-16 NA333A  RocketRAID 3540
NA333A ARC-1882ix-16 NA333A EXPRESSSAS R60F

Enclosure x 1
HDD Tray x 16
PCI-e 8x Host Adaptor with standard and low profile host bracket x 1
PCI-e 8x cable (1.5 meter) x 1
Internal miniSAS(SFF8087) to miniSAS(SFF8087), 30cm x4
Power Cord x1
Hard Disk Drive mounting screw x 64
Key for HDD tray x 2
