Features

  • Thunderbolt 3 interface with up to 40Gbps throughput

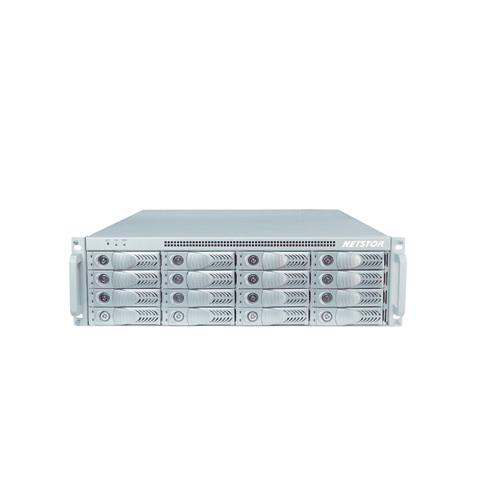

  • Solid 3U 16-bay rackmount chassis

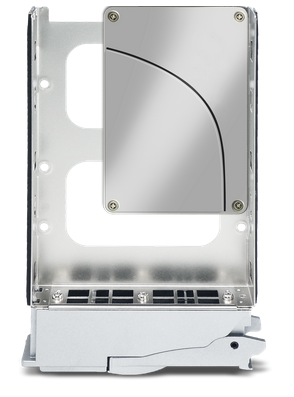

  • Supports sixteen (16) SAS/SATA (6G/3Gbps) HDD Trays for both 2.5″ and 3.5″ HDD Trays
  • Supports up to 3 PCIe slots for RAID card, Fibre Channel HBA/10G networking card, and any standard PCIe add-on cards with Thunderbolt Aware’s Driver.
  • Server-grade redundant power supply for zero-down-time

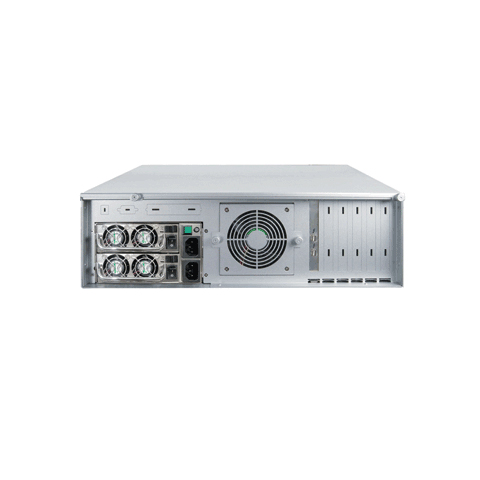

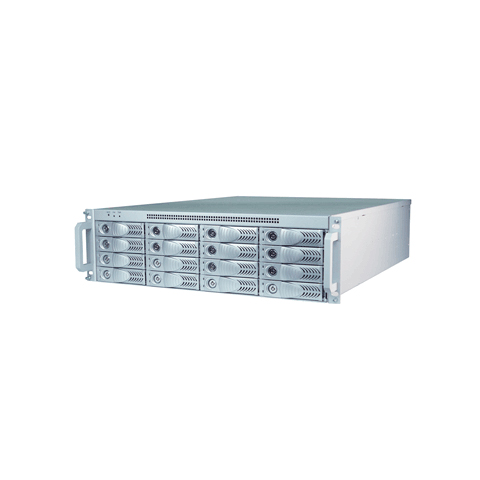

NA333TB3 3U 16 bay Thunderbolt 3 JBOD and PCIe Expansion Product Description

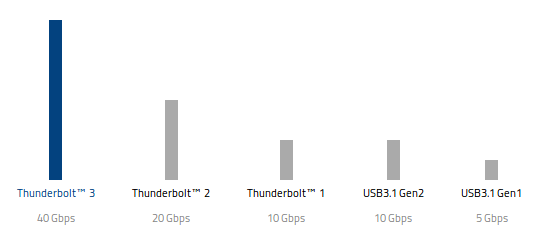

Thunderbolt 3 High-Bandwidth 40Gbps
The Netstor NA333TB3 16 bay Thunderbolt 3 JBOD and PCIe expansion is designed to have greatly high bandwidth for fastest data storage access and operation with multiple professional PCIe cards. Based on the application and demands, users and professionals are able to choose their own desired brand, model of RAID card in the Thunderbolt™ 3 rackmount storage to work. By utilizing a sixteen-port RAID adapter card inside, the Netstor JBOD immediately turns into an enterprise RAID storage with RAID level protection including 0, 1, 10, 3, 5, 6, 30, 50, and 60.

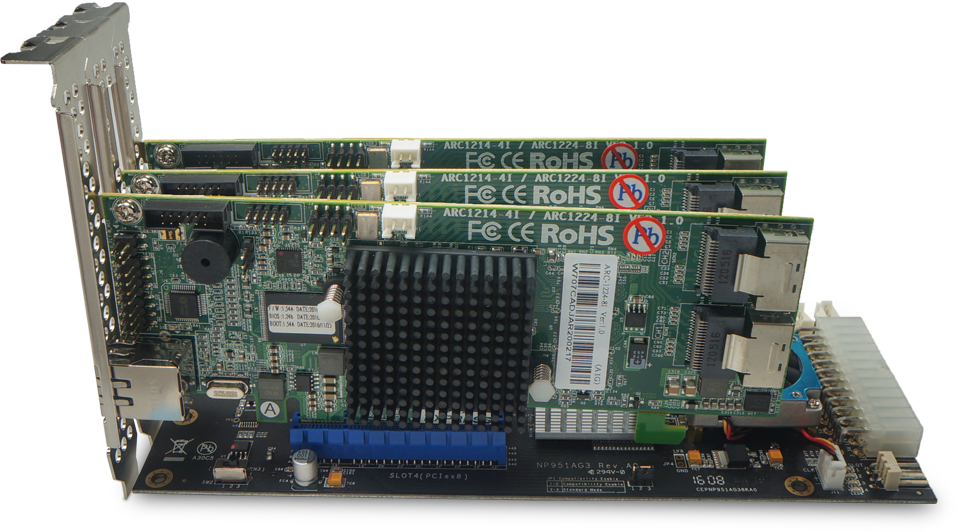

Up to 3 PCIe Cards Expansion
Three PCIe 3.0 slots within the storage chassis are created for users to make easy expansion of varied specialty PCIe cards to the Thunderbolt 3 Mac. Except the required RAID adapter card to be added, the professionals can still choose to attach two more pro cards such as video capture, video transcoding, audio accelerator, network card and so on in the 3U storage to add extra performance to the Thunderbolt Mac.

The Storage Ready for World-Class Editing and Server Application

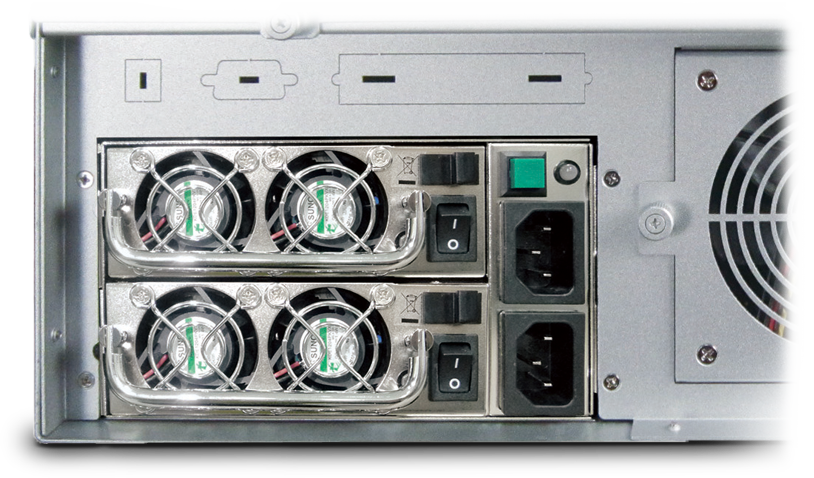

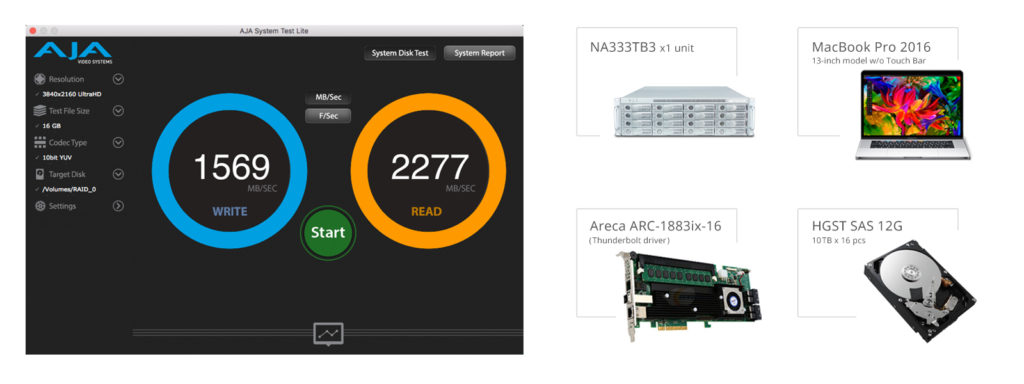

The Thunderbolt™ 3 storage provides the fastest ever lightning transfer speeds up to 2750 MB/s to the host computer for all kinds of data archiving and real-time editing. Also, the storage’s drive tray has been considerately designed to work with both 2.5” HDD/SSD and 3.5″ hard drive for professionals with diverse demands on speed or immense storage capacity. Additionally, the built-in server-grade 500W low noise redundant PSU ensures application runs 24/7 with no system downtime and continually works with Thunderbolt 3 server.



Host InterfaceThunderbolt 3 (Dual Port for Daisy Chain)
Data Transfer Rate40Gbps Bi-directional
HDD InterfaceSAS/SATA (6G/3Gbps)
No. of Disk(s)Up to 16 (2.5″ or 3.5″ HDD are sold separately)
RAID LevelsRequires a RAID card with internal 16 port and Thunderbolt driver(RAID card sold separately)
PCIe Slot Expansion3 x  PCIe 3.0 x8 slots

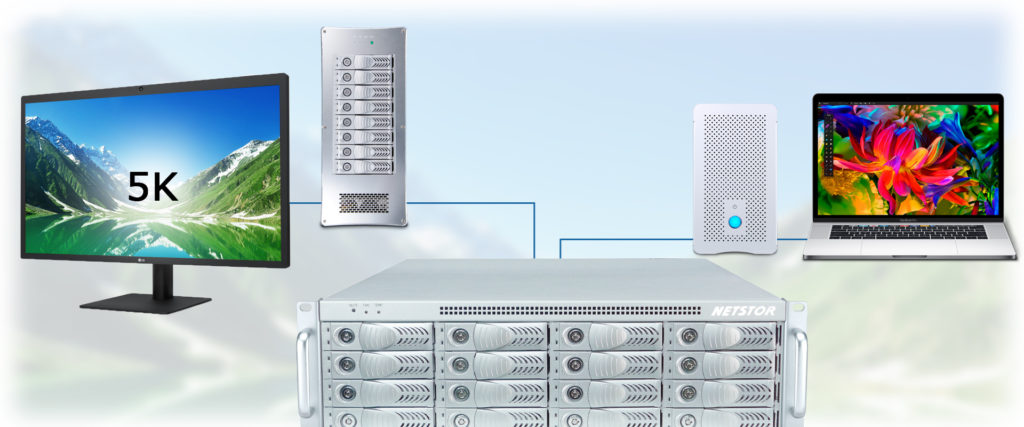

Thunderbolt ExpansionUp to Six Thunderbolt devices
LED Display for EnclosureFan normal – green; Fan failure – red
Temp. normal – green; Temp. over 50°C – red
LED Display for each TrayWhite – Power On Indicator
Flash Blue – HDD Accessing Indicator
Red – HDD Failure Indicator
AlarmMutable buzzer beeping for fan failure or over temperature occurs
MaterialHeavy-duty cold-rolled steel Housing
Power Supply80 Plus Silver500W Redundant PSU (High-Efficiency & Low Noise)
Input: 90-230 VAC/50-60 HZ
Output: +5V and +12V
Dimension559(D) x 482(W) x 131(H) mm
22 (D) x 19 (W) x 5.16 (H) inch
CoolingThree 90 x90 x25 mm
System SupportMacBook Pro(2016) with a Thunderbolt 3 port
Note: Thunderbolt 2 Mac will request a Thunderbolt 3(USB-C) to Thunderbolt 2 adapter from Apple.
O.S. SupportMac OS X 10.12.3 and above
PCIe card Driver RequestThird-party PCIe card should support Mac OS with Thunderbolt aware’s driver
PCIe card  Size AvailableFull length and full height PCIe card
Storage Temperature5 to 40°C  (41 to 104°F)
Operating Temperature-10 to 50°C  (-14 to 122°F)
Relative Humidity20 to 80% (non-condensing)



16 bay thunderbolt 3 jbod and pcie expansion

<tdATTO

Brand Name

 Model

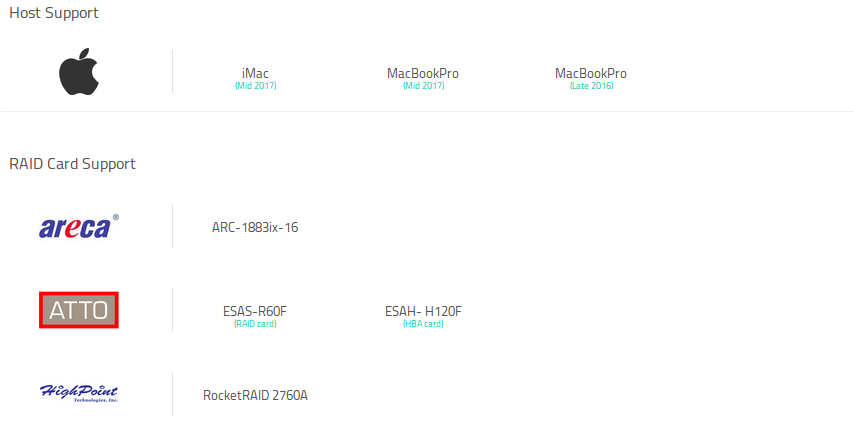

Host Support
Apple• MacBook Pro(2016) with a Thunderbolt 3 port (Mac OS X 10.12.3+)
Note: Thunderbolt 2 Mac will request a Thunderbolt 3 (USB-C) to Thunderbolt 2 adapter from Apple.
RAID Card Support
Areca• ARC-1882ix-16 (Driver)     • ARC-1264IL-16 (Driver)
• ARC-1883ix-16 (Driver)
• ExpressSAS R60F (version 2.0+)

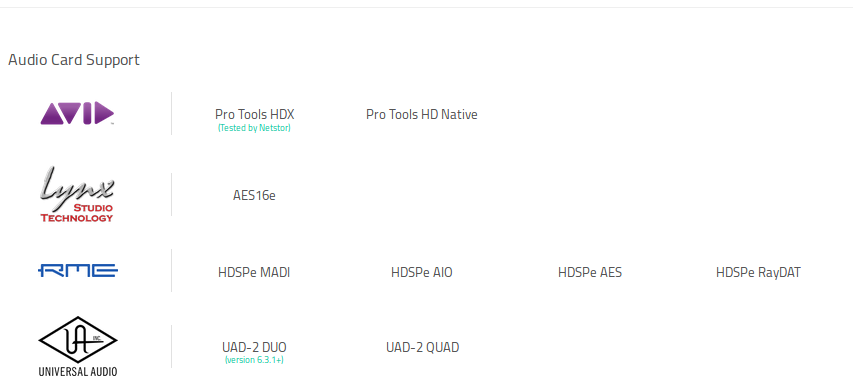

Audio Card Support
RME• HDSPe MADI        • HDSPe AIO
• HDSPe AES          • HDSPe RayDAT
Universal Audio• UAD-2 DUO         • UAD-2 QUAD
(version 6.3.1+)

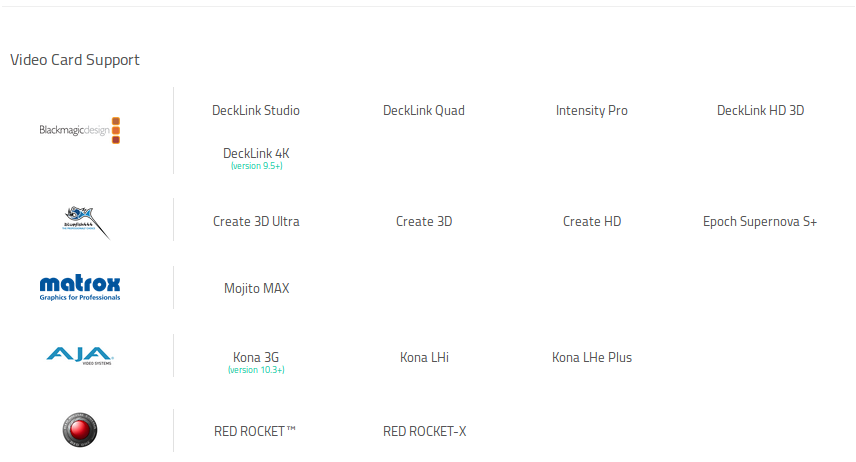

Video Card Support
BlackMagic• DeckLink Studio   • DeckLink Quad   • Intensity Pro
• DeckLink HD 3D   • DeckLink 4K (version 9.5+)
Matrox• Mojito MAX
AJA• Kona 3G            • Kona LHi       • Kona LHe Plus
(version 10.3+)
RED• RED ROCKET™   • RED ROCKET-X

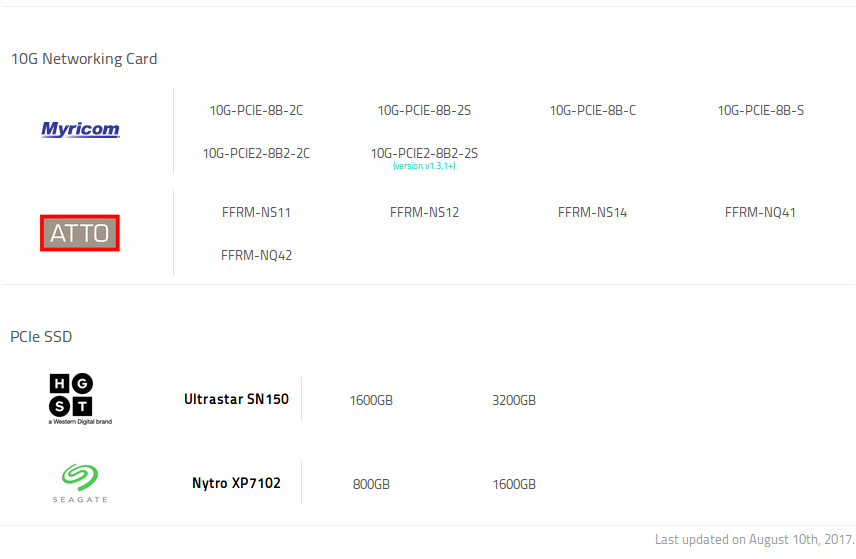

10G Networking Card
 ATTO• Fast Frame NS11   • Fast Frame NS12
• Fast Frame NS14   • Fast Frame CS11
• Fast Frame CS12   • Fast Frame CS14
 Myricom• 10G-PCIE-8B-2C  • 10G-PCIE-8B-2S ?10G-PCIE-8B-C
• 10G-PCIE-8B-S    • 10G-PCIE2-8B2-2C
• 10G-PCIE2-8B2-2S  (version v1.3.1+)

Small Tree

• PETG1 series    • PETG2 series    • PETG4 series
(version v2.14+)
  • Enclosure x 1
  • HDD Tray x 16 (Installed)
  • Thunderbolt 3 active cable x 1 (2 meter)
  • Manual CD-ROM x 1
  • Hard Disk Drive mounting screw x 64
  • Key for HDD tray x 2
  • Power Cord x 2
Model No.Description

NA333TB3

3U 16 bay Thunderbolt 3 to Combo SAS/SATA JBOD and PCIe Expansion Chassis, with redundant 400W Power Supply, One Thunderbolt active cable (2 meter)
BARC1883IX16Areca’s ARC-1883ix-16, internal 16 port SAS/SATA RAID Adapter, Dual Core RAID-on-Chip 1.2GHz processor, Supports RAID level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD
