Features

  • Supports SAS/SATA (3/6 Gbps)
  • 2* miniSAS interface for easy connection
  • Backplane design for up to 8 removable SAS/SATA drive trays
  • Fan cooler for self-contained ventilation
  • Individual key lock of each HDD tray for physical security
  • LED indicators for power and activity on each HDD tray
  • Environmental Monitoring with FAN/TEMP LEDs and mutable buzzer alarm.

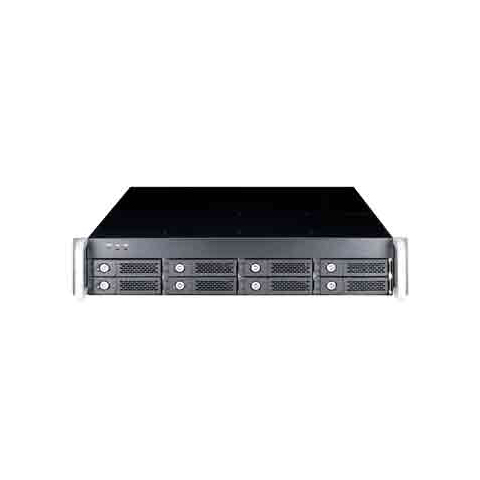

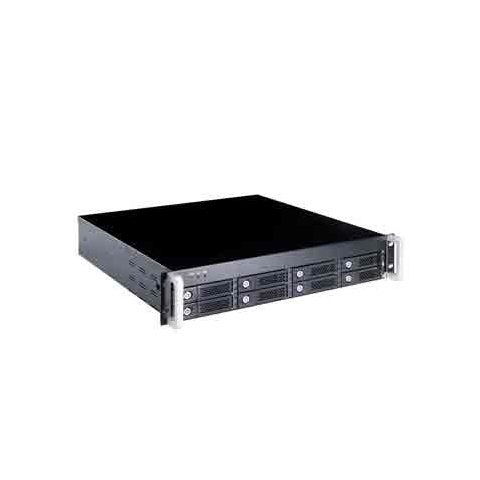

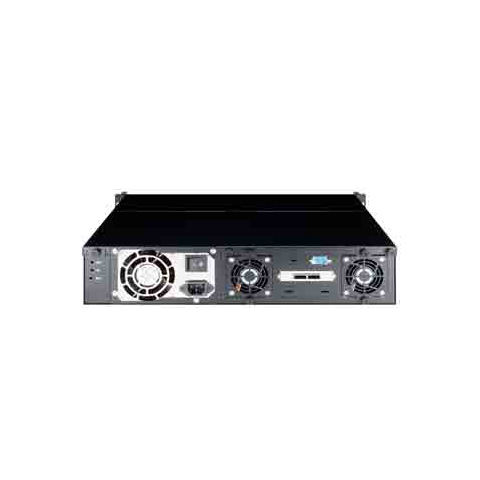

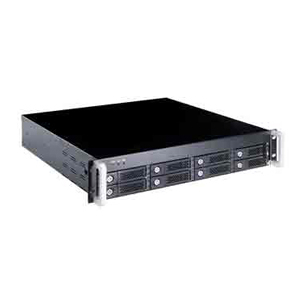

NA341A-R 2U 8-Bay Rackmount JBOD Chassis Product Description

Host Interface SAS/SATA 3/6 Gbps (Two miniSAS connector)
HDD Interface SAS/SATA 3.0/6.0G bps
Data Transfer Rate SAS/ SATA 3/6 Gbps
LED Display White – Power on indicator
Blue – Busy (HDD Accessing) indicator
LED Display for Environmental Monitoring FAN normal – green; fail – red (too slow rpm or stop)
TEMP normal – green; over 55°C – red
Dimension 456(D) x 482(W) x 88.5(H) mm
20 (D) x 19 (W) x 3.48 (H) inch
Material Heavy-duty cold-rolled steel
Power Supply 400W mini Redundant
Input: 90 – 230 VAC 50- 60 Hz
Output: +5V and +12V DC
Cooling Two set of 60 x 60 x 25 mm Hot-Swappable Fans
O.S. support OS Independent

NA341A

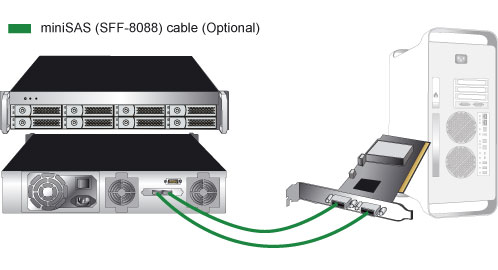

NA341A-R is an external 2U-8 Bay Hot-Swap SAS/SATA Rackmount Enclosure. It provides users a flexible solution for up to 8 SAS or SATA HDD and high performance external data storage solution for HD of 1080i Video Editing or any high resolution video platform. This 2U 8 Bay external SAS/SATA JBOD is designed with two convenience of External miniSAS(SFF8088) interface brings users an easy installation and enjoy fast data transmission experience.

Enclosure x 1
HDD Tray x 8
mini SAS Cable x 2 (Optional)
Power Cord x 1
Manual CD-ROM x1
Hard Disk Drive mounting screw x 32
Key for HDD tray x 2

Cable
AAMMM1 External miniSAS (SFF8088) to miniSAS (SFF8088), Length: 1m

NA341A USB1Solution for Host Connector External miniSAS (SFF8088)
AAMSM1 MultiLane Screw (SFF8470) to miniSAS (SFF8088), Length: 1m

NA341ASolution for Host Connector MultiLane (SFF8470)
Tray
ANNA920C0340 Spare Black Color Tray with Retail Package
