NA762TB Thunderbolt 2 RAID Storage Desktop 8 Bay Product Description

Host Interface:‧ Thunderbolt 2
‧ 20Gbps Bi-directional
Controller & RAID Feature:‧ RAID-on-Chip Processor
‧ SDRAM
‧ Supports RAID Level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD
‧ Multiple RAID Selection
‧ Online Array Roaming
‧ Online RAID Level/Stripe Size Migration
‧ Online Capacity Expansion and RAID Level Migration Simultaneously
‧ Greater than 2TB Capacity per Disk Drive Support
Storage:‧Supports up to 8 SAS/SATA 3Gb/s or 6Gb/s 3.5″ HDDs
(Hard Disks Sold Separately)
‧Stylish Aluminum Housing with Solid Metal Structure
‧Thunderbolt Port for Daisy-chain up to 6 Devices
‧Individual Key lock of each HDD tray for physical security
Monitors/Indicators :‧Web base GUI RAID Manager for Remote Management
‧SMTP Support for Email Notification
‧SNMP Support for Remote Manager
‧FAN fail LED
‧Over Temperature LED
‧HDD fail LEDs
Fan Cooler:‧Two 80x 80x 25mm
‧Hot-Swappable
Power Supply:‧Server-grade 300W Single Power Supply
‧Low-noise Design
‧Universal: 100~240VAC, 50/60Hz
Environmental Requirements: ‧Operation Temperature: 5℃ ~ 50℃
‧Storage Temperature: -20℃ ~ 70℃
‧Operation Humidity: 10% ~ 80%, non-condensing
‧Storage Humidity: 5% ~ 95%
Dimension:‧231(D) x 156(W) x 365(H) mm
‧9.1(D) x 6.1(W) x 14.4(H) inch
Operating System:‧ Mac OS X 10.6.x/ 10.7.x/ 10.8.x /Mavericks
(Driver was integrated by Apple OS X Mountain Lion/OS X Mavericks)
Scalibility:‧Thunderbolt port for daisy-chain up to 6 devices

1352444026

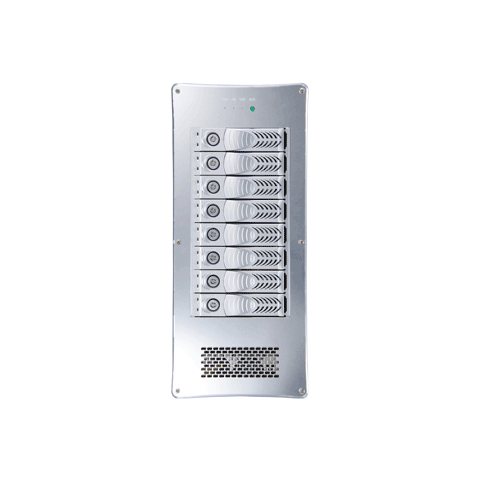

8 Bay Thunderbolt™ RAID Storage for Desktops

Netstor’s NA762TB is a Thunderbolt™2-enabled, 8-bay, Desktop RAID subsystem developed with the latest, 20Gb per second high-speed I/O technology. With high-performance RAID-on-chip hardware and SDRAM memory installed, the NA762TB guarantees fast delivery and secure data protection that makes it ideal for video editing professionals engaging in high-definition, 2K, 4K, and 3D stereoscopic digital content creation.

1a



















The Versatile Storage Pro

The NA762TB features two Thunderbolt ports for daisy-chaining with other Thunderbolt devices. This allows users to take advantage of lightning-fast 20Gbps bi-directional data transfers while simultaneously playing back both high-definition audio and video. Video editing professionals can also choose Netstor’s own TurboBox™ PCIe expansion enclosure can be daisy-chained with the NA762TB so users can add professional video capture cards along with other expansion cards.

Easy Maintenance and Real-Time Synchro
The NA762TB RAID subsystem supports plug-n-play functionality and is OS driver embedded, allowing synchronous powering on and off with the host Thunderbolt device. Users can easily add a monitor to the NA762TB via software host software or via a web-based GUI using an Ethernet cable. With the innovation of Thunderbolt technology, video editors are able to transfer 4K video and data backup within very short periods of time.

  • Enclosure x 1
  • HDD Tray x 8 (Installed)
  • Thunderbolt cable x 1 (2 meter)
  • Manual CD-ROM x1
  • Hard Disk Drive mounting screw x 32
  • Key for HDD tray x 2
  • Power Cord x 1
Model No.Description

NA762TB

Desktop 8 bay Thunderbolt SAS/SATA RAID Subsystem, Dual Thunderbolt Ports for Host and Daisy-chain, with Single 400W Power Supply, One Thunderbolt 2 meter cable
TRAYSilver Color Short Tray for NA762TB
