Features

  • Backplane desing supports eight(8) SATA II 3Gbps drives
  • Front-end Dual Gigabit Ethernet TCP/IP offload device
  • Hardware RAID Intel IOP 331 64-bit processor
  • Supports Raid levels 0, 1, 0+1, 5, 6, 50, 60 & JBOD
  • Bulit-in LCD panel for easy control & operation
  • Online volume expansion & migration
  • Supports MPIO in Windows 2000 & Windows 2003 Server system
  • Event notification via Email, SNMP trap, Windows & bower

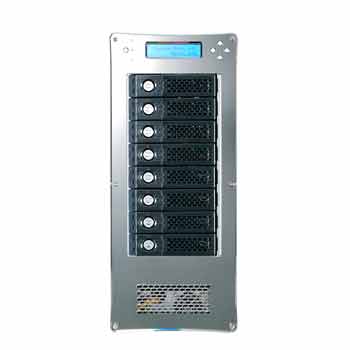

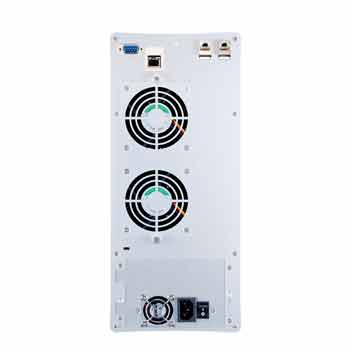

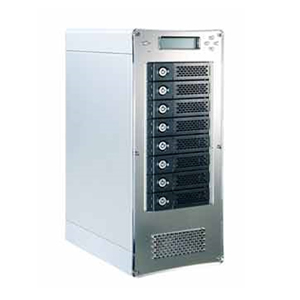

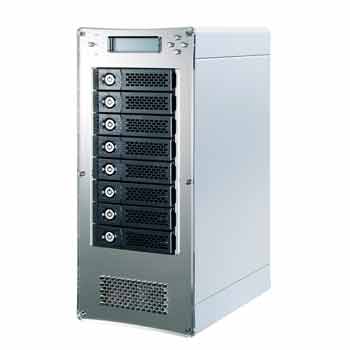

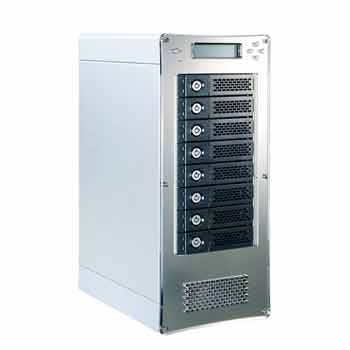

NR760A Desktop Raid Storage 8 bay iSCSI GbE to SATA Product Description

Host Interface Dual port iSCSI Gigabit Ethernet
HDD Interface SATA II (3Gbps)
No. of Disk(s) Up to 8
CPU & Memory Intel IOP 331 & 512M DDR1
Raid function RAID 0, 1, 0+1, 3, 5, 6, 50, 60 & JBOD
LED Display for each Tray Green – Power On Indicator
Blue – Busy(HDD Accessing) indicator
LED Display for Environmental Monitoring POWER on LED – white
FAN normal – green; fail – red (too slow rpm or stop)
TEMP normal – green; over 55°C – red
Material Anodized Aluminum Housing and Plastic Front Panel
Dimension (D):23.15cm (W):15.68cm (H):36.5cm
Power Supply Universal Single 300W (IPC-grade)
(Available in optional 350W Redundant)
Cooling Two 8 x 6 x 2.5 cm Hot-Swappable Cooling Fans
O.S. support Supports VMware ESX3.5, Compatible with Windows, Linux & Mac system

The NR760A is a world-class stylish desktop 8 bay iSCSI-to-SATA IP Raid storage with the elegant anodized aluminum appearance and solid material stucture inside that keep drives protection and good-looking in the same enclsoure. It features a fashion-blue color LCD panel for easy control and operation, a server-grade 300W universal power supply for running reliability and dual Gigabit iSCSI ports for high speed data transfer rate and sharing.

Hareware Raid Integrated

Netstor’s NR760A uses Intel 331, 64-bit Xscale processor to be core engine that can deliver the performance while running by dual Gigabit iSCSI channel and supports the hareware Raid levels from Raid 0, 1, 0+1, 3, 5, 6 & JBOD in wide range Raid function selection for data protection.

Enclosure x 1
HDD Tray x 8
Power Cord x 1
Manual CD-ROM x1
Hard Disk Drive mounting screw x 32
Key for HDD tray x 2



Tray
ANNA920C0340 Spare Black Color Tray with Retail Package

NR760A
