Features

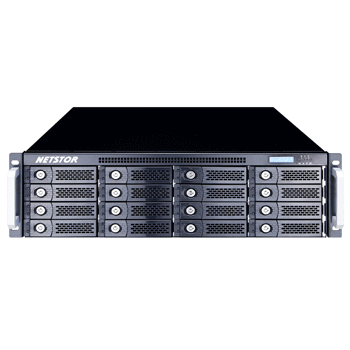

  • Robust 3U 16-Bay Rackmount Chassis
  • Backplane design for Sixteen(16) 3.5″ SAS/SATA 12G/6G bps Drives
  • Built in 12Gb/s SAS Expander for single miniSAS-HD (SFF8644) cable connectivity
  • Supports Two(2) miniSAS-HD connectors for next storage expansion
  • LCD control panel for setup, alarm mute and configuration

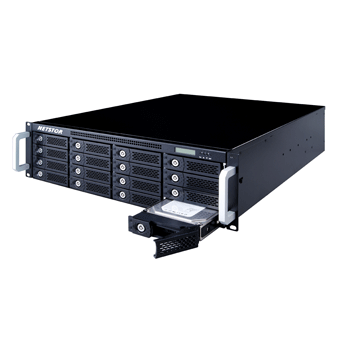

  • Individial Key lock of each HDD tray for physical security
  • LED indicators for HDD power,activity and failure for each removable tray



NS330S-8028 3U 16 Bay 12G SAS JBOD Enclosure Expander Product Description

Host InterfaceOne miniSAS-HD (SFF8644) supports 12G/6Gbps
HDD InterfaceSAS/SATA (12G/6Gbps)
No. of Disk(s)Up to 16
SAS ExpanderBuilt-in 12Gb/s SAS Expander
Expansion PortTwo miniSAS-HD (SFF8644) connectors for next storage expansion
LED Display for each TrayWhite – Power On Indicator
Flash Blue – HDD Accessing Indicator
Red – HDD Failure Indicator
LCD ControlLCD control panel for setup,alarm mute and configuration
LED Display for Enclosure1. Enclosure power LED
Green – Power On
2. Busy LED
Flash green – Host computer accessing the enclosure
3. Fault LED
Red – Enclosure failure
Dimension55.9(D) x 48.2(W) x 13.1(H) cm
MaterialHeavy-duty cold-rolled steel Housing

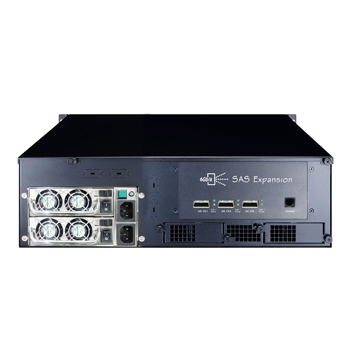

Power SupplyUniversal Redundant 400W (Server-grade)
Input: 90~230 VAC/50-60 HZ
CoolingTwo 7.5 x 7.5 x 2.8 cm Hot-Swappable Blowers
O.S. supportOS Independent



Netstor’s new enterprise-class 3U 16-Bay 12Gb/s SAS Expander JBOD is designed to provide storage expansion for 12G/6Gbps SAS RAID controller or 12G/6Gbps SAS RAID adapter (SAS HBA). It’s equipped with latest 12 Gb/s SAS Expander to support sixteen(16) high-reliable SAS 12/6Gbps drives or high-capacity SATA 6/3Gbps devices from only single miniSAS-HD cable host connectivity and provided two miniSAS-HD connectors to allow to scale up to 7 units of SAS expander enclosure for the most cost-effective storage expansion.

Advanced Storage Management
The NS330S-8028 provides sixteen removable drive trays and each tray built-in power, activity and failure LED indicators for displaying the status of each single Hard Disk. Moreover, the enclosure is integrated a LCD control panel for complete storage management of easy system setup, alarm mute and configuration.

SAS RAID Controller Validation

Areca
12GARC-1883X, ARC-1883LP
6GARC-1880LP, ARC-1880X, ARC-1882 series
ATTO
12GExpressSAS H1280
6GExpressSAS R680
LSI
12GMegaRAID 9380-8e
3Ware
12GMegaRAID 9380-8e

Enclosure x 1
HDD Tray x 16
Power Cord x 2
Manual CD-ROM x1
Hard Disk Drive mounting screw x 64
Key for HDD tray x 2
