Features

  • High density 4U 24-Bay rackmount chassis
  • Backplane design for up to twenty-four(24) 3.5″ SAS/SATA 6G/3G bps drives
  • Built in latest 12Gb/s SAS Expander for single miniSAS-HD(SFF8644) cable connectivity
  • Supports Two(2) miniSAS-HD connectors for next storage expansion
  • SAS daisy chain for max 256 HDDs
  • LCD control panel for setup, alarm mute and configuration
  • Individual Key lock of each HDD tray for physical security
  • LED indicators for HDD power, activity and failure for each removable tray

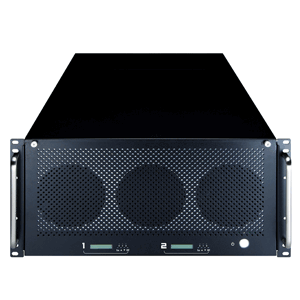

NS390S-8028 5U 48 bay 12G SAS JBOD Chassis Expander Product Description

Host InterfaceminiSAS-HD(SFF8644) up to 48Gbps Highest Bandwidth
HDD InterfaceSAS/SATA (6G/3Gbps)
No. of Disk(s)Up to 48
SAS ExpanderBuilt-in 12Gb/s SAS Expander

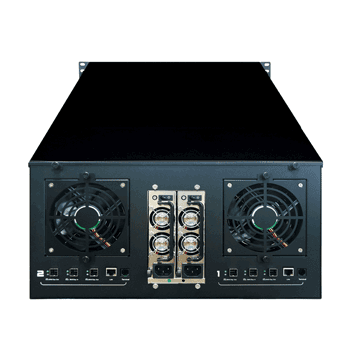

Expansion PortTwo miniSAS-HD(SFF8644) ports for next storage expansion
LED Display for each TrayWhite – Power On Indicator
Flash Blue – HDD Accessing Indicator
Red – HDD Failure Indicator
LCD ControlLCD control panel for setup,alarm mute and configuration
LED Display for Enclosure1. Enclosure power LED
Green – Power On
2. Busy LED
Flash green – Host computer accessing the enclosure
3. Fault LED
Red – Enclosure failure
Dimension79 (D) x 44(W) x 22(H) cm
31 (D) x 17.3 (W) x 8.66 (H) inch
MaterialHeavy-duty cold-rolled steel Housing
Power Supply800W Redundant PSU (High-efficiency 80 Plus )
Input: 90-230 VAC/50-60 HZ
Output: +5V and +12V
CoolingEight Big 12 x 12 x 2.5 cm cooling Fans
O.S. supportOS Independent
Operating Temperature5 to 40°C (41 to 104°F)
Storage Temperature-10 to 50°C (14 to 122°F)
Relative Humidity20 to 80% (non-condensing)

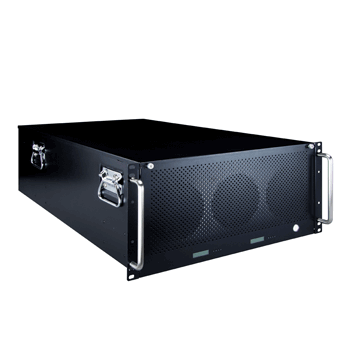

NS390S-8028

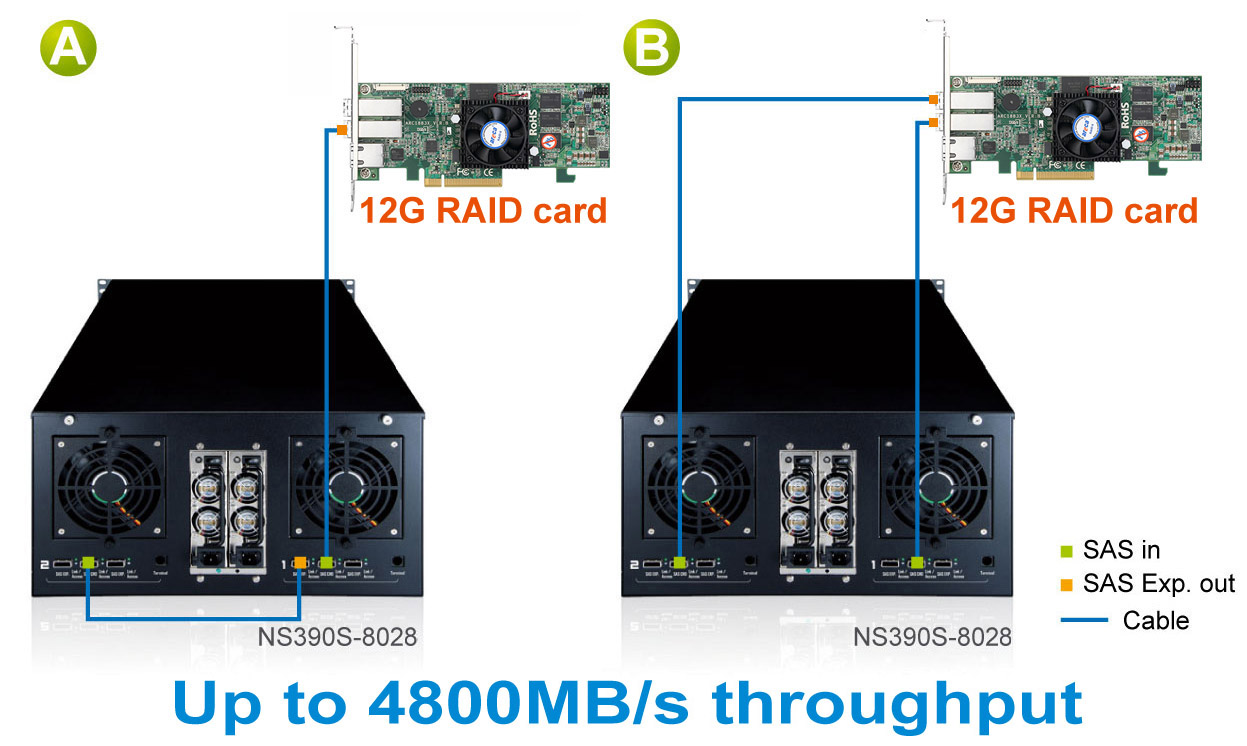

Netstor NS390S-8028 is the most high-density 48-bay 12Gbps SAS Expander JBOD enclosure designed for High Performance Computing application of mass capacity storage. The storage is equipped with the latest 12Gbps SAS Expander supporting forty-eight 3.5-inch 6G/3Gbps SAS/SATA drives, and provides high-speed data rates up to 4800MB/s throughput to the host through single HD mini-SAS SFF-8644 cable connection. By the HD mini-SAS out connectors of NS390S-8028, with only one 12Gbps SAS RAID card, up to 256 HDDs of multiple Netstor SAS Expander enclosures are able to be cascaded for mass storage expansion.

Smart Stagger Power-On Design and DataBolt™ Technology
The NS390S-8028 enclosure adopts high-efficiency 800W redundant power supply, and is designed to stagger the spin-up of the 48 drives. The storage spins up the HDDs in two groups, allowing drives to come ready without PSU overloaded by the startup current from drives’ spinning up all at once. The NS390S-8028 is equipped with the new LSI DataBolt™ technology that intelligently aggregates, buffers 6G/3Gbps data and transfers it to host at 12Gbps speeds, delivering up to a 2x increase in throughput performance, allowing users to take advantage of the 12Gbps speeds when using current 6G/3Gbps SAS/SATA HDDs.

Most Space Cost Saving Enclosure with Extensive Storage Management

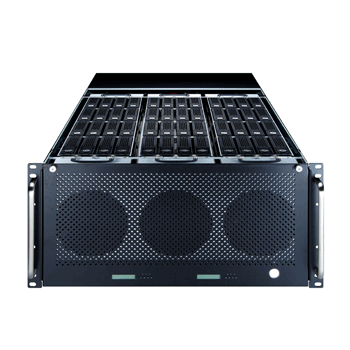

The high-density 12Gbps SAS Expander storage significantly and effectively saves the cost for spaces within the 19” rack and in the cabinet room. Designed with 48 hot-swappable HDD trays, each tray is built with drive power, activity, and failure LED indicators to understand the status. What’s more, the NS390S-8028 has excellent enclosure management that monitors all components and features audible/visual alerts for fan, power supply failures and over-temperature. The LCD control panels are provided in the front of the enclosure to let administrators know immediately the condition of the unit and for extensive storage management.







Enclosure x 1
HDD Tray x 24
Power Cord x 2
Manual CD-ROM x1
Hard Disk Drive mounting screw x 96
Key for HDD tray x 2



SAS RAID Controller Validation

Brand NameModel
12G RAID/HBA
NS385S-8028ArecaARC-1883xARC-1883LP
NS385S-8028ATTOExpressSAS H1280
NS385S-8028LSIMegaRAID 9380-8e
