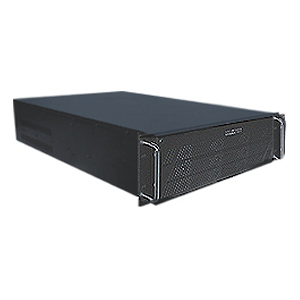

3U Rackmount Chassis EJ-3U6514-C Product Description
The 3U Rackmount Chassis EJ-3U6514-C feature the standard EIA RS-310C 19″ chassis’ which will meet all of your computing needs while optimizing the space on your rack. This sleek and rigid 3U chassis has a unique thermal cooling design that includes a front cold air intake tunnel and five cooling fans so the system stays cool while running at optimal levels. The EJ-3U6514-C can be used as web server, file server, NAS, SAN, or RAID server.
| Drive Bays | 1 x Slim CDROM, 1 x Slim FDD, 12 x Hot Swap PATA/SATA/SCSI 320 HDD Trays & 2 x 2.5″ HDD (Hidden) |
|---|---|
| Dimensions | 483(W) x 133(H) x 650(D) mm (19″ x 5.2″ x 25.6″) |
| Power Supply | (Rear Chassis Installation) 2U Single or Redundant Power with 200mm-300mm Depth (Optional) |
| Cooling Units | 4 x (90mm = 51CFM ea.) 1 x (60mm = 23.5CFM ea.) Heavy Duty Ball Bearing Fans |
| Construction | Heavy Duty Cold Rolled Electroplated Steel |
| Color | Black, Beige |
| System Boards | Dual Xeon, Dual Opteron, Pentium 4 Dual Pentium III based boards |
| Motherboard | Support ATX M/B (Max. to 12″ x 13″ EEB) |
| Expansion Slot | 7 x Full Length PCI Slots |
| Indicators | LEDs for Power ON/OFF, 2 x HDD Fan Temperature, & 3 x LAN Activity |
| Switches | Power On/Off, System Reset, Buzzer Reset |
| Door(s) | 1 x Removeable Front Door with 2 x Thumbscrews |
| Weight | 19.6kgs / 43.2 lbs |
| Cu. ft. | 5.3 |
| Carton Size | 818 x 594 x 309mm (32.2″ x 23.4″ x 12.2″) |
| Product Application | Web Server, NAS, SAN, RAID Server Media Broadcast Server, File Server |
