Features

  • Thunderbolt™3 interface with 40Gbps of throughput in both channels
  • Solid 4U 24-bay rackmount chassis
  • Supports twenty four (24) SAS/SATA (6G/3Gbps) HDD Trays

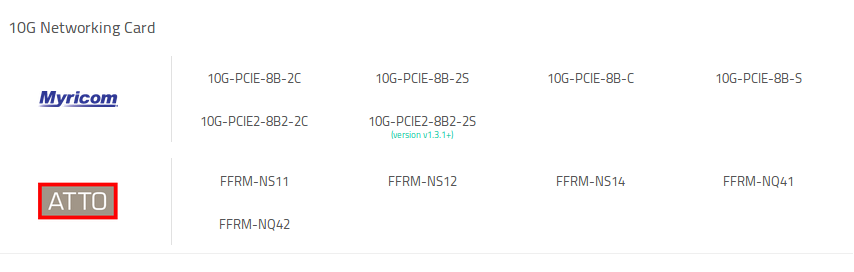

  • Supports up to 3 PCIe slots for RAID card, Fibre Channel HBA/10G networking card, and any standard PCIe add-on cards with Thunderbotl Aware’s Driver.
  • Individual key lock on each HDD tray for physical security

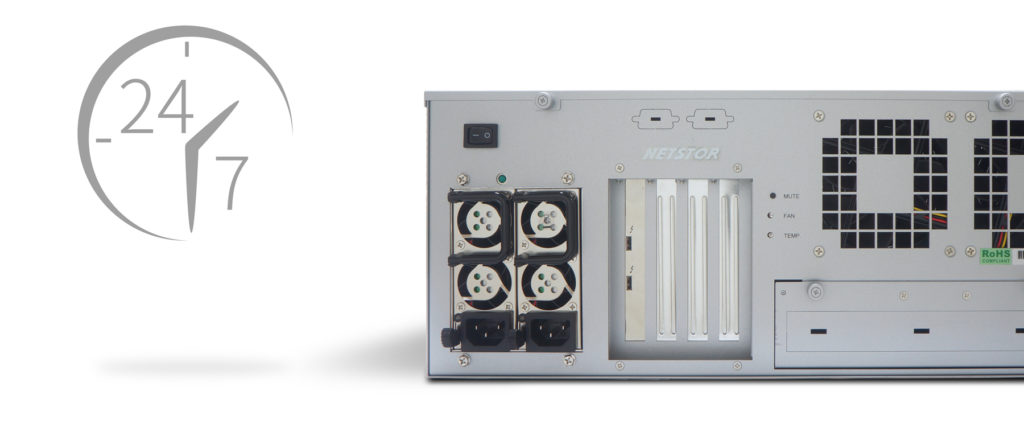

  • Server-grade redundant power supply for zero-down-time



NA381TB3 24 Bay Thunderbolt 3 Storage 4U and PCIe Expansion Product Description

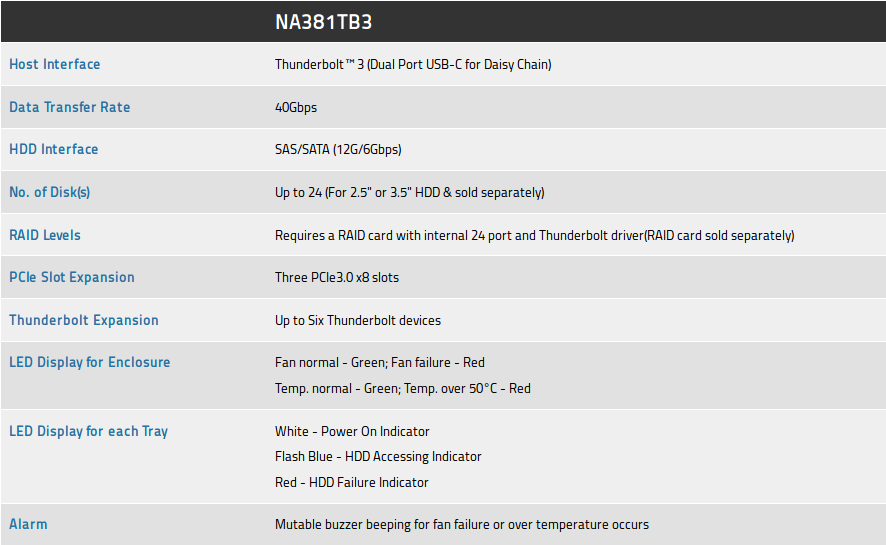

Host Interface Thunderbolt™3 (Dual Port for Daisy Chain)
Data Transfer Rate 40Gbps
HDD Interface SAS/SATA (6G/3Gbps)
No. of Disk(s) Up to 24 (For 3.5″ HDD & sold separately)
RAID Levels Requires a RAID card with internal 24 port and Thunderbolt driver(RAID card sold separately)
PCIe Slot Expansion Three PCIe3.0 x8 slots
Thunderbolt Expansion Up to Six Thunderbolt devices
LED Display for Enclosure Fan normal – green; Fan failure – red
Temp. normal – green; Temp. over 50°C – red
LED Display for each Tray White – Power On Indicator
Flash Blue – HDD Accessing Indicator
Red – HDD Failure Indicator
Alarm Mutable buzzer beeping for fan failure or over temperature occurs

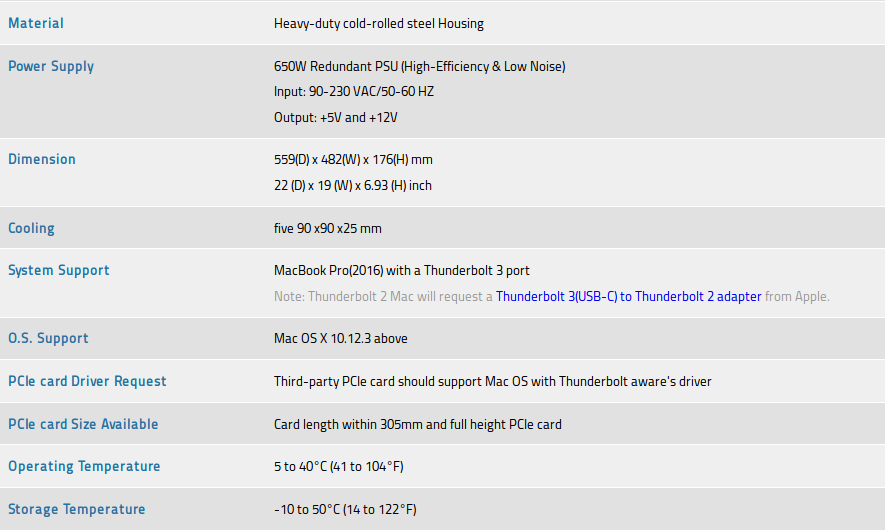

Material Heavy-duty cold-rolled steel Housing
Power Supply 650W Redundant PSU (Server-grade)
Input: 90-230 VAC/50-60 HZ
Output: +5V and +12V
Dimension 559(D) x 482(W) x 176(H) mm
22 (D) x 19 (W) x 6.93 (H) inch
Cooling Five 90 x90 x25 mm

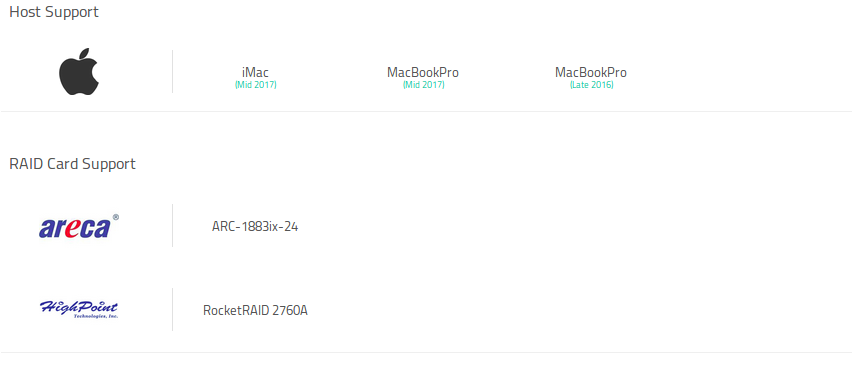

System Support MacBook Pro(2016) with a Thunderbolt 3 port
Note: Thunderbolt 2 Mac will request a Thunderbolt 3(USB-C) to Thunderbolt 2 adapter from Apple.
O.S. Support Mac OS X 10.12.3 above
PCIe card Driver Request Third-party PCIe card should support Mac OS with Thunderbolt aware’s driver
PCIe card  Size Available Card length within 305mm and full height PCIe card
Storage Temperature 5 to 40°C  (41 to 104°F)
Operating Temperature -10 to 50°C  (-14 to 122°F)
Relative Humidity 20 to 80% (non-condensing)

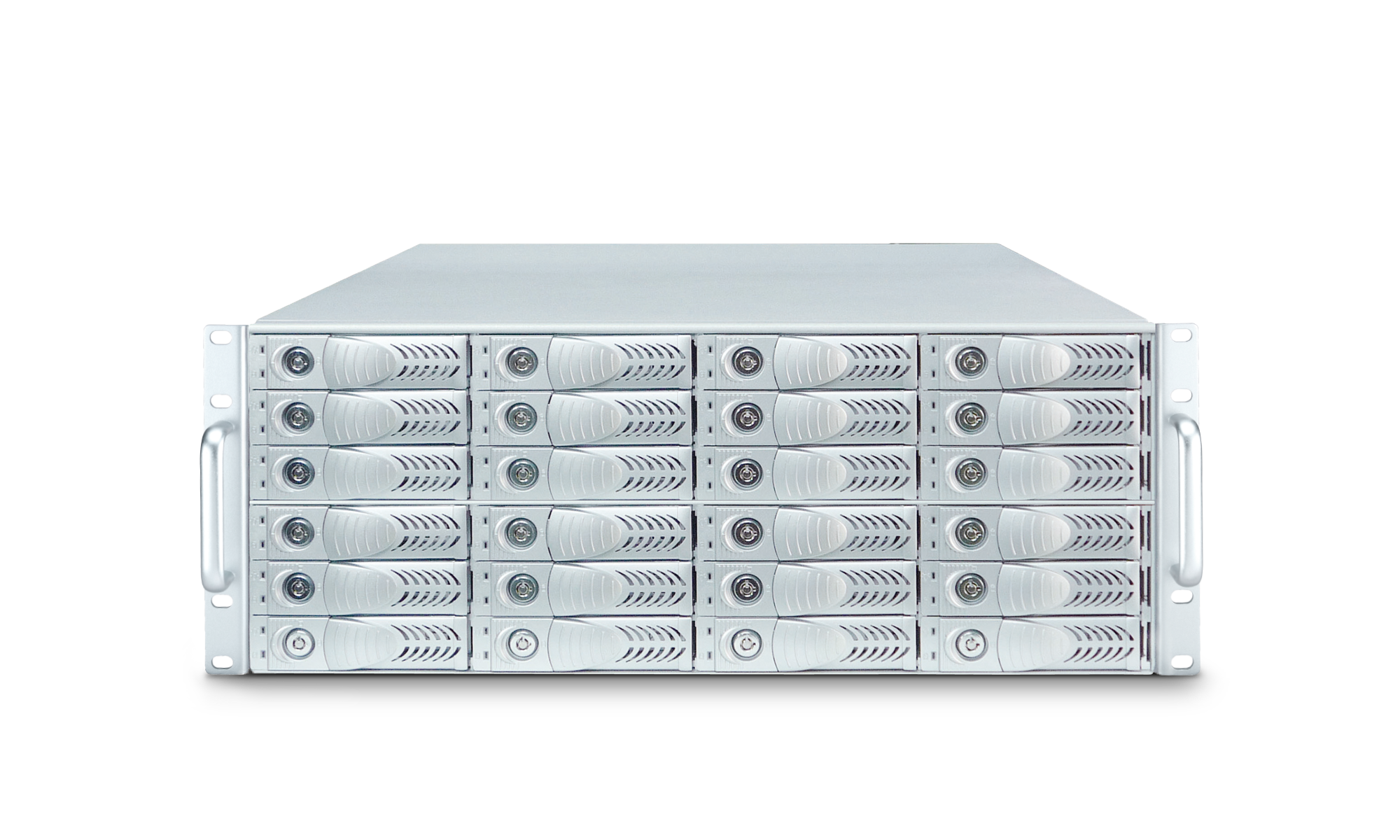

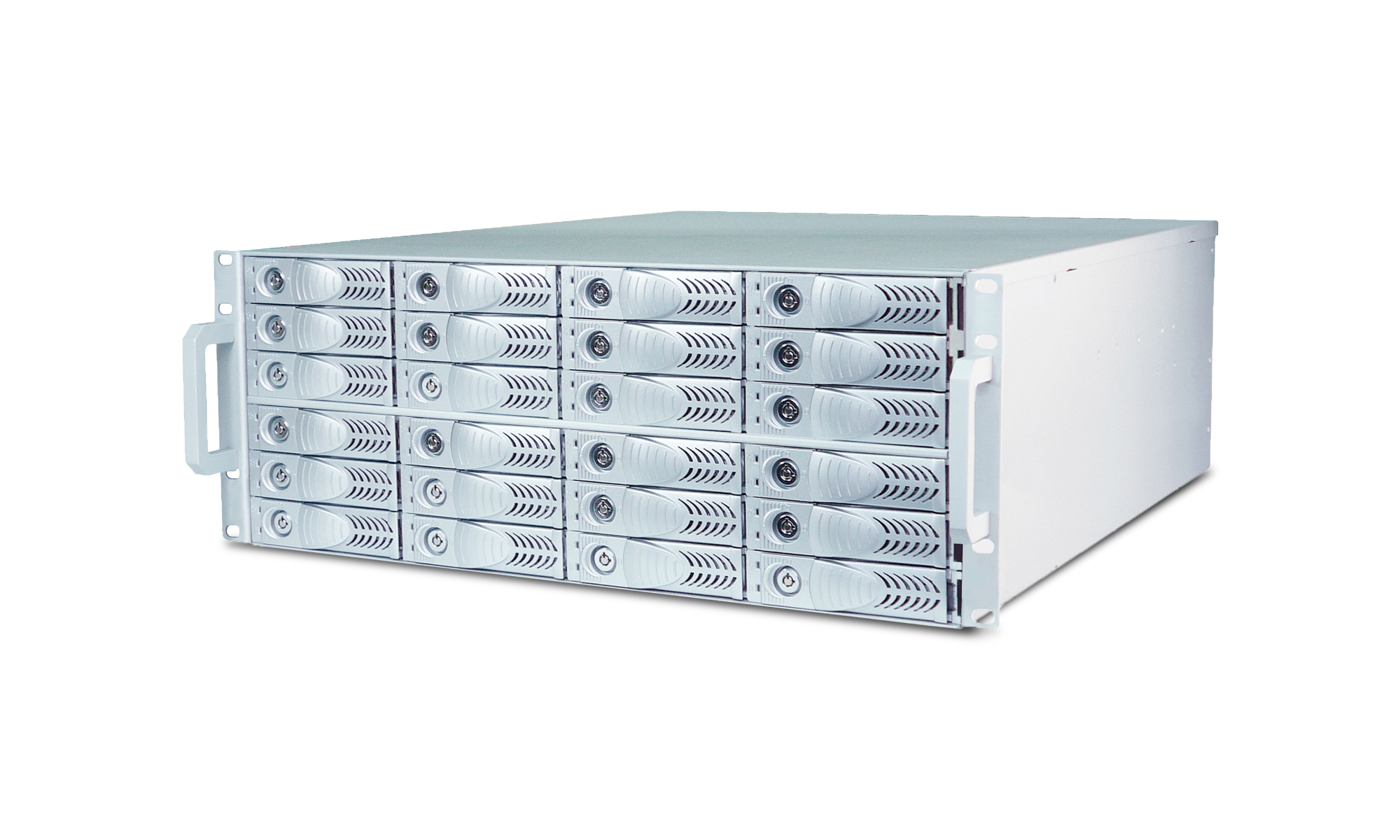

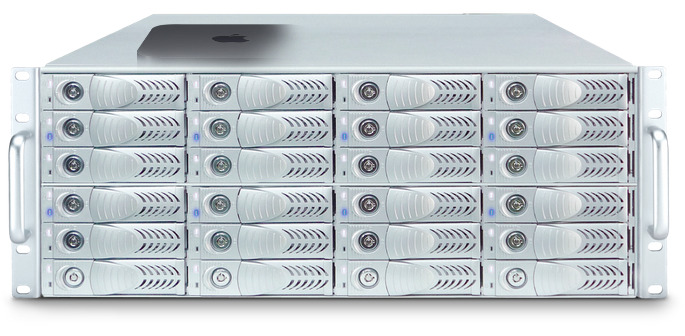

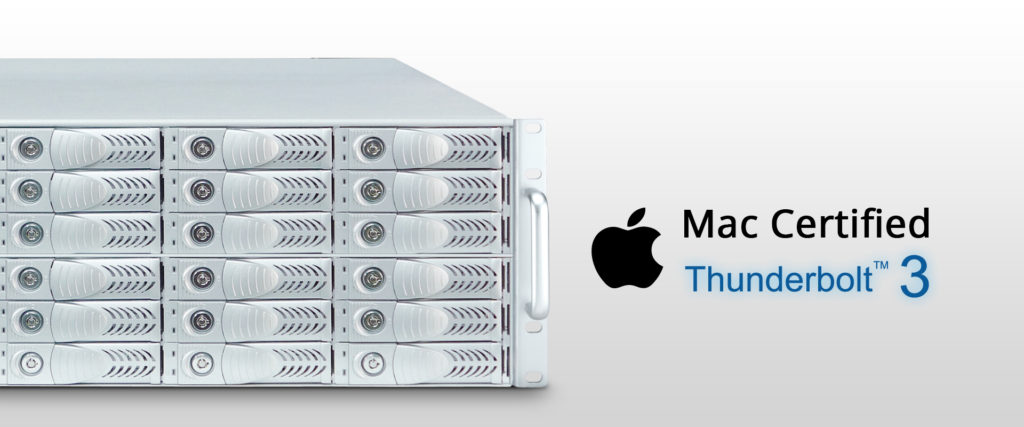

4U, 24 bay Thunderbolt 3 Storage and PCIe Expansion

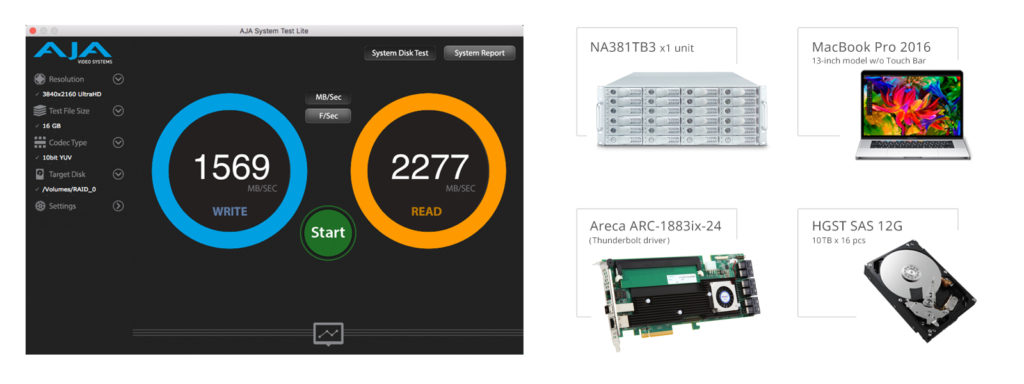

The Thunderbolt 3™ NA381TB3 is designed to give you higher capacity and even greater speeds. Features an expertly designed 4U 24-bay storage chassis with support of twenty-four hot-swappable drive trays. As each tray attached with 10TB HDD, total usable storage will come to 240 TB capacity. Additionally, through enclosure’s lightning-fast Thunderbolt™ 3 interface, the ultra large storage is ensured to have higher data transfer bandwidth of up to 2750 MB/s for all kinds of data archiving and real-time editing.
mac_companion_381tb3

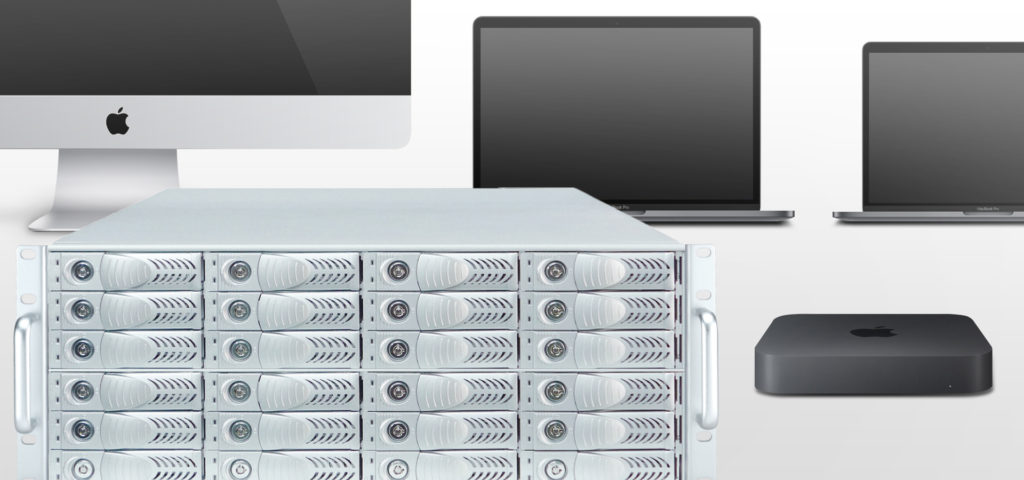

The Ideal Companion to Thunderbolt 3 Mac

Designed for use Thunderbolt™ 3 40Gbps high-bandwidth for the fastest ever data storage access and operation with multiple professional PCIe cards, which meant to be the perfect companion to your empowered Thunderbolt Mac or workstation.

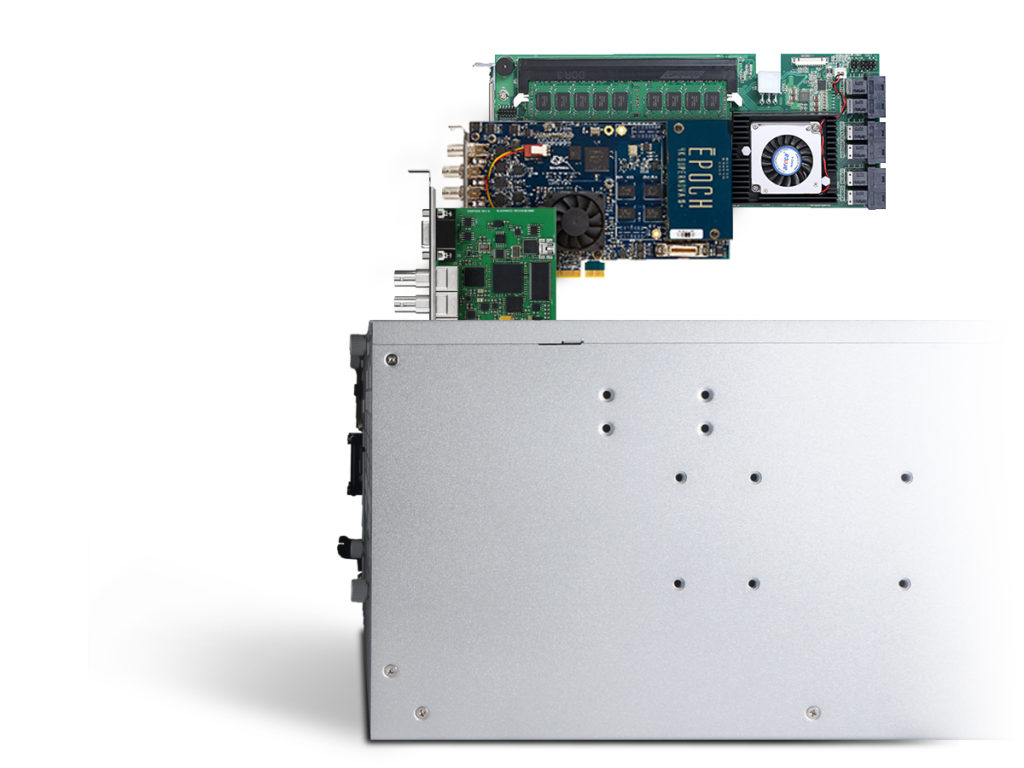

Expansion for up to 3 PCIe Cards

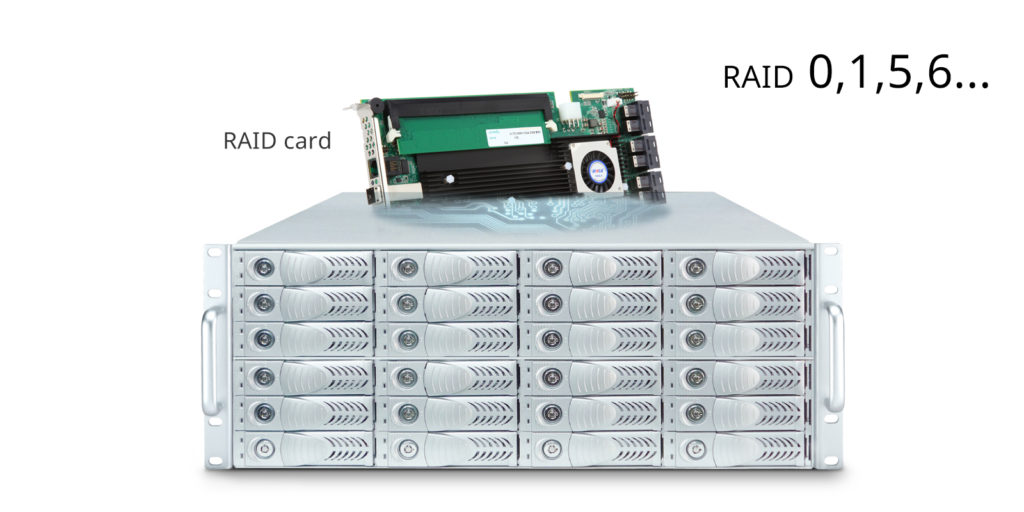

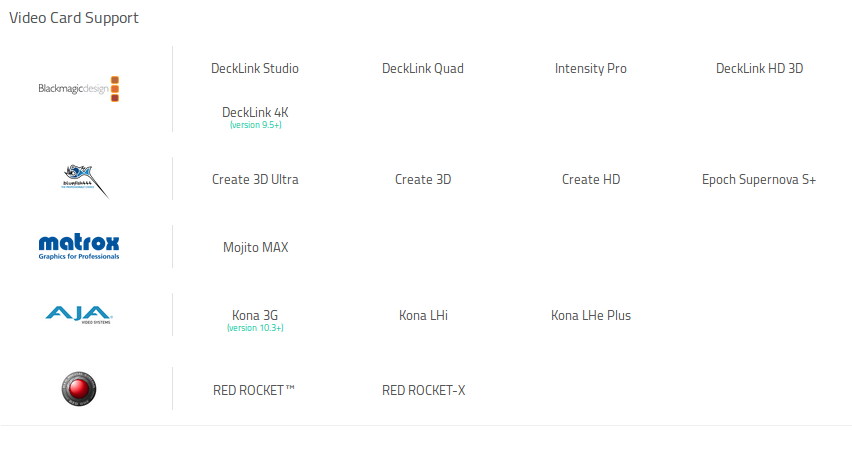

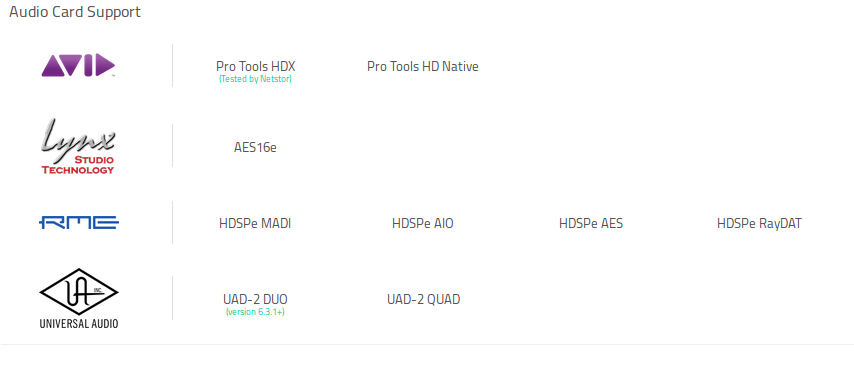

Provides three PCIe 3.0 slots within the storage chassis that allow the users to make an easy expansion of varied specialty PCIe cards to the Thunderbolt 3 Mac. Except the necessary RAID adapter card to be added, the professionals can still choose to attach two more pro cards such as video capture, video transcoding, audio accelerator, network card and so on in the NA381TB3 to add extra performance to Thunderbolt Mac.

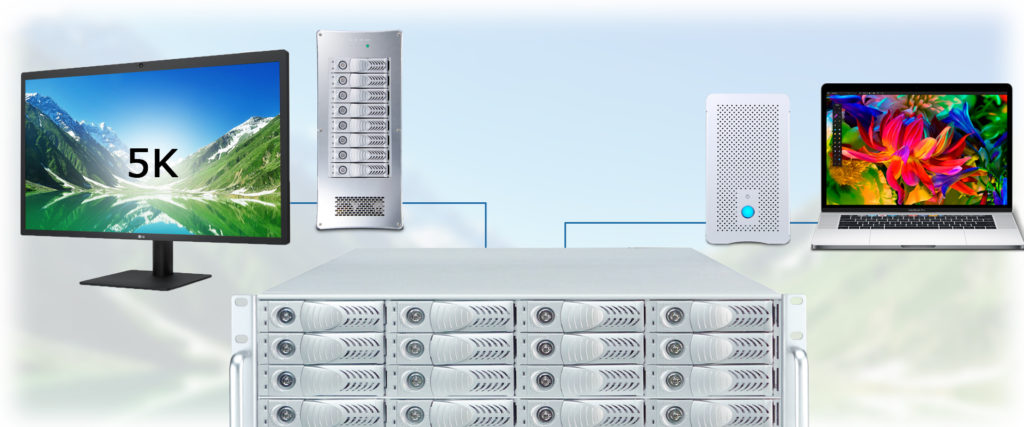

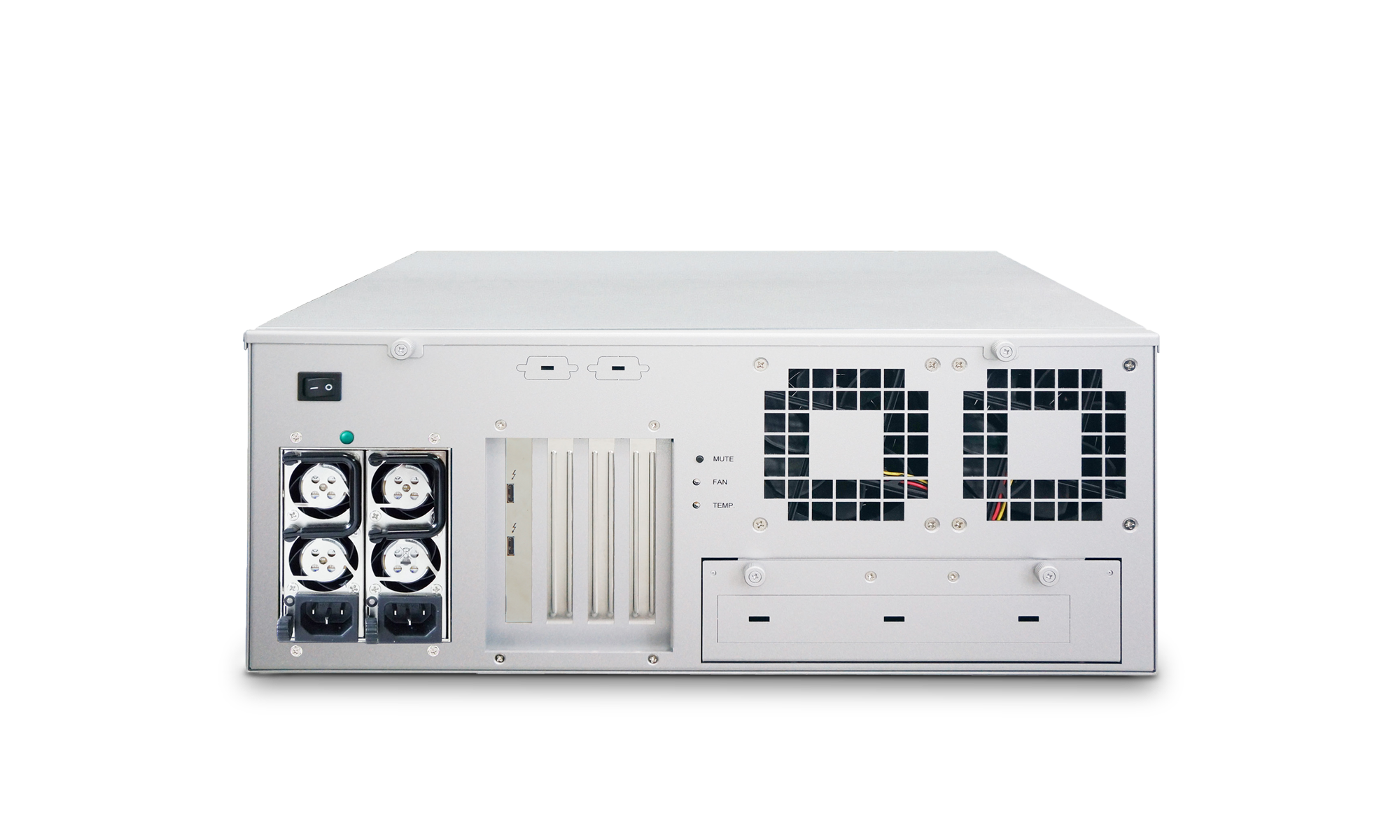

Dual Thunderbolt 3 Ports- The USB C That Does It all
By the two Thunderbolt™ 3 (USB-C) ports, users can have the first port to computer while the second port to daisy-chain of up to five additional Thunderbolt peripheral devices with two 4K displays or one 5K display being positioned at the very end of the chain. USB 3.1 Gen 2 (10Gbps) is also supported: connecting one USB device to the second port for application is available.

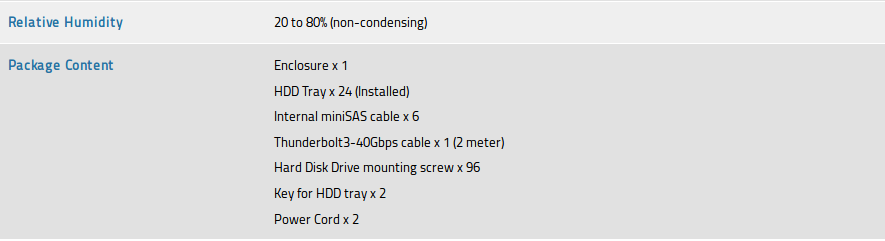

Enclosure x 1

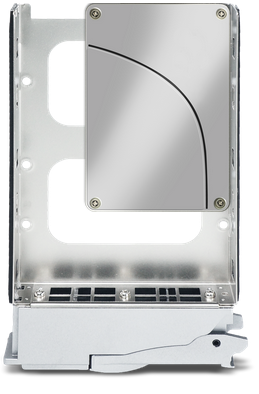

HDD Tray x 24 (Installed)
Thunderbolt cable x 1 (2 meter)
Manual CD-ROM x1
Hard Disk Drive mounting screw x 96
Key for HDD tray x 2
Power Cord x 2

Model No. Description

NA381TB3

4U 24 bay Thunderbolt™ 3 to Combo SAS/SATA JBOD and PCIe Expansion Chassis, with redundant 650W Power Supply, One Thunderbolt 3 active 2 meter cable
BARC1882IX24 Areca’s ARC-1882ix-24, internal 24 port SAS/SATA RAID Adapter, Dual Core RAID-on-Chip 800MHz processor, Supports RAID level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD, with Thunderbolt aware driver
