• Provides the most high-speed USB3.1 Gen2 Type-C interface
  • Supports up to 2* SATA 6 Gbps 3.5 or 2.5-inch HDD/SSDs
  • Hardware RAID Chip providing RAID mode 0, 1, JBOD, SPAN
  • Aluminum housing, anodized surface, benefits for cooling and durability
  • Adjustable fan speed for self-contained ventilation
  • Individual key lock of each HDD tray for physical security
  • Small, compact, and light weight

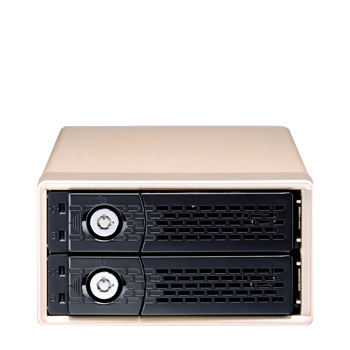

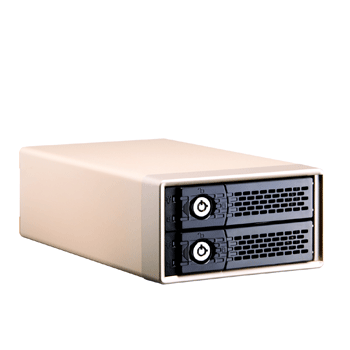

NA460C 2-Bay RAID Subsystem Product Description

Netstor mini Dual NA460C is a 2-bay storage device not only with a full range of features, functions and easy operation, but also designed slim and tiny in size. It’s equipped with a built-in hardware RAID processor supporting most commonly used four modes of RAID 1, RAID 0, Span, and JBOD. With its RAID 1 mirroring, users have the best data protection and highest reliability for their storage. In addition, the world’s first user-friendly RAID mode LED indicators for dual bay are thoughtfully designed on the storage enclosure to allow end users to easily learn the present RAID level setting.

The latest USB type-C interface of NA460C allows for reversible plug orientation with no need to be concerned about the interface’s plugging on upside-down. The storage’s USB-C supports USB 3.1 Gen2 and data throughput up to 10Gbps, ideal for even two lightning-fast SSDs in storage enclosure in support of high-bandwidth data transfers, enabling greater flexibility for the digital workflows. In connection with the novel USB-C of NA460C, the dual-bay storage genuinely supports two SATA 6Gb/s drives due to the built-in native SATA III RAID chip.

With the considerate design to the drive tray, both 3.5” HDDs and 2.5” drives/SSDs are compatible and can be used in the same NA460C tray for application. For the accommodation of drive, up to 8TB HDD per tray is supported. Therefore, according to the different contexts and working requirements, professionals can either use hard drives for capacity, or target at transmission by utilizing the SSDs in the NA460C drive trays. Users do not even have to worry about the heat generated by the HDDs as the storage provides a dedicated, ultra-low noise cooling fan for hard drives heat dissipation.

Host InterfaceUSB3.1 (Gen2, Type-C)
HDD InterfaceSATA 6.0Gb/s
No. of Disk(s)Up to 2 (HDD/SSD sold separately)
LED Display for TrayPower on- white
HDD Access- flashing blue
HDD Failure – Red
LED Display for EnclosurePower on LED – white
FAN normal – green; fail – red
TEMP normal – green; over 50°C – red
Dimension205(D) x 120(W) x 65(H) mm
8(D) x 4.7(W) x 2.56(H) inch
MaterialPlastic and Aluminum alloy
Power SupplyPower Adapter
AC Input: 100–240V, 50-60Hz
DC Output:+12V/5A, 60W
CoolingOne 40 x 40 x 10 mm Cooling Fan
O.S. supportWindows, OSX
Weight0.9 Kgs/ 2 lbs (w/o Hard Disk)
Operating Temperature0 to 40°C (32 to 104°F)
Storage Temperature-10 to 50°C (-14 to 122°F)
Relative Humidity20 to 80% (non-condensing)

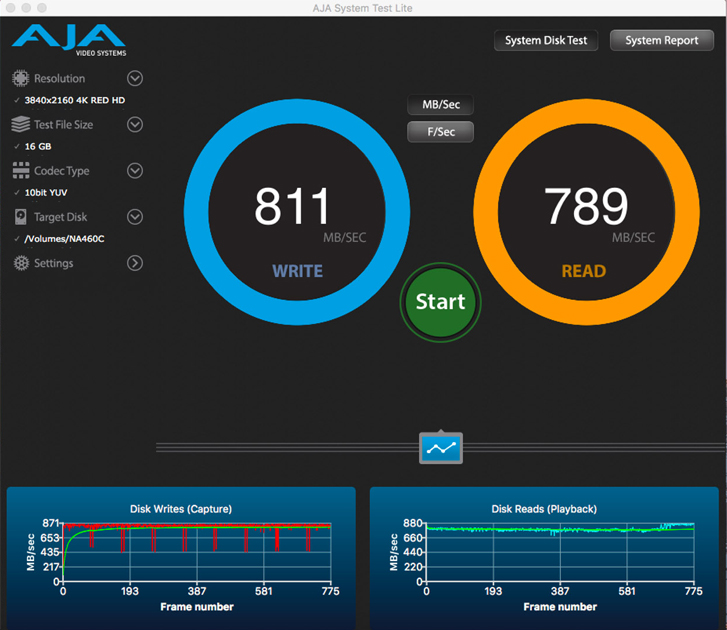

Performance Benchmark



Host Connectivity


Enclosure x 1
HDD Tray x 2
USB 3.1 Type-C to Type-C Cable, 1M x 1
Power Adapter x 1
Hard Disk Drive mounting screw x 8
Key for HDD tray x 2


Model No.Description
NA460C2 bay USB 3.1(Gen2, Type-C) RAID Storage, Gold color, with 60W power adapter, USB Type-C to Type-C cable.
ANNA920C0340Spare Black Color Tray with Retail Package for NA460C
