• Thunderbolt™3 interface with 40Gbps of throughput in both channels
  • Built-in hardware RAID controller provides uncompromised hardware RAID levels
  • Supports up to 4 SAS/SATA (6G/3Gbps) HDD Trays for both 2.5″ and 3.5″ HDD Trays
  • Capable of delivering data transfer speeds up to 2750 MB/s
  • Daisy-chain up to five additional Thunderbolt peripheral devices including 4k and 5k displays
  • Features Stylish Aluminum Housing with a Solid Metal Structure

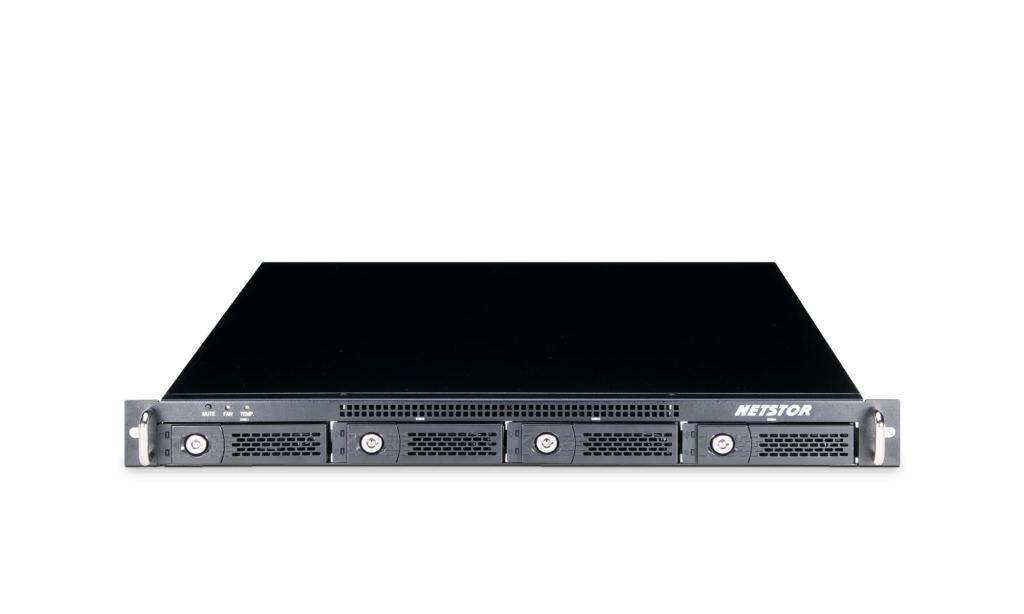

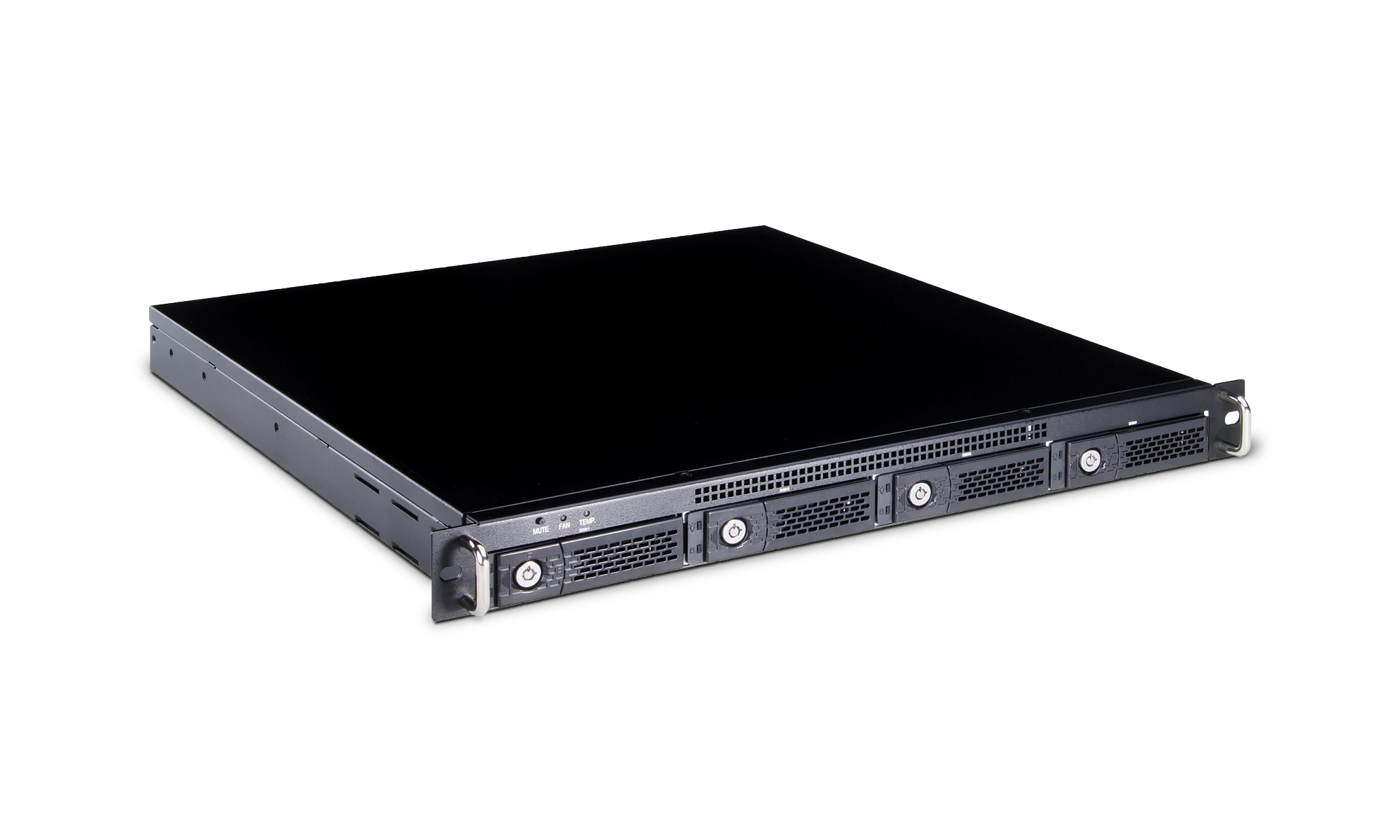

The Enterprise 1U Rackmount Thunderbolt™ 3 Storage supporting Transportable Rack Application

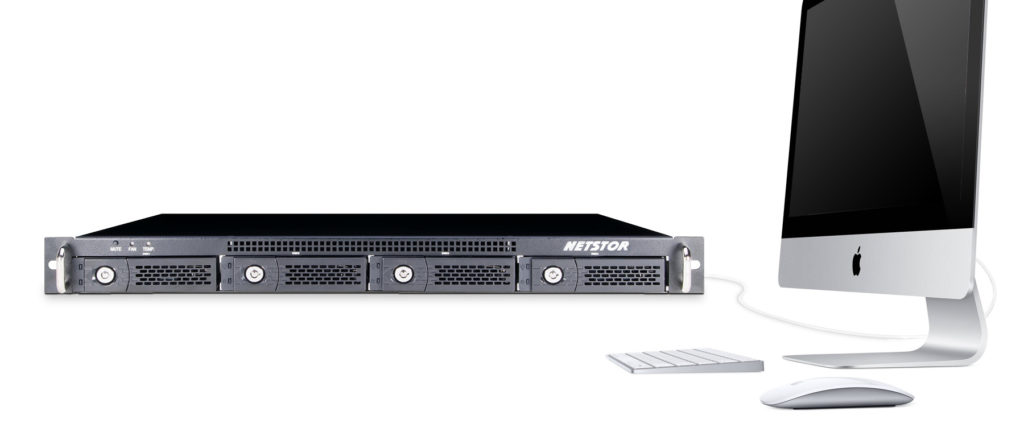

Through the utilizing and implementing of Netstor NS370TB3 19” rackmount storage to your system, you are rest assured your data stored on the unit are given the finest data protection with the highest data transfer speed to the thunderbolt3 host computer or workstation. Moreover, the storage unit is designed to be aligned easily with the 19” transportable rack or ordinary rack cabinet since the setup of the system is effortless and straightforward via the easy connection of Thunderbolt™ 3 between host and enclosure.

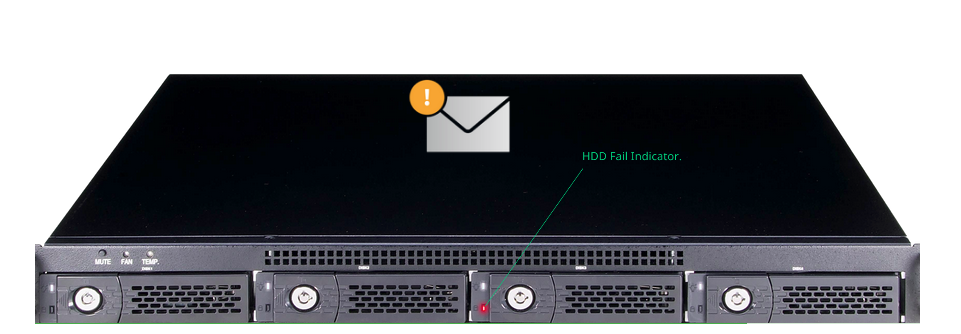

Premium Solution with Event Notification and HDD Failure Indication

It’s simple for the MIS staff and end-user to set up the NS370TB3 with system. Through Netstor unit’s web GUI program, not only the hardware RAID can be set up conveniently, but the event notification by e-mail can also be achieved. As a result, when a component or an HDD fails, the storage will alarm and will send an event notification by email to the end-users at once to let them know the situation right away. Furthermore, the storage has HDD failure indication with SGPIO support; as any HDD fails, the red LED indicator on the drive tray will light to allow the users to correctly find the faulty HDD for drive replacement and RAID rebuilding.

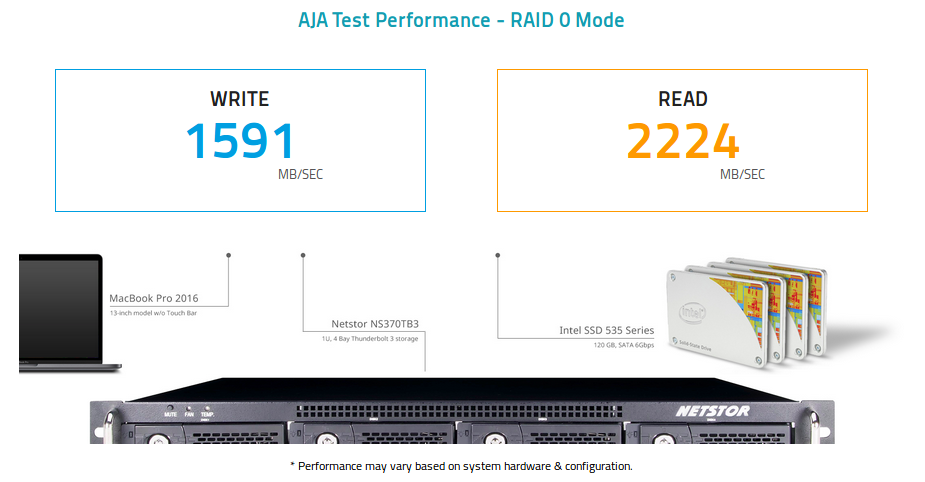

Large Storage Capacity & Performance

Designed 4-bay rackmount storage with support of up to four hard drives and delivering extraordinary, optimized 40Gbps performance and achievement, the Netstor unit features Thunderbolt™ 3 interface capable of providing data transfer rates up to 2750 MB/s, 2x times the Thunderbolt 2, for all kinds of data storage and file archiving.

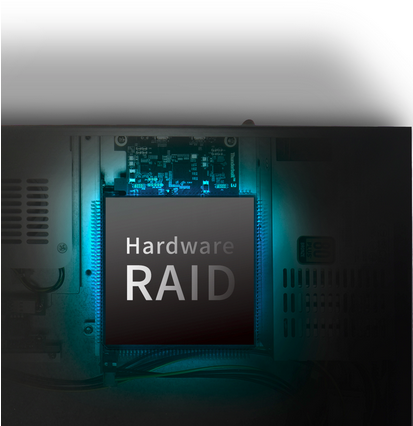

The Uncompromised Hardware RAID Protection

Built-in hardware RAID controller providing uncompromised hardware RAID levels including RAID 0, 1, 10, 3, 5, 6, 30, 50, 60 for all applications with maximum protection and utmost performance.

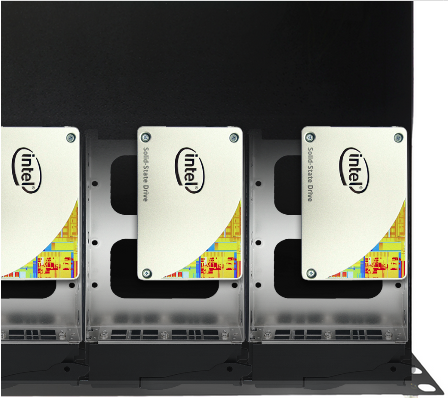

Drive Tray Supporting both 2.5”/SSD and 3.5”

The drive tray from the Thunderbolt™ 3 rackmount storage has been thoughtfully designed to work with both SSD/2.5” HDD and 3.5″ hard drive for varied professionals with diverse demands on speed or immense storage capacity.

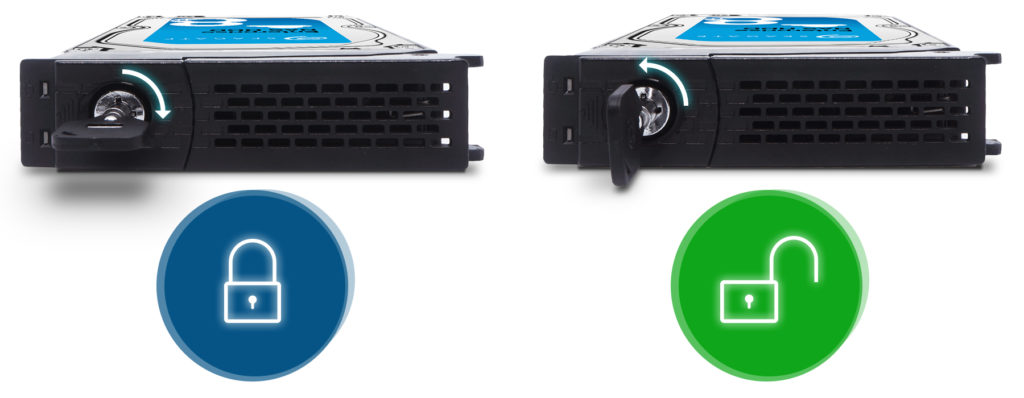

HDD Tray Keylock with Top Physical Security

By the considerately designed keylock for each HDD tray within the storage enclosure, the keylock security helps prevent the MIS staff and end-users from pulling the wrong HDD out of the chassis mistakenly.

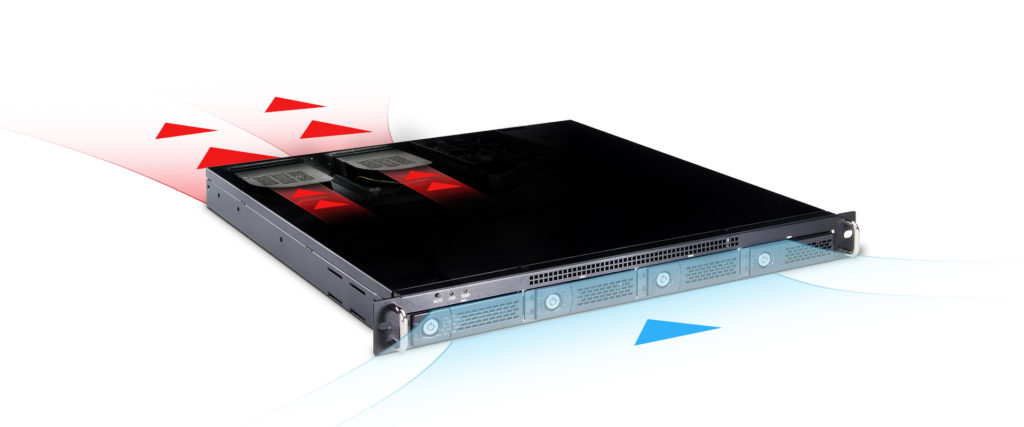

Excellent Airflow Ventilation Framework

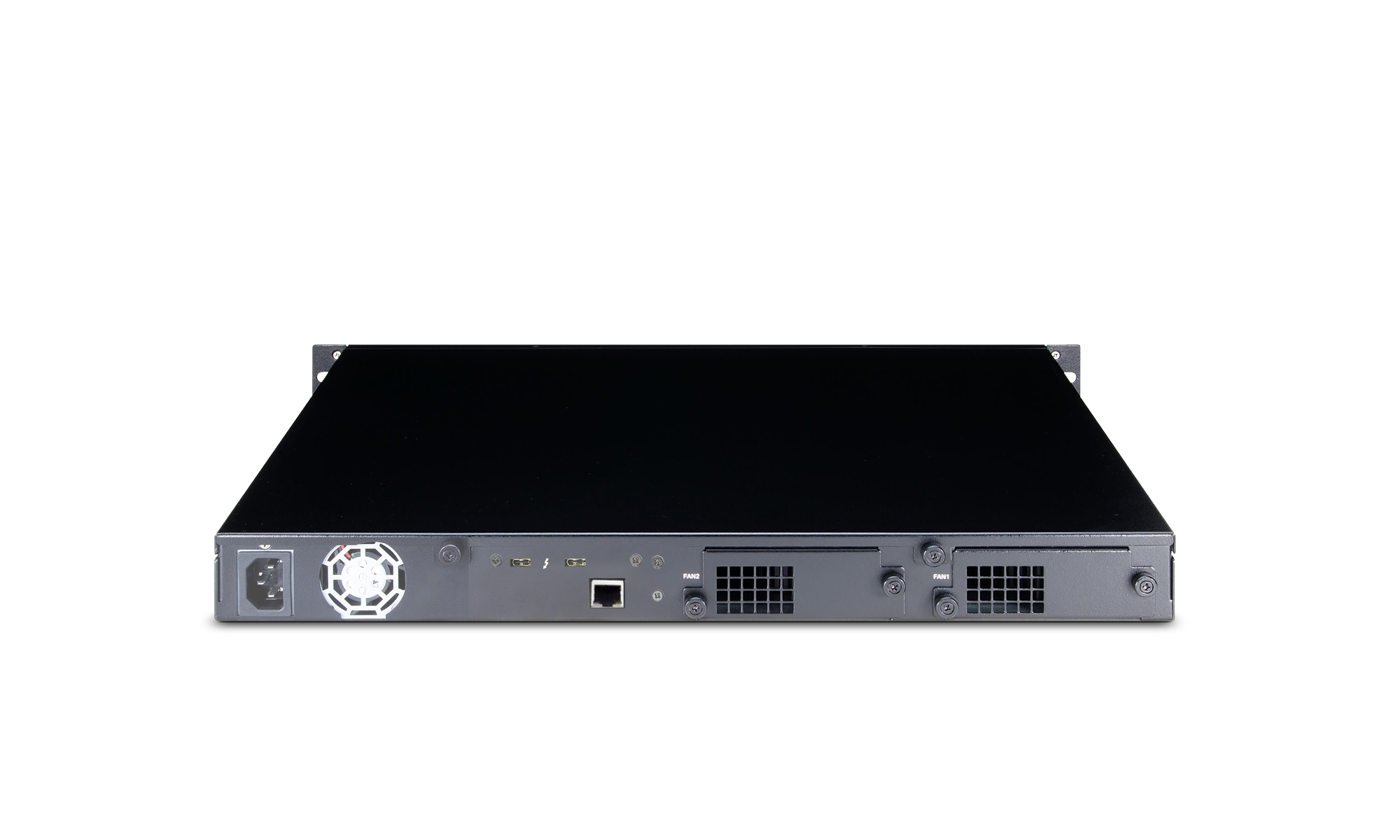

Designed with two rear hot-swappable blower fans, the well-devised ventilation architecture does genuinely allow the warm air to be smoothly ventilated out of the enclosure in the company of ultra low dBA sound level to suit all kinds of application.

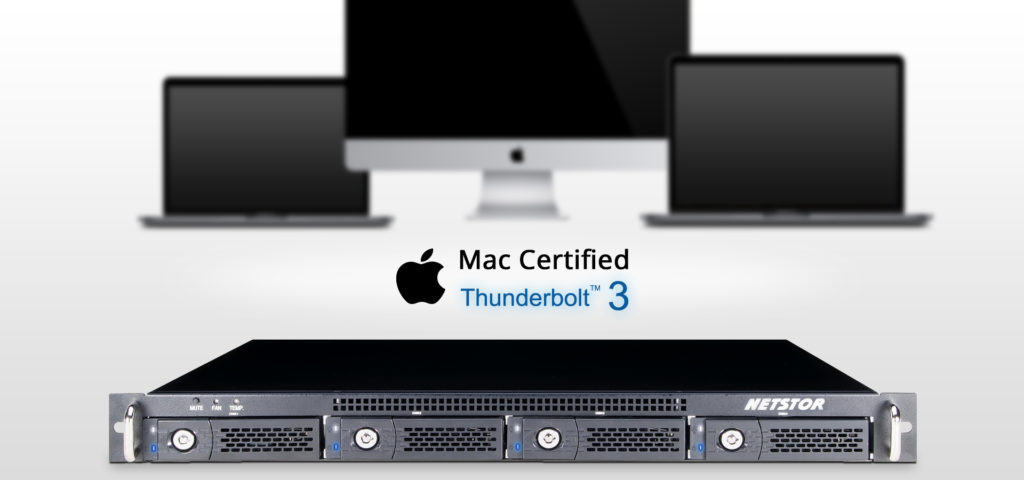

Mac certified. Works with All Series of Thunderbolt Mac

The Thunderbolt™ 3 four-bay NS370TB3 RAID storage has passed Apple’s strict certification testing process and is Mac certified, which supports and works with all series of Thunderbolt 3 and Thunderbolt 2 Mac.

(Note: An additional Apple adapter will be required when working with Thunderbolt 2 Mac)




Specifications

Host Interface:‧ Thunderbolt™3, USB-C Interface ‧40Gbps High Bandwidth
Controller & RAID Feature:‧ RAID-on-Chip Processor ‧ 1GB on-board SDRAM with ECC protection ‧ Supports RAID Level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD ‧ Multiple RAID Selection ‧ Online Array Roaming ‧ Online RAID Level/Stripe Size Migration ‧ Online Capacity Expansion and RAID Level Migration Simultaneously ‧ Greater than 2TB Capacity per Disk Drive Support
Storage:‧Supports up to 4 SAS/SATA 3Gb/s or 6Gb/s 3.5″ HDDs (Hard Disks Sold Separately)‧Heavy-Duty Cold-Rolled Steel Housing ‧Thunderbolt3 Port for Daisy-chain up to 6 Devices ‧Individual Key lock of each HDD tray for physical security
Monitors/Indicators :‧Web base GUI RAID Manager for Remote Management ‧SMTP Support for Email Notification ‧SNMP Support for Remote Manager ‧FAN fail LED ‧Over Temperature LED ‧HDD fail LEDs
Fan Cooler:‧Two 75x 75x 29mm Blower (rear)
Power Supply:‧Server-grade 250W Single Power Supply ‧Low-noise Design ‧Universal: 100~240VAC, 50/60Hz
Environmental Requirements: ‧Operation Temperature: 5℃ ~ 50℃ ‧Storage Temperature: -20℃ ~ 70℃ ‧Operation Humidity: 10% ~ 80%, non-condensing ‧Storage Humidity: 5% ~ 95%
Dimension:‧460(D) x 482(W) x 44(H) mm ‧18.1(D) x 19(W) x 1.73(H) inch
Operating System:‧ Mac OS X 10.12.3 above ‧ Windows 10/8
Scalibility:‧Thunderbolt3 port for daisy-chain up to 6 devices
  • Enclosure x 1
  • HDD Tray x 8 (Installed)
  • Thunderbolt cable x 1 (2 meter)
  • Manual CD-ROM x1
  • Hard Disk Drive mounting screw x 32
  • Key for HDD tray x 2
  • Power Cord x 1
Model No.Description

NA341TB3

2U 8 bay Thunderbolt3 SAS/SATA RAID Subsystem, Dual Thunderbolt3 Ports for Host and Daisy-chain, with Single 400W Power Supply, One 2 meter Thunderbolt3 cable
ANNA920C0340Black Color Short Tray
ATSRFR28TW28″ Friction Slide Rails
